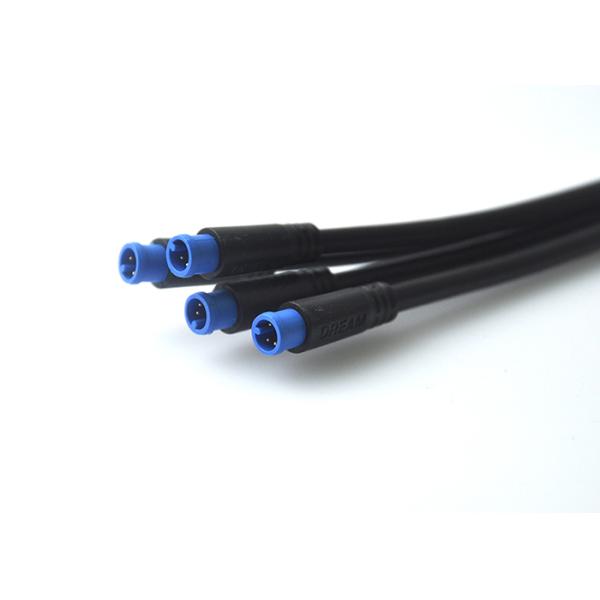

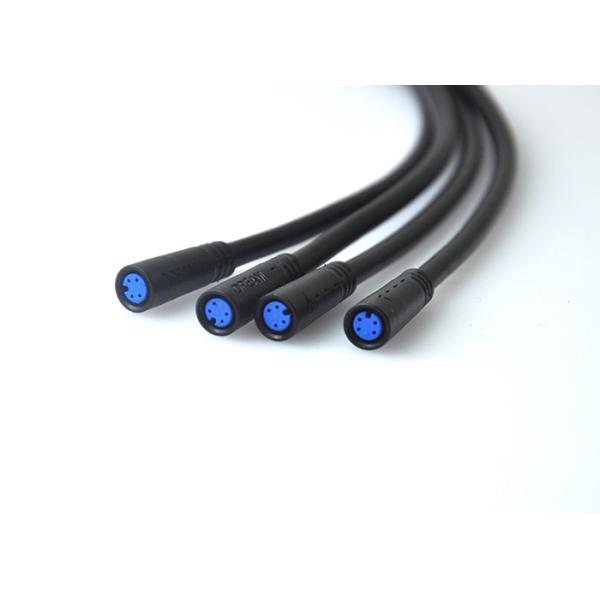

2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
Specifications
Brand Name :
Realeader
Model Number :
DR-A09
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
100000pieces/Month
Delivery Time :
5-8 working days
Packaging Details :
25*20*16CM
Product :
waterproof connectors
Pins :
2PIN~6PIN
Working temperature :
PVC: 0℃~ +80℃; TPU: -40℃~ +125℃
Certificate :
ISO9001
Insulator Material :
PA66+30% fibre
Contact Resistance :
10 MΩ
Description

2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector

1. Product Description

  • Male Size : Φ7.41*24.1mm
  • Female Size : Φ7.41*23mm
  • Male Pin Diameter : Φ0.6 mm
  • Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)
  • Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)
  • External Material : PVC, TPU
  • Over-Mold Material : PA66
  • Insulator Material : PA66+30% fibre
  • Wire Specifications : 28AWG---22AWG
  • Wire Diameter : Φ3.0-Φ4.0
  • Protective Level : IP65
  • Temperature Environment : PVC: 0℃~ +80℃; TPU: -40℃~ +125℃
  • Plug/Unplug Durability : 1000 times

2. Widely used the following fields:

  • Electric bike accessory
  • Integrated lines
  • Signal lines
  • Smart sanitary ware

3. Data Sheet

Contact Cores 2PIN/3PIN/4PIN/5PIN/6PIN
Male Pin Diameter Φ0.6 mm
External Material PVC, TPU
Insulator Material PA66+30% fibre
Wire Specifications 28AWG---22AWG
Protection Level IP65
Contact Resistance 10mΩ
Insulation Resistance 100MΩ
Rated Current​ 2A

4. Questions & Answers

Q1: Can I have a sample for test?

Yes, Sample order is welcomed, the lead time will be 3-5 working days acoording to your request.

Q2: How about the lead time?

Sample order need 3-5 working days, mass order need 15-20 working days.

Q3: Do you have certificates about the waterproof connectors?

Yes, we have gotten UL, CE for all waterproof connectors.

Q4: What payment can you accept?

We are appreciate that you can pay via T/T, and of course you can pay by L/C, Western Union, Paypal.

Q5: Is that OK to print our Logo on your product and package?

Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you.

5. Product Details

2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector

2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector

2 Pin 3 Pin 4 Pin Cable Waterproof Connector M6 Cable Connector
