Product Description

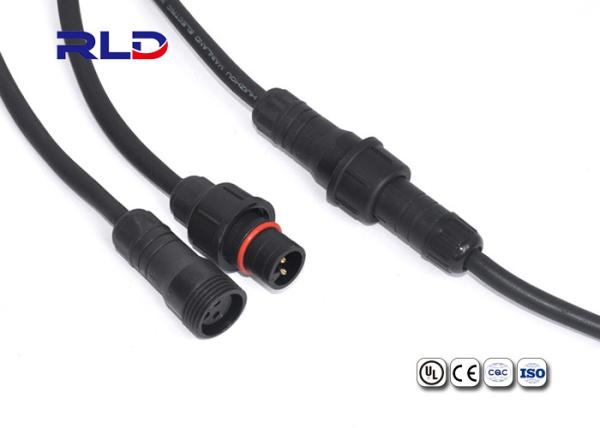

This Waterproof IP67 Connector owns nut type docking assembly. It is simple to use and convenient to install. The waterproof connectors of our company is the general products of Guangdong Province Semiconductor Lighting Bench marking System Enterprise. The material of products in nylon fiber grealy improves product durability and safety. It is Mainly used for LED lighting power cables' connection and any other power cables.
Details:
Male Size : Φ15.5*45mm
Female Size : Φ18.3*45.8mm
Contact Cores : 2pin / 3pin
Male Pin Diameter : Φ2.35mm
Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)
Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)
Over-Mold Material : PA66
Insulator Material : Nylon, Temperature-resistance 260℃
Wire Specifications : 20AWG---14AWG
Wire Diameter : Φ4.0-Φ9.0
Protective Level : IP68
Working temperature : -40℃~ 125℃
Rated Current : 10-12A
Rated Voltage : 250V
Test Voltage : 1000V~1500V
Contact Resistance : 10 MΩ
Insulation Resistance : 200 MΩ
Data Sheet
Connecting Mode | Screw Threaded |
Cable Specification | 1.5mm2 / 20 - 14AWG |
Cable Range | 0-9mm |
Rated Current | 10A |
Rated Voltage | 250V AC |
Protection Level | IP67 |
Contact Resistance | 10mΩ |
Insulation Resistance | 200MΩ |
Operating Temperature | PA66 : -10℃~+105℃ |
Why Choose Us?
1. We are the leading Manufacturer in the waterproof connector field in China.
2. 100% QC inspection before delivery .
3. Best quality & best service with a competitive price.at the same price,our quality is the best and at the same quality,our price is the best.
4. Advanced production equipment & strong technical strength ensure high quality and competitive products.
5. We are powerful factory in China and our products are exported to many countries and a lot of good review from customers.
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
