2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
2Pin Waterproof Outdoor Lighting Connectors For Led Lighting
Specifications
Brand Name :
Realeader
Model Number :
DR-D15
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
100000pieces/month
Delivery Time :
5-8 working days
Packaging Details :
25*20*16CM
Product :
Waterproof Outdoor Lighting Connectors
Pins :
2pin/3pin
Male Pin Diameter :
Φ1.5mm
Insulator Material :
Nylon, Temperature-resistance 260℃
Wire Specifications :
20AWG---14AWG
Wire Diameter :
Φ4.0-Φ9.0
Description

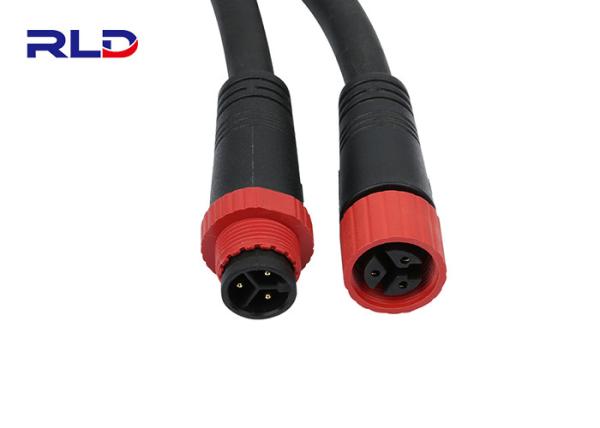

2Pin Waterproof Outdoor Lighting Connectors For Led Lighting

Features

1. Screw threaded assembly, simple in using, convenient in installation;
2. Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, anti-explosion, and corrosion;
3. Products are in line with the National Semiconductor Industry Alliance, CSA016 standards

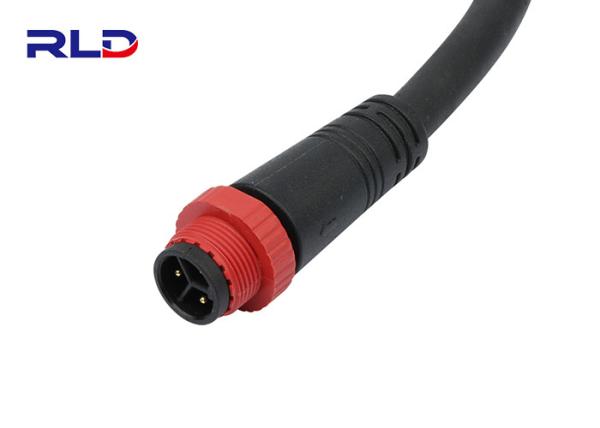

4. The male plug could match our DR-T08.

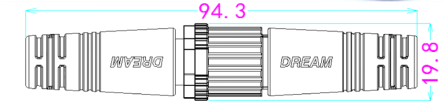

Male Size Φ19.8*94.3mm
Female Size Φ19.8*94.3mm
Contact Cores 2PIN/3PIN
Male Pin Diameter Φ1.5mm
Male Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Female Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Insulator Material Nylon, Temperature-resistance 260℃
Wire Specifications 20AWG---14AWG

Other Parameters

Operating Temperature : PA66 : -40℃~+105℃

Plug/Unplug durability : 1500times

Connection Mode : Screw Threaded

Parameters

Over-Mold Material PA66
Insulator Material PA66+30% Glass Fiber
Wire Specifications 20AWG---14AWG
Wire Diameter Φ4.0-Φ9.0
Protective Level IP68
Working temperature -40℃~ +125℃
Rated Current 10A-15A
Rated Voltage 250V

FAQ

Q1 : Can I have a sample for test ?

Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .

Q2 : How about the lead time ?

Sample order need 3-5 working days , mess order need 15-20 working days .

Q3 : Do you have certificates about the waterproof connectors ?

Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .

Q4 : What payment can you accept ?

We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .

Q5 : Is that OK to print our Logo on your product and package ?

Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .

Q6 : Are you a factory ? Where is your factory ?

Yes , we are a factory , we located in Shenzhen .

Q7 : Do you accept OEM & ODM service ?

Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.

Q8 : How much does it cost to my country ?

The freight will be given by fright company based on your Gross weight and CBM .

Q9 : Can I order 100m cable for 1pc waterproof connector ?

Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
