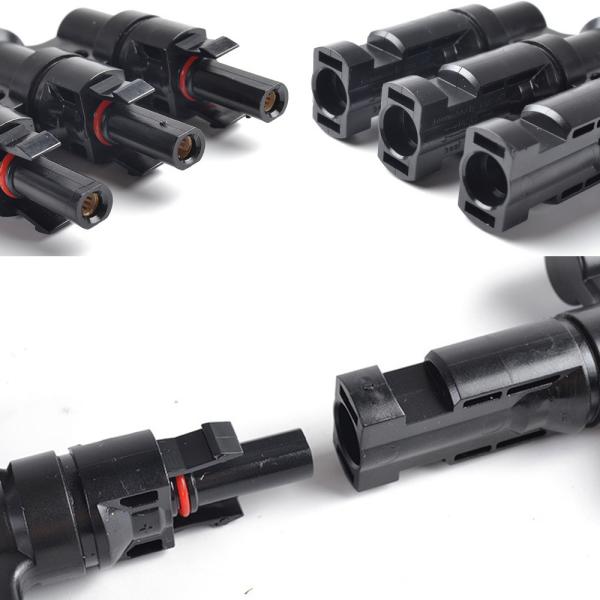

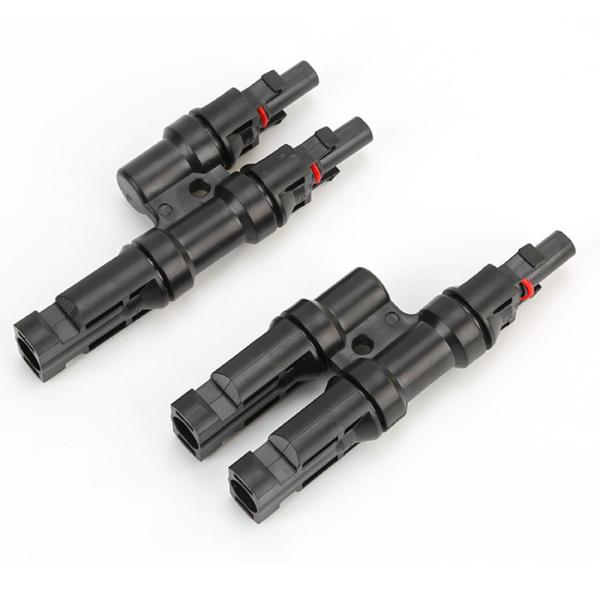

TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter
TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter
TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter
TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter
Specifications
Brand Name :
REALEADER
Model Number :
RLD-MC4
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Packaging Details :
export standard package or according to customer's requirement..
Material :
Housing:,PA66;Terminal:Copper
Name :
Solar connector 1 to 2
Keywords :
Cable Connector
Function :
Dustproof/waterproof/sun resistant
Gender :
Female Or Male
Rated Voltage: :
1000V
Description

TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter

TUV Certified PV4.0 T Type Branch Connector PV4.0 Solar Connector PV 2in1 Splitter

Features:

The solar extension cable is mainly used for the connection between PV modules and inverter (controller). It can be produced according to different requirements


We have a variety of connectors for photovoltaic systems. Line-to-line types: RLD004 (30A) , RLD008 (80A). Branch types: 2T1, 3T1,4T1, T2,T3,T4,T4,T6. . Special function connector RLD004-D (with diode) and RLD004-F (with fuse).

Product Specifications
Insulation material PPE Safety degree II
Rated current 30A Flame class UL94-V0
Rated voltage 1000V (IEC) Insertion force/Withdrawal force ≤50N / ≥50N
Test voltage 6kV(50Hz,Imin) Ambient temperature range -40℃…+90℃(IEC)
Typical contact resistance <0.5 mΩ Suitable cable cross sections 2.5~6mm2/14~10AWG
Contact material Copper,Tin plated Connecting system Crimp connection
Degree of protection IP2X/IP67 Nut cap locking force 2.0~2.5Nm
Overvoltage category/Pollution degree CATIII/2 Upper limiting temperature 110℃(IEC)

TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 SplitterTUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 SplitterTUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter

TUV Certified PV4.0 T Type Branch Connector Solar Connector PV 2 In 1 Splitter
