Specifications
Brand Name :
Hnx nylon cable gland
Model Number :
PG
Certification :
RoHS, CE, IP68
Place of Origin :
Zhejiang,China
MOQ :
10 Pieces
Price :
Please contact us.
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
30000 Pieces/Day
Delivery Time :
3-30 Day
Packaging Details :
38*25*17mm
Material :
PANYLON,UL94-V2
Color :
Black(customized color)
Max temperature :
80℃
Performance :
dustproof,flameproof
Hermetic seal :
NBR,silicone rubber
Usage :
For Food Grade
Description

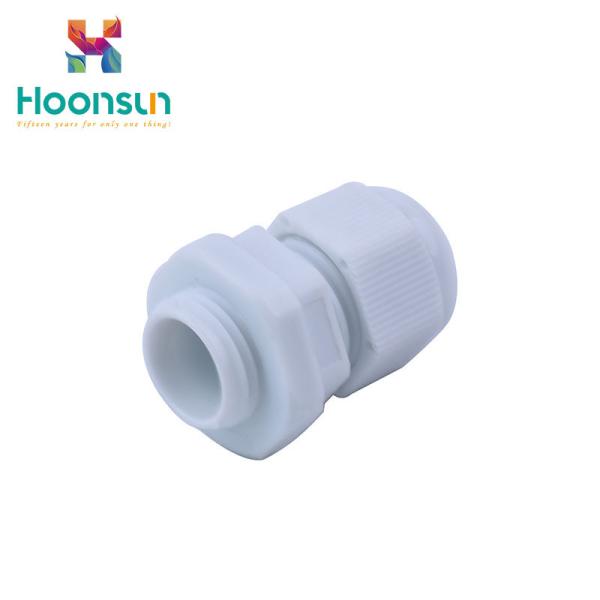

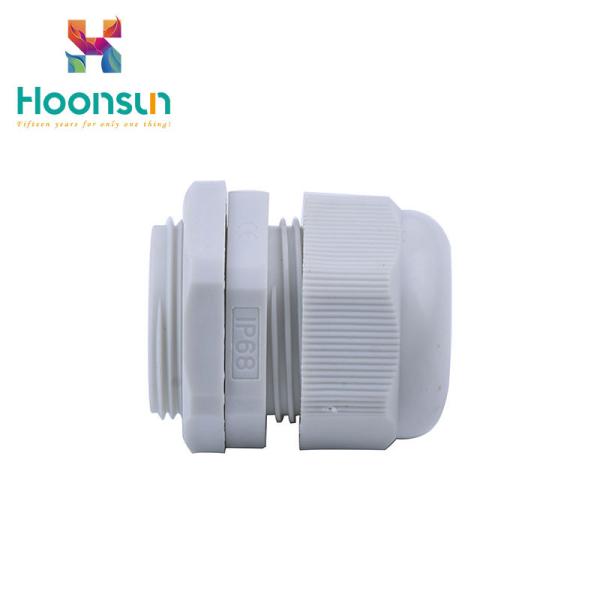

Food Grade Rubber Cable Gland PG11 / Micro Cable Gland IP68 Protection Grade

Usage:

1. nylon cable waterproof connector is a supporting article for cables, which is mainly used in distribution boxes and distribution cabinets.

The connector can lock the cable, and the other end can be connected to the upper part of the equipment box body, or can be threaded according to the selection.

3. connect to electric equipment with internal threads at the inlet and outlet. General machinery control box, distribution board, machinery.

4. when used for fixing wires and cables, it can effectively clamp cables and achieve the purpose of waterproof.

5. according to the installation materials produced, they can be divided into heat shrink type ( the most commonly used type ), dry wrap type, epoxy resin pouring type and cold shrink type.

6. according to the core material, it can be divided into copper core power cable connector and aluminum core power cable connector.

7. the main function is to keep the line unobstructed, keep the cable sealed, and ensure the insulation grade at the cable joint, so as to ensure its safe and reliable operation. If the seal is not good, it will not only cause the oil-immersed paper to dry up due to oil leakage, but also moisture will invade the inside of the cable, which will reduce the insulation performance of the paper.

Thread specification The M of the public teeth is in accordance with the EU norms.
Product description The exquisite and beautiful exterior design combined with a high torsion resistant and tighten nut structure to make it strong in tensile strength, perfect air tightness, and 50 meters of sustainable water. This product is totally resistant to UV weathering test for 1000 hours, and the function of waterproof and tensile resistance is unchanged. The products have anti-corrosion properties such as acid alkali resistance, chemical resistant material and general solvent. It can be widely used in various fields such as machine, automatic control, electrical, network, connector, telecommunication, communication, lighting and so on.
Protection grade In the range of the specified bayonet, the O type seal ring is used to rotate the tight head to reach IP68-5.
Color black, gray, all other colors can be customized.
Texture of material PANYLON,UL94-V2,NBR,silicone rubber
Temperature -40℃ to 100 ℃, short time to 120℃

Item Range
(mm)		 GL
Thread Length
(mm)		 AG
Thread O.D.
(mm)		 Spanner size
(mm)		 Code
PG7 3-6.5 9 12.5 18/16 HX-NLPG7
PG9 4-8 9 15.2 22/19 HX-NLPG9
PG11 5-10 9 18.6 24/22 HX-NLPG11
PG13.5 6-11 10 20.4 27/24 HX-NLPG13.5
PG16 10-13 10 22.5 30/27 HX-NLPG16
PG21 13-18 12 28.3 35/33 HX-NLPG21
PG29 18-25 12 37 45/42 HX-NLPG29
PG36 22-32 15 47 58/52 HX-NLPG36
PG42 32-38 18 54 62/58 HX-NLPG42
PG48 37-44 18 59.3 70/64 HX-NLPG48
PG-Lengthen
Item Range
(mm)		 GL
Thread Length
(mm)		 AG
Thread O.D.
(mm)		 Spanner size
(mm)		 Code
PG7 3-6.5 15 12.5 18/16 HX-NLPG7L
PG9 4-8 15 15.2 22/19 HX-NLPG9L
PG11 5-10 15 18.6 24/22 HX-NLPG11L
PG13.5 6-11 15 20.4 27/24 HX-NLPG13.5L
PG16 10-13 15 22.5 30/27 HX-NLPG16L
PG21 13-18 15 28.3 35/33 HX-NLPG21L
PG29 18-25 15 37 45/42 HX-NLPG29L
PG36 22-32 18 47 58/52 HX-NLPG36L
PG42 32-38 20 54 62/58 HX-NLPG42L
PG48 37-44 20 59.3 70/64 HX-NLPG48L

Company advantages:

1. specializing in the production of cable connectors for 12 years, we specializes in R & D and launch various new products, and have many patented products.

2. automatic production of numerical control equipment, accurate and safe

3. 2011 years become Liaoning "aircraft carrier" special waterproof connector supplier
