M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
M72 Metal Mechanical Stainless Steel Cable Gland Dustproof Salt Resistant
Specifications
Brand Name :
Hnx Cable Gland
Model Number :
M8-M72
Certification :
RoHS, ISO, CE, IP68
Place of Origin :
Zhejiang,China
MOQ :
20-100 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
30000 Pieces/Day
Delivery Time :
3-30 Day
Packaging Details :
38*25*17mm
Material :
SS316L OR SS304
Claw :
PA66 & UL94
O-Ring :
Silicone Rubber
Range :
48-58mm Wire
Code :
HX-SSM72-58
Advantage :
After-sale Service
Description

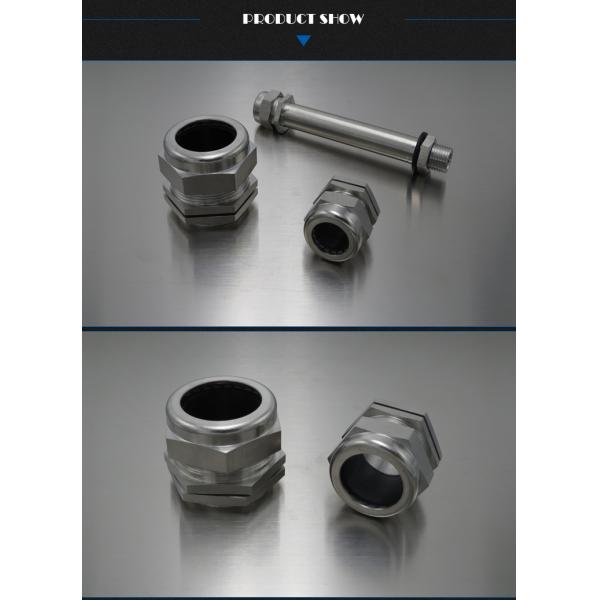

M72 Metal Mechanical Dustproof Salt-resistant Stainless Steel Cable Gland

Basic Info

Model NO.: M72

Model No.: M8-M72

Sealing and Sealing Ring: NBR , Silicone Rubber

Temperature Resistance: Static State:-40 to 100, Short Time to 120

Protection Degree: IP68-10 Bra

Application: Cable Installation

Delivery Time: 3-30

Payment: T/T, L/C, Paypal

Main Material: SS304/SS316L

Claw: PA (Nylon), UL94-V2

Trademark: HNX

Transport Package: 100PCS/Bag. 1000PCS/Box

Specification: 38*25*17mm

Origin: China

HS Code: 853890000

Item Range
Φ mm		 Tread Length
GL mm		 Thread O.D.
AG mm		 Joint Length
H mm		 Spanner size
mm		 Code
M8×1 2-5 5 8 12 16 HX-SSM8
M10×1 2-5 7 10 14 19 HX-SSM10-5
3-6.5 7 10 14 19 HX-SSM10
M12×1.5 2-5 7 12 14 19 HX-SSM12-5
3-6.5 7 12 14 19 HX-SSM12
4-8 8 12 17/14 19 HX-SSM12-8
M14×1.5 3-6 8 14 17 19 HX-SSM14-6
4-8 8 14 17 19 HX-SSM14
M16×1.5 3-6 8 16 18 20 HX-SSM16-6
4-8 8 16 18 20 HX-SSM16
5-10 8 16 20/18 21 HX-SSM16-10
M18×1.5 3-7 8 18 20/21 21 HX-SSM18-7
5-10 8 18 20/21 21 HX-SSM18
6-12 8 18 22/20 22 HX-SSM18-12
M20×1.5 5-10 8 20 22 22 HX-SSM20-10
6-12 8 20 22 22 HX-SSM20
10-14 8 20 24/22 23 HX-SSM20-12
M22×1.5 8-12 8 22 24 23 HX-SSM22-12
10-14 8 22 24 23 HX-SSM22
12-16 8 22 27/24 23 HX-SSM22-16
M24×1.5 8-12 9 24 24/27 25 HX-SSM24-12
10-14 9 24 24/27 25 HX-SSM24
12-16 9 24 27 27 HX-SSM24-16
M25×1.5 8-12 9 25 24/27 25 HX-SSM25-12
10-14 9 25 24/27 27 HX-SSM25-14
12-16 9 25 27 27 HX-SSM25-16
13-18 9 25 30/27 27 HX-SSM25-18
M27×1.5 13-18 9 27 30 27 HX-SSM27
M30×1.5 13-18 9 30 30/32 29 HX-SSM30
15-22 9 30 35/32 29 HX-SSM30-22
M32×1.5 13-18 10 32 35 29 HX-SSM32-18
15-22 10 32 35 29 HX-SSM32
18-25 10 32 40/35 31 HX-SSM32-25
M33×2 15-22 10 33 35/36 29 HX-SSM33
M36×1.5 13-18 10 36 40 31 HX-SSM36-18
15-22 10 36 40 31 HX-SSM36-22
18-25 10 36 40 31 HX-SSM36
M40×1.5 18-25 11 40 40/45 31 HX-SSM40-25
22-30 11 40 45 35 HX-SSM40-30
25-33 11 40 50/45 37 HX-SSM40-33
M47×1.5 25-33 11 47 50 37 HX-SSM47
M48×2 25-33 11 48 50/52 37 HX-SSM48
M50×1.5 30-35 12 50 57/55 37 HX-SSM50-35
32-38 12 50 57/55 37 HX-SSM50
37-44 13 50 64/55 37 HX-SSM50-44
M60×1.5 37-44 13 60 65 38 HX-SSM60
M63×1.5 37-44 13 63 64/68 38 HX-SSM63
42-52 13 63 78/68 42 HX-SSM63-52
M64×2 37-44 13 64 64/68 38 HX-SSM64
42-52 13 64 78/68 42 HX-SSM64-52
M72×2 42-52 15 72 76/80 42 HX-SSM72
48-58 15 72 76/80 45 HX-SSM72-58

Company profile

Yueqing hongxiang connector manufacturing co., ltd.is a professional manufacturer of various specifications of wire and cable connectors.

The main product is a metal cable waterproof connector with a protection grade of ip68.

It has the characteristics of large clamping cable range, strong tensile force, waterproof, dustproof,salt resistance, acid and alkali resistance, alcohol resistance, grease and common solvents, etc.

Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug cap, etc.

FAQ

Q: Are you trading company or manufacturer?

A: We are the factory. Also we can export the goods by ourselves.

Q: How long is your delivery time?

A: Generally we can send out the the goods within 3-7 days if the goods are in stock.Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shipment.

Q: How about the after-sale service?

A: Any feedback or comments are welcomed.We will try to make the best assistant to let you maximum satisfaction.
