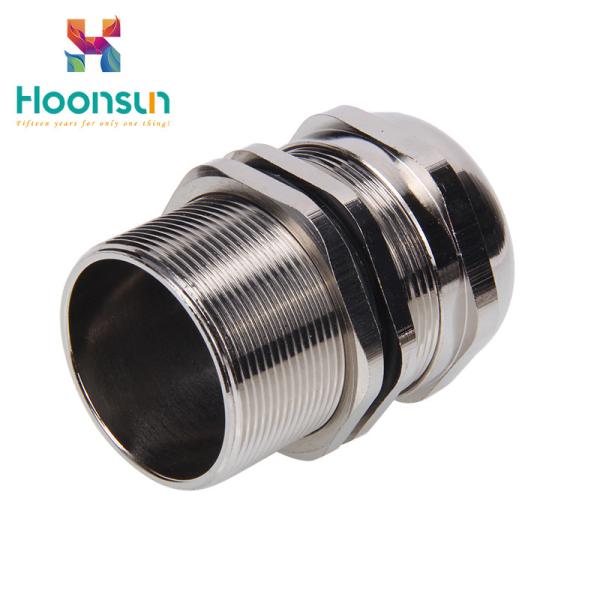

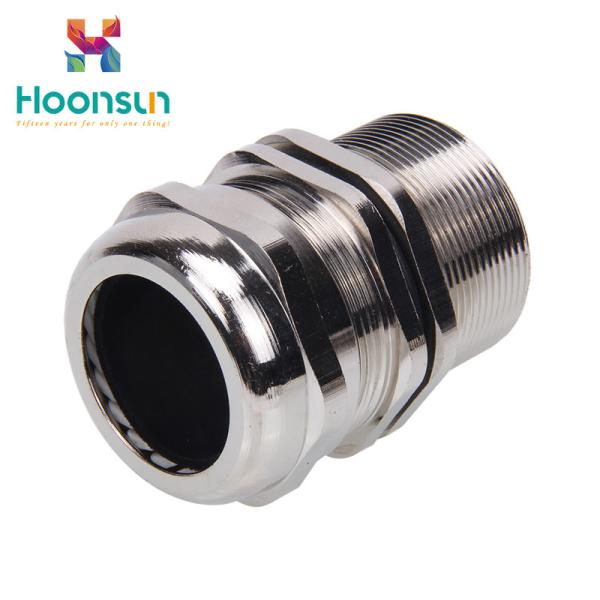

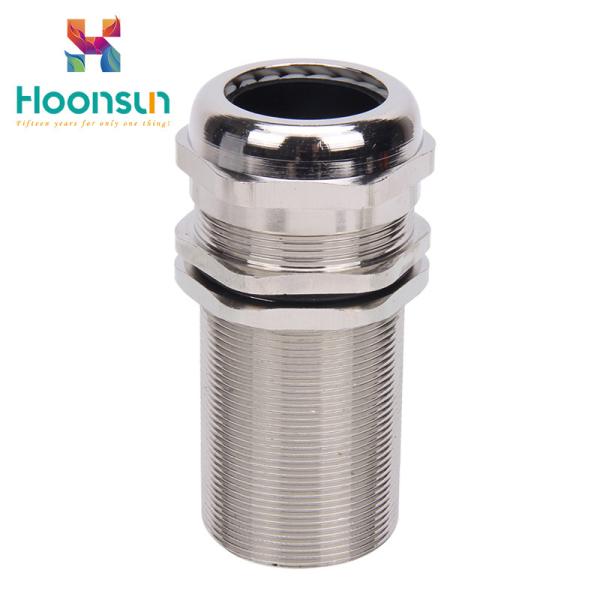

Metric Thread M63 Length Type Nickel Plated Brass Cable Gland

Specification

Item: M63*1.5

Range: 37-44mm

Thread length: 18mm

Thread O.D.: 63.0mm

Joint length: 38mm

Spanner size: 64/68mm

Code: HX-NPM63L

Detail

Material: nickel-plated brass

Claw: PA(Nylon), UL94-V2

Hermetic seal: NBR, Silicone rubber

O-Ring: NBR, Silicone rubber

Protection degree: IP68-10bar

Temp: static state -40℃ to 100℃

Authentication: CE, RoHS, REACH

Product performance: waterproof, dustproof and corrosion resistance. The diameter of the clamping hose is large and the tensile strength is strong.

Under the condition of reasonable use of products, the waterproof level can reach IP68.

This product can be waterproof, dustproof, corrosion resistant, high hardness, and can work in damp, salt / acid / alkaline environment.

Uses: to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable;

it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry,

the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy.
