Specifications
Brand Name :
Hnx Metal Locknut
Model Number :
M Type
Certification :
CE, ROHS
Place of Origin :
Zhejiang,China
MOQ :
20-100 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
30000 Pieces/Day
Delivery Time :
3-30 Day
Packaging Details :
38*25*17mm
Material :
Nickel-plated Brass
Protection Degree :
IP54
Surface Treatment :
Electroplating
Function :
Tighten the cable glands
Application :
for electrical fittings
Description

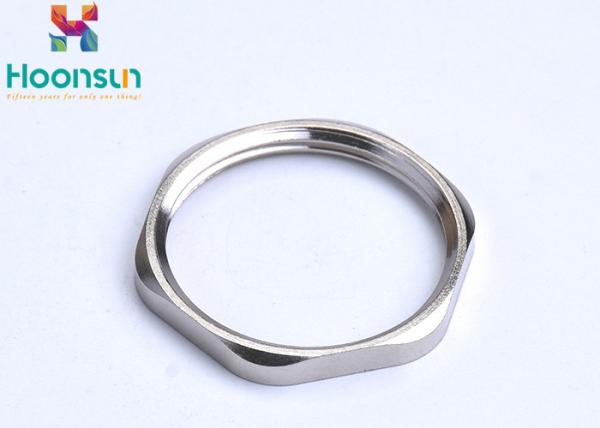

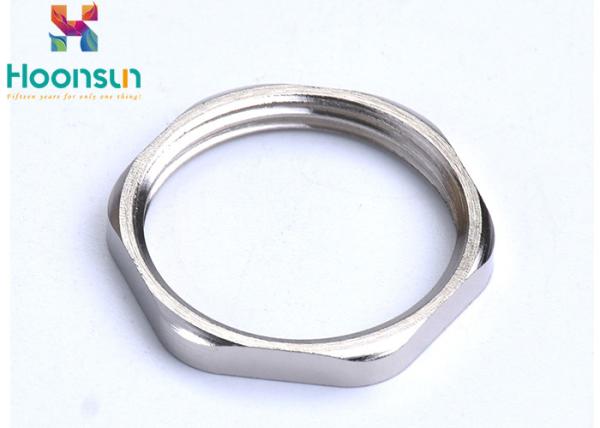

Metal Standard Hex Lock Nut Nickel Plated Brass For M12 To M100 Metric Thread

A nut is a component that is screwed together with bolts or screws for fastening purposes, and all manufacturing machinery must be used. It must be connected through the inner thread, the same size nuts and screws.

Features:

  • Easy to install
  • Entirety
  • No gasket
  • Dismantling convenience
  • Reusable
  • Application scope: automobile industry, compressor, construction machinery, wind power generation equipment, agricultural machinery, casting, drilling equipment, shipbuilding industry, military, mining equipment, oil drilling rig (land or sea), public facilities, rail transport, transmission system, metallurgical equipment, rock hammer

Product detail

  • Spiral teeth specification: metric teeth (Metric), PG teeth, NPT teeth. G (PF) teeth are also customizable.
  • Product material: made of high quality brass nickel plating
  • Product use: This product can change the dimensions of different thread diameter freely; it can be customized according to customer's requirements and produce the conversion between different thread length and other different threads.
  • Product shape: hexagonal or circular

Item GL
mm		 Height H
mm		 Spanner Size
mm
M12*1.5 HX-LNM12 3 14
M14*1.5 HX-LNM14 3 17
M16*1.5 HX-LNM16 3 18
M18*1.5 HX-LNM18 3 20
M20*1.5 HX-LNM20 3 22
M22*1.5 HX-LNM22 3.2 24
M24*1.5 HX-LNM24 3.5 27
M25*1.5 HX-LNM25 3.5 27
M27*1.5 HX-LNM27 4 30
M30*1.5 HX-LNM30 4 32
M32*1.5 HX-LNM32 4 35
M33*1.5 HX-LNM33 4 36
M36*1.5 HX-LNM36 4 40
M37*1.5 HX-LNM37 4 40
M40*1.5 HX-LNM40 4.5 45
M42*1.5 HX-LNM42 5 45
M47*1.5 HX-LNM47 5.5 50
M48*1.5 HX-LNM48 5.5 52
M50*1.5 HX-LNM50 5.5 55
M54*1.5 HX-LNM54 5.5 57
M60*1.5 HX-LNM60 6 64
M63*1.5 HX-LNM63 6 68
M64*2 HX-LNM64 6 68
M72*2 HX-LNM72 8.5 78
M75*2 HX-LNM75 8.5 78
M80*2 HX-LNM80 9 88
M88*2 HX-LNM88 9 94
M100*2 HX-LNM100 9 110

Item GL
mm		 Height H
mm		 Spanner Size
mm
PG7 HX-LNPG7 3 15
PG9 HX-LNPG9 3 18
PG11 HX-LNPG11 3 21
PG13.5 HX-LNPG13.5 3 23
PG16 HX-LNPG16 3.2 25
PG19 HX-LNP19 3.5 27
PG21 HX-LNPG21 4 30
PG25 HX-LNPG25 4 35
PG29 HX-LNPG29 4 40
PG36 HX-LNPG36 5.5 50
PG42 HX-LNPG42 6 57
PG48 HX-LNPG48 6.5 64
PG63 HX-LNPG63 8.5 78
G1/2 HX-LNG1/2 3 23
G3/4 HX-LNG3/4 4 30
G1 HX-LNG1 4 40
G1-1/4 HX-LNG1-1/4 5.5 50
G1-1/2 HX-LNG1-1/2 5.5 57
G2 HX-LNG2 6 64
G2-1/2 HX-LNG2-1/2 8.5 78
G3 HX-LNG3 9 94
NPT1/2 HX-LNNPT1/2 3 23
NPT3/4 HX-LNNPT3/4 4 30
NPT1 HX-LNNPT1 4 40
NPT1-1/4 HX-LNNPT1-1/4 5.5 50
NPT1-1/2 HX-LNNPT1-1/2 5.5 57
NPT2 HX-LNNPT2 6 64
NPT2-1/2 HX-LNNPT2-1/2 8.5 78
NPT3 HX-LNNPT3 9 94
