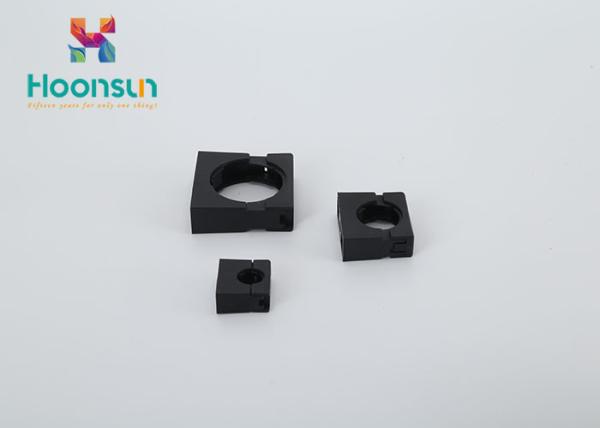

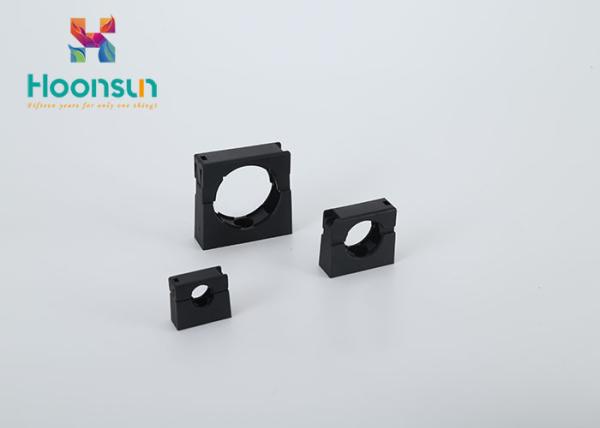

AD25 Black / Grey Plastic Hose Clamps Corrugated Type For Flexible Pipe​

Product material: PA nylon (polyamide)

Working temperature: -40 ℃ to 110 ℃

Color: black, other colors can be made

Scope of supply: eliminate the old market with two kinds of cover without cover, adopt beautiful connection and strong overall new design.

Product characteristics: fixed bracket is a matching product of hose, used for fixing hose or cable, etc.

Flame retardancy: self extinguishing, no halogen, phosphorus and cadmium.

Product characteristics:

1. The corrugated hose fixed seat is a matching product of hose, used for fixing hose or cable, etc., for fixing wave tube, and the base is fixed on the substrate with screws. The corrugated hose holder makes the bellows of the mechanical equipment more orderly and beautiful, and improves the overall value of the equipment.
2. The base and protective cover of the corrugated hose fixed seat adopt one forming technology, which is convenient to install, never jump lid, save time and labor.
3. The corrugated hose fixed seat has a wide range of specifications, whether it is European gauge nylon corrugated pipe or general bellows can be installed and fixed.
4. according to the European Union regulation, the vertical fixed proposal 50cm uses 1 corrugated hose fixed seat support, horizontal fixed 30cm recommended 1 corrugated hose fixed seat support.
5. There are many bellows applicable to this product.

Product advantages: fast and simple installation method, just press into the corrugated hose can be clamped. The inner groove structure makes the hose not move in the longitudinal direction, but the axis can still rotate freely, saving space, safe and firm, neat and beautiful.

Company profile:

Hongxiang - waterproof joint with high cost performance.The road is the place where you walk, and pioneering and innovating are as usual.Yueqing hongxiang connector manufacturing co., ltd. is a professional manufacturer of various specifications of wire and cable connectors. The main product is a metal cable waterproof connector with a protection grade of ip68. it has the characteristics of large clamping cable range, strong tensile force, waterproof, dustproof, salt resistance, acid and alkali resistance, alcohol resistance, grease and common solvents, etc. Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug cap, etc.

Product Introduction

Our cable gland has a wide range of uses, which can be used to connect the LED lamp line interface, the laying of the circuit cable, the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy. The cable connector has corrosion resistance and can be applied to marine operations, chemical equipment and so on.
