Specifications
Brand Name :
Hnx Metal Reducer
Model Number :
M/PG
Certification :
RoHS, ISO, CE, IP68
Place of Origin :
Zhejiang,China
MOQ :
20-100 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
30000 Pieces/Day
Delivery Time :
3-30 Day
Packaging Details :
38*25*17mm
Material :
Nickel-plated Brass
Protection Degree :
IP54
Surface Treatment :
Electroplating
Brand :
M8-M72,PG7-PG48
Effect :
Variable diameter
Type :
Two Way Reversible
Description

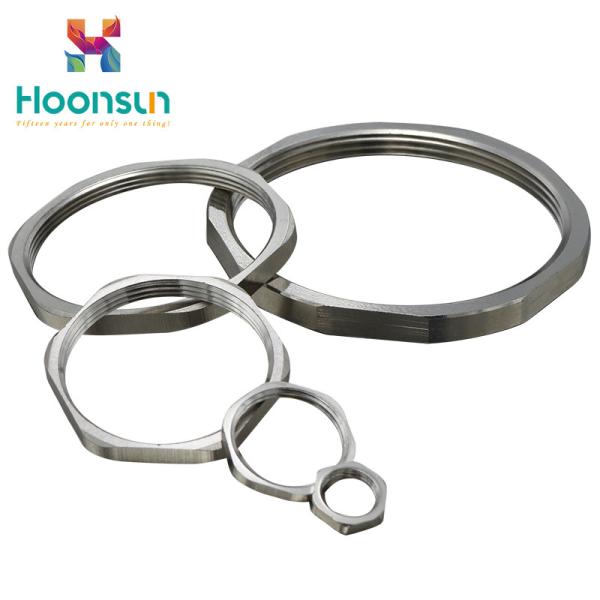

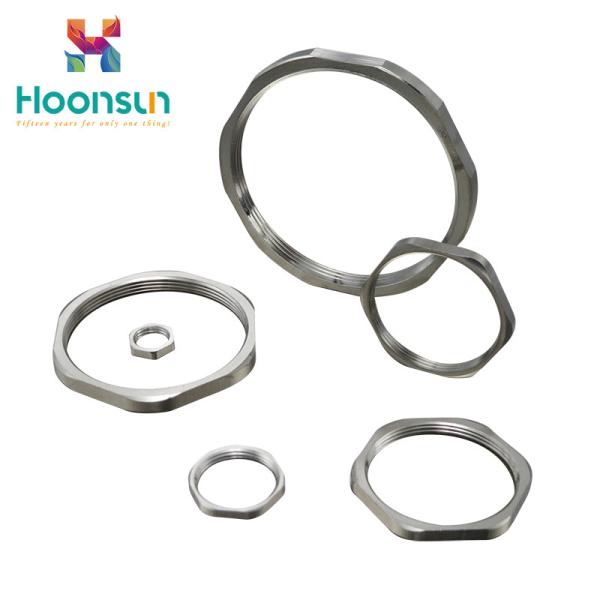

Standard Two Way Cable Gland Accessories Reversible Hexagon Cable Gland Locknut

Product detail
Spiral teeth specification: metric teeth (Metric), PG teeth, NPT teeth. G (PF) teeth are also customizable.
Product material: made of high quality brass nickel plating
Product use: This product can change the dimensions of different thread diameter freely; it can be customized according to customer's requirements and produce the conversion between different thread length and other different threads.
Product shape: hexagonal or circular

Item GL
mm		 Height H
mm		 Spanner Size
mm
M12*1.5 HX-LNM12 3 14
M14*1.5 HX-LNM14 3 17
M16*1.5 HX-LNM16 3 18
M18*1.5 HX-LNM18 3 20
M20*1.5 HX-LNM20 3 22
M22*1.5 HX-LNM22 3.2 24
M24*1.5 HX-LNM24 3.5 27
M25*1.5 HX-LNM25 3.5 27
M27*1.5 HX-LNM27 4 30
M30*1.5 HX-LNM30 4 32
M32*1.5 HX-LNM32 4 35
M33*1.5 HX-LNM33 4 36
M36*1.5 HX-LNM36 4 40
M37*1.5 HX-LNM37 4 40
M40*1.5 HX-LNM40 4.5 45
M42*1.5 HX-LNM42 5 45
M47*1.5 HX-LNM47 5.5 50
M48*1.5 HX-LNM48 5.5 52
M50*1.5 HX-LNM50 5.5 55
M54*1.5 HX-LNM54 5.5 57
M60*1.5 HX-LNM60 6 64
M63*1.5 HX-LNM63 6 68
M64*2 HX-LNM64 6 68
M72*2 HX-LNM72 8.5 78
M75*2 HX-LNM75 8.5 78
M80*2 HX-LNM80 9 88
M88*2 HX-LNM88 9 94
M100*2 HX-LNM100 9 110

Item GL
mm		 Height H
mm		 Spanner Size
mm
PG7 HX-LNPG7 3 15
PG9 HX-LNPG9 3 18
PG11 HX-LNPG11 3 21
PG13.5 HX-LNPG13.5 3 23
PG16 HX-LNPG16 3.2 25
PG19 HX-LNP19 3.5 27
PG21 HX-LNPG21 4 30
PG25 HX-LNPG25 4 35
PG29 HX-LNPG29 4 40
PG36 HX-LNPG36 5.5 50
PG42 HX-LNPG42 6 57
PG48 HX-LNPG48 6.5 64
PG63 HX-LNPG63 8.5 78
G1/2 HX-LNG1/2 3 23
G3/4 HX-LNG3/4 4 30
G1 HX-LNG1 4 40
G1-1/4 HX-LNG1-1/4 5.5 50
G1-1/2 HX-LNG1-1/2 5.5 57
G2 HX-LNG2 6 64
G2-1/2 HX-LNG2-1/2 8.5 78
G3 HX-LNG3 9 94
NPT1/2 HX-LNNPT1/2 3 23
NPT3/4 HX-LNNPT3/4 4 30
NPT1 HX-LNNPT1 4 40
NPT1-1/4 HX-LNNPT1-1/4 5.5 50
NPT1-1/2 HX-LNNPT1-1/2 5.5 57
NPT2 HX-LNNPT2 6 64
NPT2-1/2 HX-LNNPT2-1/2 8.5 78
NPT3 HX-LNNPT3 9 94

product introduction

Cable gland Waterproof metal cable gland type Large type cable gland, large range type cable gland, small range type cable gland, length type cable gland, strengthened type cable gland, direct type cable gland, multiple-entry type cable gland, high temperature resistance type cable gland, double locking type cable gland, spiral type cable gland, 90º flexible pipe connector, EMC cable gland, and explosion proof cable gland, etc.
Nylon cable gland type Conventional type cable gland, split type cable gland, anti bending cable gland, corrugated tubing cable gland, nylon union for flexible pipe and hose cable gland, etc.
Marine cable gland type DCG single compression type cable gland, JIS standard type cable gland, TJ clamping type cable gland and TH welded type cable gland, etc.
Others Flexible Pipe type PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc.
Vent valve series Breathable vent plug and breathable cable gland, etc.
Accessories Brass reducer, brass enlarger, standard locknut, EMC locknut, brass screw plug and waterproof junction box, etc.

Company profile

Hongxiang - waterproof joint with high cost performance.The road is the place where you walk, and pioneering and innovating are as usual.Yueqing hongxiang connector manufacturing co., ltd. is a professional manufacturer of various specifications of wire and cable connectors. The main product is a metal cable waterproof connector with a protection grade of ip68. it has the characteristics of large clamping cable range, strong tensile force, waterproof, dustproof, salt resistance, acid and alkali resistance, alcohol resistance, grease and common solvents, etc. Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug cap, etc.
