Male Female Watertight Cable Connector
Male Female Watertight Cable Connector
Male Female Watertight Cable Connector
Male Female Watertight Cable Connector
Male Female Watertight Cable Connector
Male Female Watertight Cable Connector
Specifications
Brand Name :
Bett
Model Number :
M18
Certification :
UL，CCC，ROHS，CE，TUV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, L/C
Supply Ability :
100000 sets/ week
Delivery Time :
3-7 days
Packaging Details :
Standard Export Carton
Color :
Black / White
Connector Type :
waterproof connector
Cable Length :
Per your requirement
Warranty :
2 Yeras
IP Rating :
IP67
Connector type :
Underground Cable Connector
Description

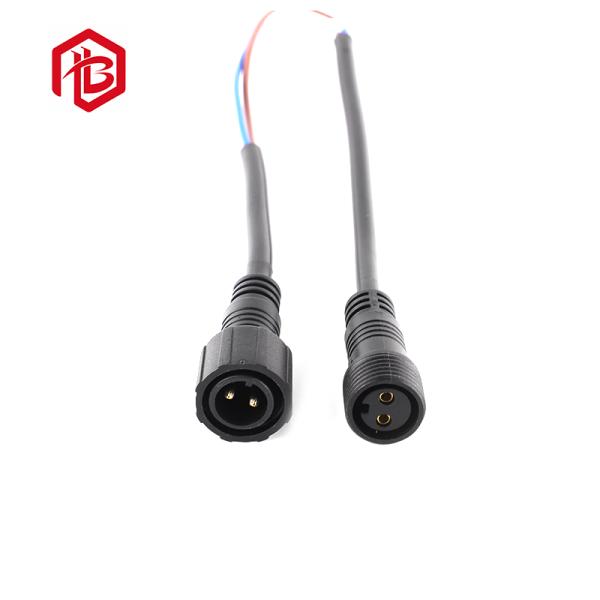

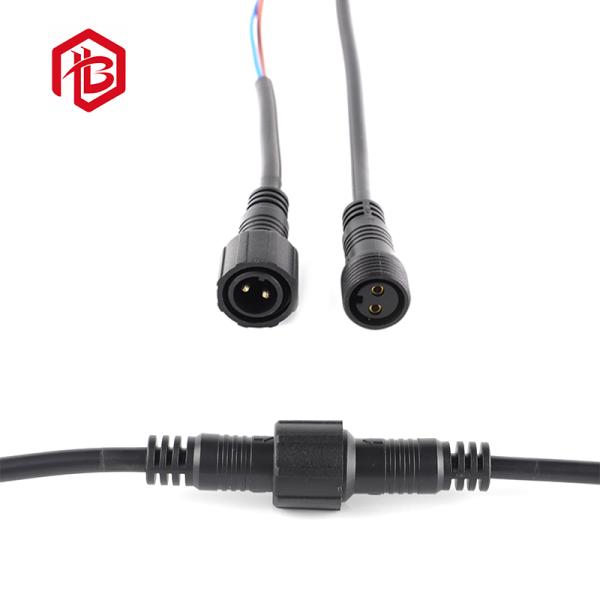

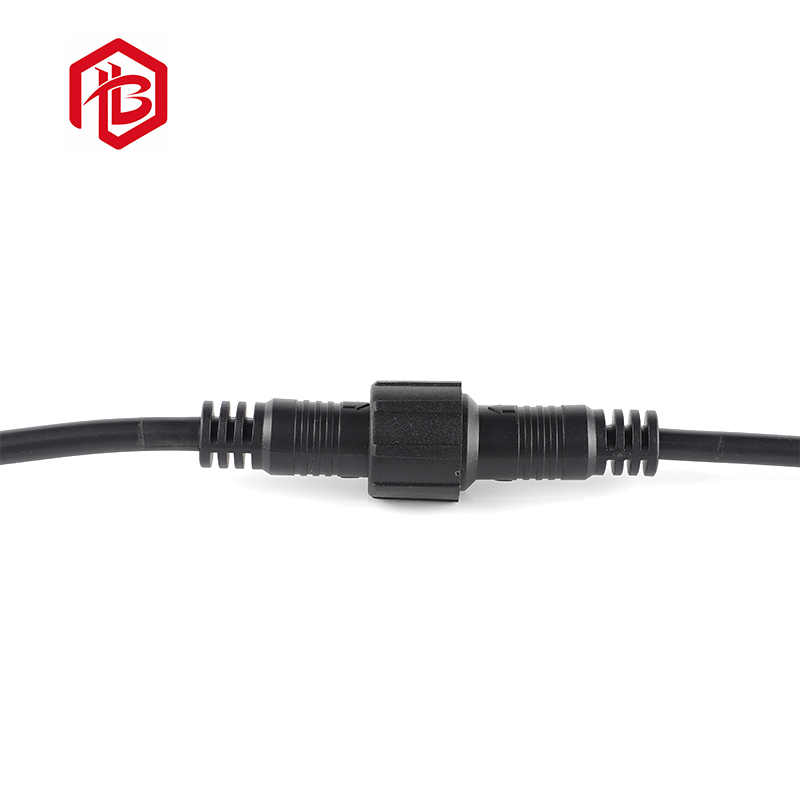

Bett Male And Female Watertight Cable Connector 3 Pole IP67 For The Outdoor Lighting

Detailed Product Description

Protection Level: IP67 Connecting Model: Waterproof Connector
Pin: 3 pin Current Rating: 20A
Model: M18 big head Voltage Rating: 300V

Description of 3 Pole Connector

Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, screw locking M18 big head connectors will be a perfet option. it is widely used in many application.

Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2

Features:​

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


FAQ

1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

4.Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

5.Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

Product Display

Male Female Watertight Cable ConnectorMale Female Watertight Cable ConnectorMale Female Watertight Cable Connector
