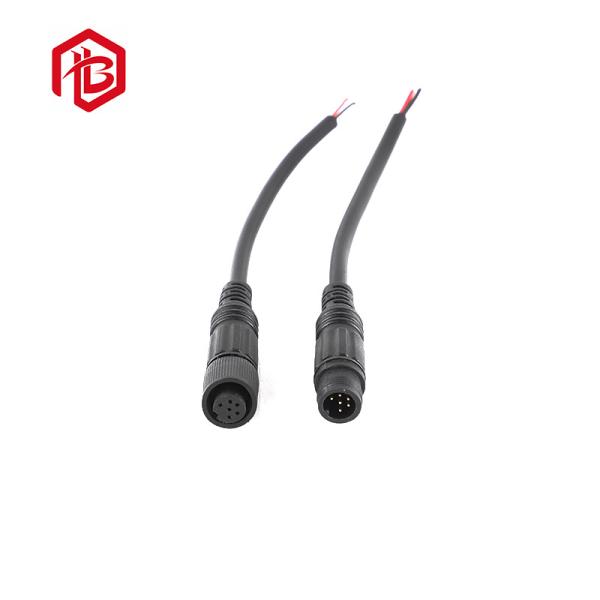

Multi Core M10 IP68 Waterproof Male Female Connector
Multi Core M10 IP68 Waterproof Male Female Connector
Multi Core M10 IP68 Waterproof Male Female Connector
Multi Core M10 IP68 Waterproof Male Female Connector
Multi Core M10 IP68 Waterproof Male Female Connector
Multi Core M10 IP68 Waterproof Male Female Connector
Specifications
Brand Name :
Bett
Model Number :
M10 connector
Certification :
CCC，ROHS，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union，Paypal, L/C
Supply Ability :
100000sets/ week
Delivery Time :
3-7 work days
Packaging Details :
Standard export carton
Color :
Black White
Material :
PVC / Nylon
Certificate :
CE/ROHS/IP
Cable length :
per your requirement
Warranty :
2 Years
IP Rating :
IP67/IP68
Description

Multi Core M10 IP68 Waterproof Male Female Connector

Detailed Product Description

Protection Level: IP67 Pin: 6Pin
Current Rating(A): 6A Max. Material: PPA
Connection Way: Self Locking Connector Operating Voltage: 500V
High Light:

waterproof electric cable connectors

,

watertight cable connector

Description of M10 Connector

M10 connectorIP68 wateproof connector is one of best-selling series products made with PA66 Nylon, to ensure the high stability and multi-core structures. They are one of the cost-effective series for multiple applications.

Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


FAQ

1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3. Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

4. Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

5. Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

Product Display

Multi Core M10 IP68 Waterproof Male Female Connector

Multi Core M10 IP68 Waterproof Male Female Connector
