Specifications
Brand Name :
Bett
Model Number :
M12
Certification :
UL，CCC，ROHS，CE，TUV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union，Paypal, L/C
Supply Ability :
100000 sets/ week
Delivery Time :
3-7 days
Packaging Details :
Standard Export Carton
Material :
Nylon/ PVC
Connector Type :
waterproof connector
Cable Length :
Per your requirement
Warranty :
2 Yeras
IP Rating :
IP67
Connector type :
Underground Cable Connector
Model :
M12
Description

Ethernet Waterproof IP67 A/B/D Code 4 Pin Aviation Assembly M12 Right Angle Connector


Detailed Product Description

Brand Bett
scope of application the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Types waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type AC/DC
Shape round/flat look
Process stamping/welding/injection molding
Feature waterproof
Contact material pure phosphor copper
Joint material PVC/PBT/PA66 / PC + ABS
Some conclusions 2-12 core
Pin number 2-12 needle
line length any (mm)
Form socket, plug stamping or injection after welding
Rated voltage 24 V DC 0 (AC 110 V, 110 V)
Current rating 1-50A
Breakdown voltage 1500 V or higher (special require should be mentioned in advance)
Working temperature - 40 ~ 105 ° C
Protection grade IP65 - IP68 (other requirement. When ordering, please put forward)
Wire materials PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line
Certification can according to customer's requirements with CCC, VDE, ROHS, SGS, etc all kinds of wire
Appearance color black, white, transparent, etc
Normal product joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products
Some conclusions 2 core
Cable inside section 0.75 square (normal)
Cable length any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit

Supply Ability
Supply Ability
12000 Piece/Pieces per Week


Description of 3~5 Pole Connector

Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, it will be a perfet option. it is widely used in many application.

Operation Parameters
Voltage Rating 300VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


Features:​

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • Electric power equipment
  • Communications equipment


FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.

4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

Product Display

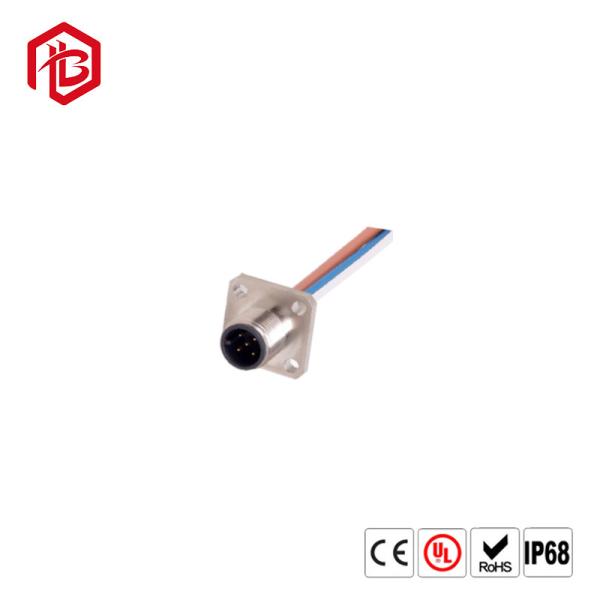

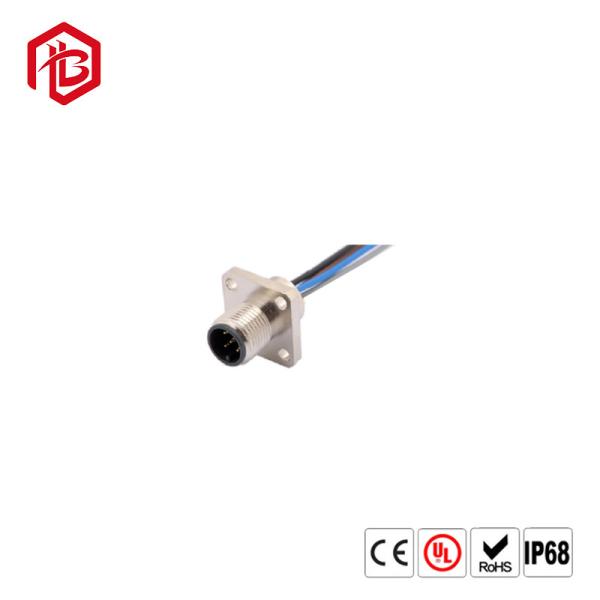

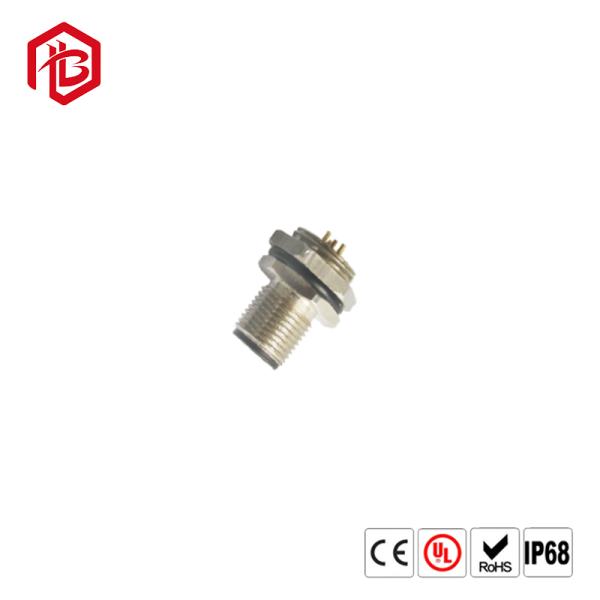

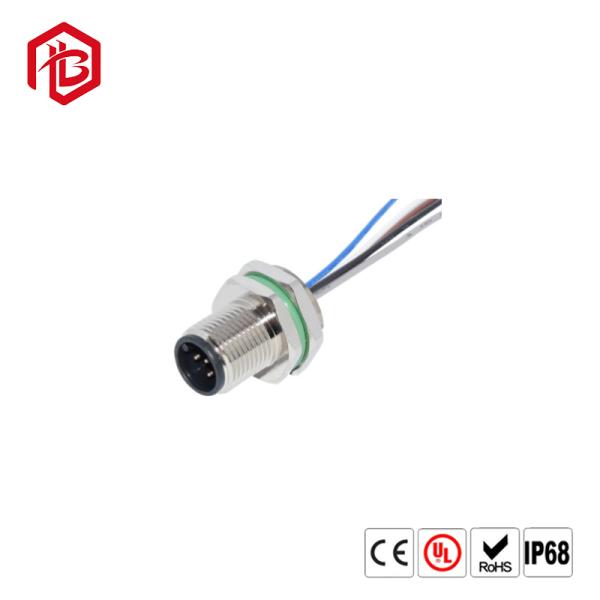

Ethernet Waterproof IP67 A/B/D Code 4 Pin Aviation Assembly M12 Right Angle ConnectorEthernet Waterproof IP67 A/B/D Code 4 Pin Aviation Assembly M12 Right Angle Connector
