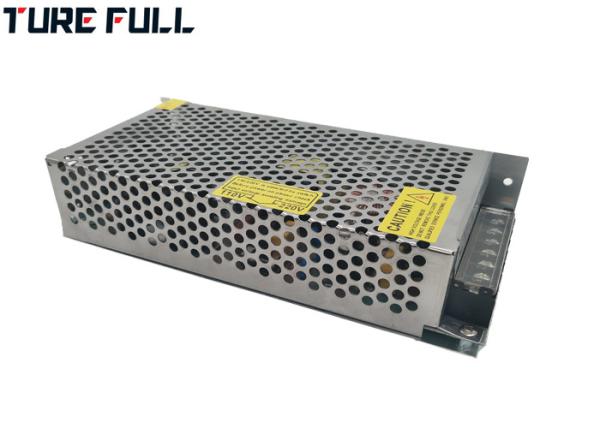

150W Switching DC Power Supply 12.5A Power Driver Supply IP44 For Led Strip Lights
150W Switching DC Power Supply 12.5A Power Driver Supply IP44 For Led Strip Lights
Specifications
Brand Name :
turefull
Model Number :
ZF-CV-150
Place of Origin :
shenzhen,China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Carton Box
Input voltage :
100-240V
Output current :
12.5A
Output type :
single
Output power :
150W
Output frequency :
50/60HZ
Output voltage :
5V/12V/24V
Warranty :
3 years
Application :
LED strip lights
Efficiency :
86%
Description

150W Switching DC Power Supply 12V 12.5A Power Driver Supply IP44 for Led Strip Lights

Features

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage

3. Cooling by free air convection

4. LED indicator for power on

5. 100% full load burn-in test

6. High efficiency, long life and high reliability

7. 2years warranty

8. CE & Rohs certifications

Parameters

Model S-150-12 S-150-24
Dc output voltage 12V 24V
Rated output current 12.5A 6.5A
Output current rage 0-12.5A 0-6.5A
Rated Power 150W 156W
Wave and noise 150mVp-p 200mVp-p
Voltage ADJ. range 10.2-13.8V 21.6-28.8V
Voltage tolerance ±1% ±1%
Line Regulation ±0.5% ±0.5%
Load Regulation ±0.5% ±0.5%
Efficiency 87.5% 89.0%
AC input voltage range AC85~AC264V 47~63Hz; 240~370VDC
Input current 2.8A/115V 1.6A/230V
AC INnrush current Cold-start 60A/230V
Overload proctection 110%~140% Potection type: Hiccp mode,recobers automatically after condition recoverd
Over-voltage protection 13.8-16.2V 28.8-33.6V
Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time 500ms,30ms/230VAC 500ms,30ms/115VAC at full lod
Hold up time 40ms/230VAC ,35ms/115VAC at full lod
Withstand voltage I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature -30°C~+70°C
Overall dimension 162*97*30mm
