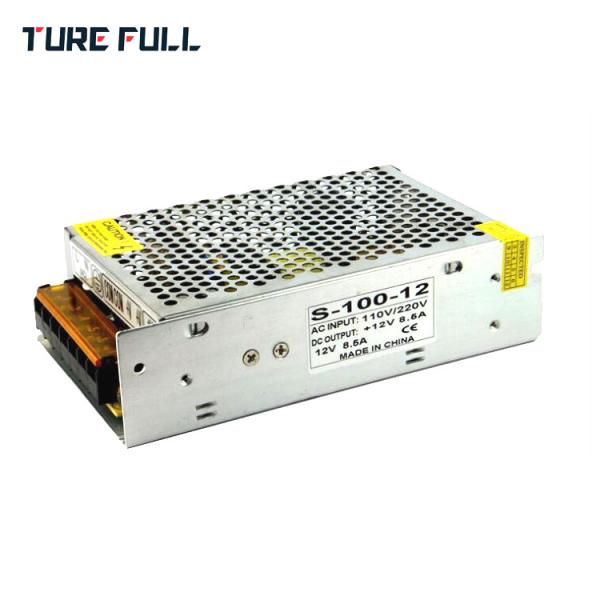

100W Constant Voltage Power Supply , DC High Power Switching Power Supply
100W Constant Voltage Power Supply , DC High Power Switching Power Supply
Specifications
Brand Name :
turefull
Model Number :
ZF-CV-100
Place of Origin :
shenzhen,China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Carton Box
Input voltage :
100-240V
Output current :
8.3
Output type :
single
Output power :
100W
Output frequency :
50/60HZ
Output voltage :
5V/12V/24V
Warranty :
3 years
Application :
LED strip lights
Efficiency :
86%
Description

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage

3. Cooling by free air convection

4. LED indicator for power on

5. 100% full load burn-in test

6. High efficiency, long life and high reliability

7. 2years warranty

8. CE & Rohs certifications

Parameters

parameter Item No.

S-80-5

S-100-12

S-100-15

-100-24

OUTPUT

DC Output Voltage

 +5V +12V

+15V

+24V

Output Rated Current

 16A 8.5A 6.7A 4.5A

Output Current Range

 0- 16A 0-8.5A 0- 6.7A 0-4.5A

Rated power

 80W 102W 100.5W 108W

Ripple

 100mVp-p 100mVp-p 150mVp-p 150mVp-p

ADJ.output range

 ±10%

OutputAccuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Hold up time

50ms,50ms,20ms

INPUT

Input Voltage range

 90~132V/180~264VAC;200~360V DC

Input current

2.5A/115V;1.2A/230V

Input frequency

47~63Hz

Efficiency

78%

84%

84%

85%

Inrush current 40A@230V
Leakage Current <0.5mA@240V

Over Temp.protection

 Over load protection 105~150%,Hiccup,automatic recovery
SHORT CIRCUIT Hiccup,automatic recovery
Over voltage 6~7V 15~17V 18~20V 30~33V

ENVIRONMENT

Working Temp.,Humidity

-10~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH.

Temp.Coefficeent

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACHAXES

SAFETY&EMC

Safety standards

GB4943 EN60950

Pressure

I/P-O/P,I/P-FG:1.5KV;O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

GB9254,EN55022 CLASS B

OTHER

Demension

159*98*38mm CASE:K807

Weight

0.5Kg
Note: 1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70%
humidity;
2.Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u
capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
