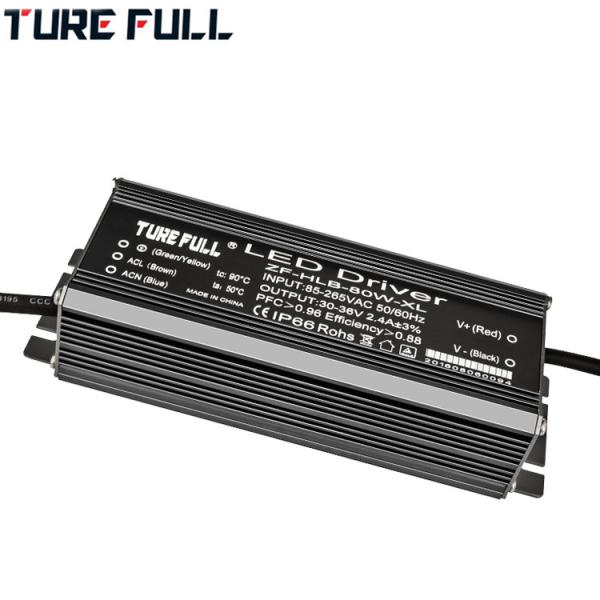

80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-80W-36
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-10 work days
Output Power :
51 - 100W
Output Current :
2.2A
Application :
LED street Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
88%
Size :
138*70*40mm
Description
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting

Features

1. Universal input voltage design(90Vac～305Vac)

2. Output voltage and current parameters support the client settings

3. High power factor, low harmonics

4. High efficiency design (up to 90%)

5. Protection Design: Short-circuit, over-voltage, over-temperature

6. suitable for LED Lighting

Parameter

Model ZF-HLB-80-36 ZF-HLB-80-42 ZF-HLB-80-48 ZF-HLB-80-54 Customized

output

 No load voltage 37VDC 43VDC 49VDC 55VDC /
output current 2.2A 1.86A 1.67A 1.5A /
output power 82W 82W 82W 82W 82W
Ripple&noise 300mV 300mV 300mV 300mV 300mV
Output voltage range 25-36VDC 25-42VDC 25-48VDC 38-54VDC /
Efficiency ≥87% ≥87% ≥88% ≥88% ≥88%
Current Error ±2% ±2% ±2% ±2% ±2%
Line regulation ±2% ±2% ±2% ±2% ±2%
Load regulation ±2% ±2% ±2% ±2% ±2%
Setup,rise time 500ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time 16ms / 115VAC, 230VAC

Input

 Input voltage 90-277V
Frequency range 47-63HZ
Power factory PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortion THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
AC current 1.2A / 115VAC 0.65A / 230VAC 0.45A / 277VAC
Inrush current COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Leakage current <0.75mA / 277VAC

Protection

 Over current Constant current limiting, recovers automatically after fault condition is removed
Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over temperature Shut down o/p voltage, re-power on to recover

Environmental

 Working Temp. Tcase= -40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp. Tcase= +80℃
Working Humidity 20 ~ 95% RH non-condensing
Temp.coefficient ±0.03%/℃(0 ~ 60℃)
Vibration 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Safety and standards

 Safety standards EN 61347-1:2008+A1:2011+A2:2013 ,EN 61347-2-13:2006, EN 62493:2010
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emission Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1
EMC immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Lightning Surge L/N-FG ±6KV
L-N ±5KV

Cables

 Rubber cable Input 3*1.0 m2
Rubber cable Output 2*1.0 m2

Product Dimensions

80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting

80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting

Company Information
80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
Production process

80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting

Packaging & Shipping

80W 25-36V 2400mA IP67 Led Waterproof Power supply For led Outdoor Lighting
