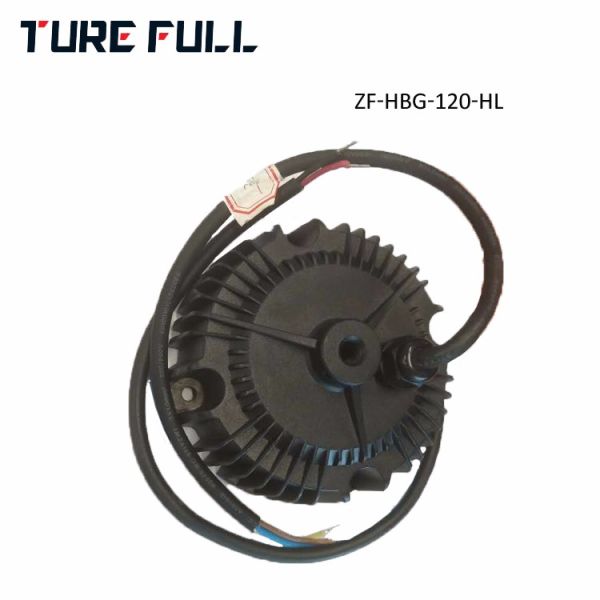

UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HBG-100-HL
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 - 499 Pieces
Price :
Negotiable
Output Power :
1 - 50W
Output Type :
Single
Input Voltage :
90-277V
Output Frequency :
47-63HZ
Output Current :
2.8A
Application :
LED Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
90%
Housing :
Full Aluminum
Capacitor :
Rubycon/king-box
Size :
130*68mm
Product Name :
UFO waterproof dimmable LED driver for 100W 36V LED high bay light
Output Voltage :
36V
Port :
shenzhen
Description
UFO waterproof dimmable LED driver for 100W 36V LED high bay light
Features and Specification

1. Adopt original imported IC,capacitor,Mos,conform to universal standards,Stable quality and stable performance.
2. Protection:OVP/SCP/OTP/OCP
3. Current Accuracy 3%,low Dc ripple ,high inversion frequency,low temperature,long lifespan
4. Wide input voltage 90-277V,100% load aging and full functional testing
5. high PFC>0.95,high efficiency>0.88
6. Power outdoor high power LED lighting
7. Full aluminum case,IP67 waterproof
8. 5 years warranty

Model-No.
ZF-HBG-100W-36
ZF-HBG-100W-48
ZF-HBG-100W-60
ZF-HBG-100W-72
output
DC voltage
27～36Vdc
36～48Vdc
48～60Vdc
60～72Vdc
Rated current
3.7～2.8A
2.8～2.0A
2.0～1.7A
1.7～1.4A
Rated power
100W
100W
100W
100W
Ripple current
400MA MAX
300MA MAX
200MA MAX
200MA MAX
Current Accuracy
3%
Input
input voltage
90-277V
Frequency Range
47-63HZ
PFC(typical value)
PF >0.99 at 100-277V ac @ Full load
Efficiency(typical value)
91%
92%
92%
93%
input current
0.8A Max@100-277V ac & full load
input surge current
277V ac input ,the MAX 40A
Protection design
output over-voltage protection
42V
56V
68V
80V
output short-circuit protection
Hiccup, short circuit removal can be recovered by itself
over-Temp.
85℃+/-10℃,start
environment
working Temp.
-40---+70℃
working humidity
20-95%RH
storage Temp. Hunidity
-40-+80℃,10-95%RH
IP grade
IP67
Vibration
10-500HZ,5G 12min/period,X,Y,Z Every 72 minutes
MTBF
MTBF
≥150Khrs MIL-HDBK-218F(25℃)
Safety and EMC
Safty standard
EN 61347-1:2008+A1:2011+A2:2013 , EN 61347-2-13:2006 , EN 62493:2010
pressurization
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
leakage current
0.75mA max @ 277V ac 50HZ input
Surge
Differential Mode:4KV common mode:6KV
Insulation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH
EMC radiation design
EN55015(CISPR15),EN61000-3-2;EN61000-3-3,GB17743,GB17625.1
EMC anti-interference design
EN61547 ,EN550452,EN61000-4-2,3,4,5,6,8,11,GB/T18595,GB17626
size
Size
130*44*32mm
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
Product Dimension
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
Components
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light

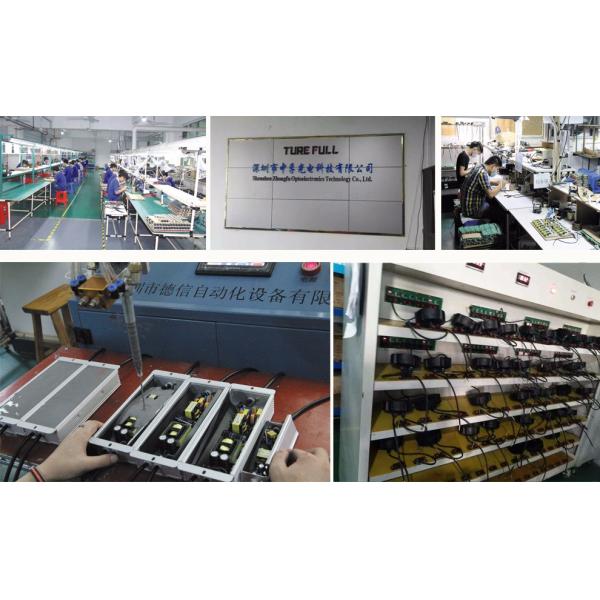

production process
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
Related Products
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light

ZF-HLB-100H-36

input voltage:90-277V

output voltage:27-36V/36-48V/48-60V/60-72V

current: 3A

ZF-HLB-200H-36

input voltage:90-277V
output voltage:27-36V/36-48V/48-60V/60-72V
current: 5.5A

ZF-HLB-240H-36

input voltage:90-277V
output voltage:27-36V/36-48V/48-60V/60-72V
current: 6.6A

Detailed Images

Company Profile

Our company was founded in 2009, is a professional waterproof lighting power supply, high-tech enterprise integrating R & D, manufacturing, trade, services and other functions in one,providing types of constant current LED driver is stable and reliable for all types of lighting project;

The company has nearly 3000 square meters of modern workshop, the existing staff of 100 people,the company passed the ISO9001 quality system certification, the product through the CCC,TUV, SGS, SAA, CE, ROHS etc. domestic and international certification; products are widely used in LED street lamp, tunnel lamp, flood lamp, spot lamp,solar street lights, panel lights,Tongdeng, has achieved the trust of customers at home and abroad.

UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
Exhibition
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
Packing & Delivery
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
LED Label

Put our Label,or we can print label base on your requirements,Logo is no problem

laser printing
laser printing is availabl,if possible,pls send your label file.
Foam

Anti-collision, anti-vibration

UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light

6 pcs in one Foam

one blank contain 1 pcs of led driver,6 pcs of driver in one Foam

Carton box

3 pcs of Foam in one carton box.

.

Finishing packing

The packing is conform with the transport safty standards.

UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
UFO Waterproof Dimming Led Driver Constant Current For Led High Bay Light
FAQ

Q1. Can I have a sample order for led driver?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led driver order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led driver?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for the formal order.

Fourthly We arrange the production.

Q6: Do you offer a guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 0.2%.

Secondly, during the guarantee period, we will send a new driver with a new order for a small quantity. For

defective batch products, we will repair them and resend them to you or we can discuss the solution

including recall according to a real situation.

The parameter can be customized, welcome to call me for inquiry, more information will be sent to you within 24 hours.

Welcome to visit our factory.

Looking forward to have a chance to cooperate with you.

Let's win the market!!!!!!
