Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-80W-36
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 - 499 Pieces
Price :
Negotiable
Output Power :
51 - 100W
Output Type :
Single
Input Voltage :
90-277V
Output Voltage :
36V
Output Frequency :
47-63HZ
Output Current :
2.2A
Application :
LED street Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
88%
Housing :
Full Aluminum
Capacitor :
Rubycon/king-box
Size :
138*70*40mm
Product Name :
high PFC constant current 80W waterproof led power supply IP67
Port :
shenzhen
Description
Product description

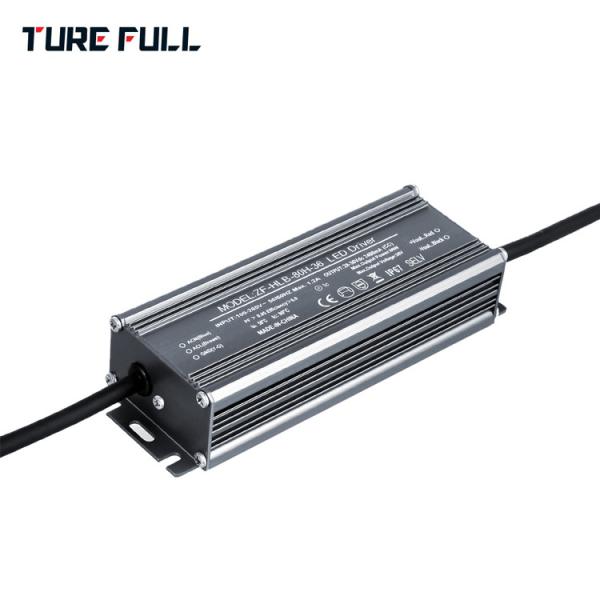

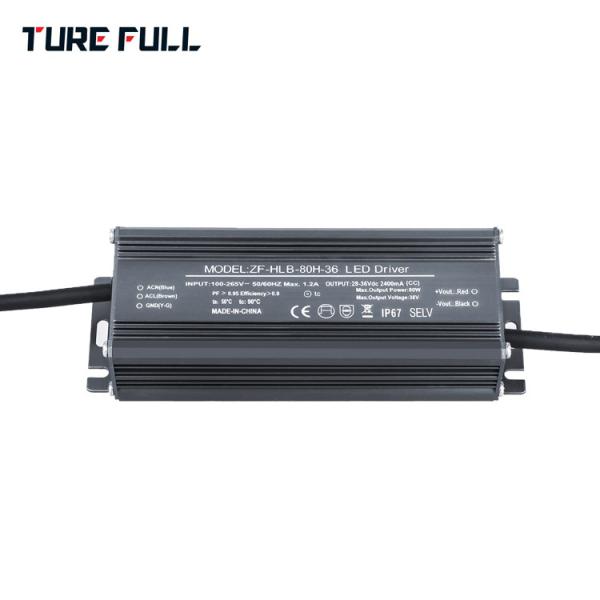

high PFC constant current 80W waterproof led power supply IP67
1.Features and Specification

1. Adopt original imported IC,capacitor,Mos,conform to universal standards,Stable quality and stable performance.

2. Protection:OVP/SCP/OTP/OCP

3. Current Accuracy 3%,low Dc ripple ,high inversion frequency,low temperature,long lifespan

4. Wide input voltage 90-277V,100% load aging and full functional testing

5. high PFC>0.95,high efficiency>0.88

6. Power outdoor high power LED lighting

7. Full aluminum case,IP67 waterproof

8. 5 years warranty

Model-No.
ZF-HLB-800W-36
ZF-HLB-80W-48
ZF-HLB-80W-60
ZF-HLB-80W-72
output
DC voltage
27-36V
36-48V
48-60V
60-72V
Rated current
3.0-2.2A
2.2-1.7A
1.7-1.3A
1.3-1.0A
Rated power
200W
200W
200W
200W
Ripple
150mVp-p
150mVp-p
200mVp-p
200mVp-p
Current Accuracy
+/--3%
Input
input voltage
90-277V
Frequency Range
47-63HZ
PFC(typical value)
PF >0.99 at 100-277V ac @ Full load
Efficiency(typical value)
88%
89%
90%
91%
input current
0.8A Max@100-277V ac & full load
input surge current
277V ac input ,the MAX 40A
Protection design
output over-voltage protection
>42V
>56V
>68V
>80V
output short-circuit protection
Hiccup, short circuit removal can be recovered by itself
over-Temp.
85℃+/-10℃,start
environment
working Temp.
-40---+70℃
working humidity
20-95%RH
storage Temp. Hunidity
-40-+80℃,10-95%RH
IP grade
IP67
Vibration
10-500HZ,5G 12min/period,X,Y,Z Every 72 minutes
MTBF
MTBF
≥150Khrs MIL-HDBK-218F(25℃)
Safety and EMC
Safty standard
EN 61347-1:2008+A1:2011+A2:2013 , EN 61347-2-13:2006 , EN 62493:2010
pressurization
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
leakage current
0.75mA max @ 277V ac 50HZ input
Surge
Differential Mode:4KV common mode:6KV
Insulation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH
EMC radiation design
EN55015(CISPR15),EN61000-3-2;EN61000-3-3,GB17743,GB17625.1
EMC anti-interference design
EN61547 ,EN550452,EN61000-4-2,3,4,5,6,8,11,GB/T18595,GB17626
size
Size
218*70*40mm
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
Components
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
Product Dimension
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
Production process
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
Detailed Images

Company Profile

Our company was founded in 2009, is a professional waterproof lighting power supply, high-tech enterprise integrating R & D, manufacturing, trade, services and other functions in one,providing types of constant current LED driver is stable and reliable for all types of lighting project;

The company has nearly 3000 square meters of modern workshop, the existing staff of 100 people,the company passed the ISO9001 quality system certification, the product through the CCC,TUV, SGS, SAA, CE, ROHS etc. domestic and international certification; products are widely used in LED street lamp, tunnel lamp, flood lamp, spot lamp,solar street lights, panel lights,Tongdeng, has achieved the trust of customers at home and abroad.

HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
Exhibition
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
Packing & Delivery
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
LED power supply

Put our Label,we can print label base on your requirements,Logo is no problem

Box

Packing in a small box,customized box is available..

One pcs in one small box

20-50 pcs of boxes in one carton box,also can put your Logo on the box.

HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
HLG-80H-24B 80w Laser Power Supply 24v 3a Dimming Consant Current Type
FAQ

Q1. Can I have a sample order for led driver?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led driver order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led driver?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for the formal order.

Fourthly We arrange the production.

Q6: Do you offer a guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 0.2%.

Secondly, during the guarantee period, we will send a new driver with a new order for a small quantity. For

defective batch products, we will repair them and resend them to you or we can discuss the solution

including recall according to a real situation
.

The parameter can be customized, welcome to call me for inquiry, more information will be sent to you within 24 hours.

Welcome to visit our factory.

Looking forward to have a chance to cooperate with you.

Let's win the market!!!!!!
