Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection
Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection
Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection
Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection
Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection
Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HBG-100-HL
Certification :
CE FCC ROHS
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
Use a small box,boxes inside a carton box
MOQ :
100 - 499 Pieces
Price :
Negotiable
Output Power :
101 - 200W
Output Type :
Single
Input Voltage :
90-277V
Output Frequency :
47-63HZ
Output Current :
2.7A
Application :
LED Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
Short Circuit
Efficiency :
88%
PFC :
0.99 Max
Colour :
Grey
Size :
151.68*66.5mm
Product Name :
100W round shape constant current dimmable led driver
Output Voltage :
36V
Port :
shenzhen
Description

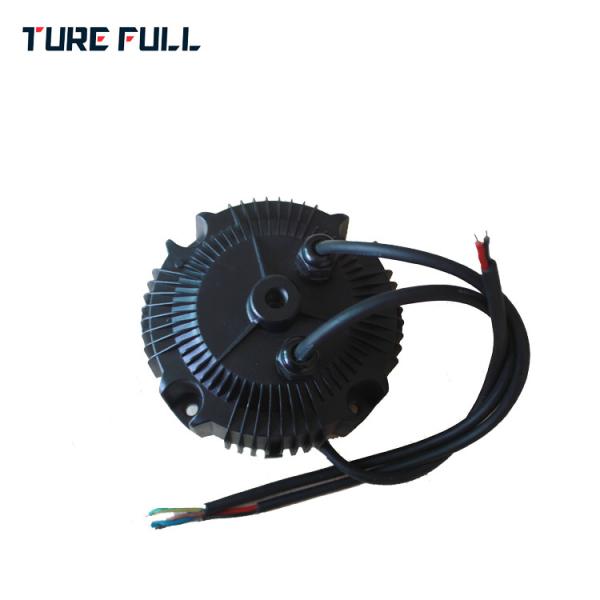

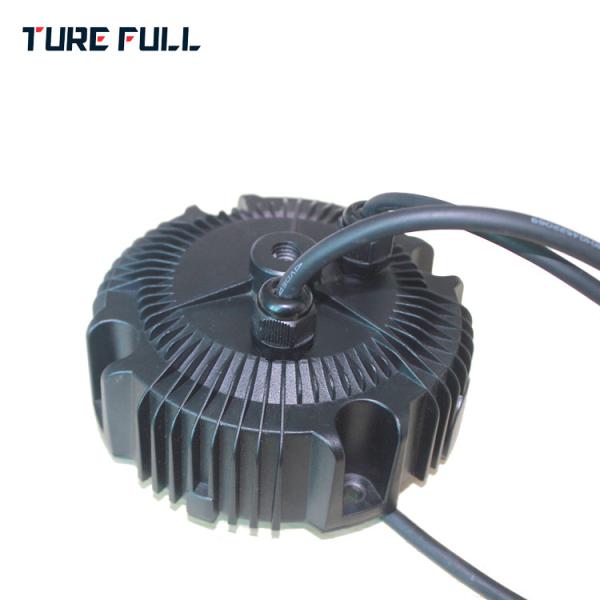

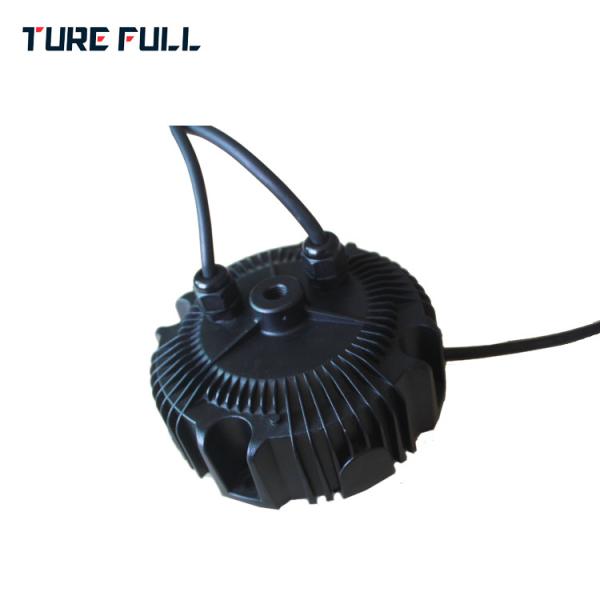

100W round shape constant current dimmable led driver

Features

1. Universal AC input voltage 90-277V

2. high PFC,high efficiency

3. protection design:over-voltage,short-circuit,over-temperature

4. output current and voltage can be customized

5. IP67 for indoor and outdoor using

6. CE ROHS,SAA,TUV,SAA certificate

7. 5 years warranty

Technical parameter

Model No. ZF-HBG-100-36 ZF-HBG-100-48 ZF-HBG-100-60 ZF-HBG-100-72
DC voltage 28-36V 36-48V 48-60V 60-72V
DC current 3.6-2.7A 2.7-2.0A 2.0-1.6A 1.6-1.38A
Rated power 100W 100W 100W 100W
Ripple current 400mA Max 300mA Max 200mAx 200mAx
Current Accuracy +/-3%
AC voltage 90-277V
Frequency 47-63HZ
PFC PF>0.99 at 100Vac & full load PF>0.97 at 230Vac & full load
Efficiency 91% 92% 92% 93%
input current 2.8A Max @100-277Vac &full load
surge current 277Vac input MAX 160A
output over-voltage protection >45V >60V >80V >110
OTP when TC reach to 90 degree +/-5 degree, output current decline and protect model.when solution is relieve,the product recover output
working temperature -40 degree --+60 degree
working humidity 0-95% RH
IP grage IP67
MTPF at least 50,000hours @45 degree
Certificate CE,ROHS,TUV,SAA,FCC
Size 151.68*66.5mm
Detailed Images

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Company Information

Shenzhen Zhongfu Optoelectronics Technology Co., Ltd. was established in 2009, is located in Longhua Dalang Industrial Zone, is a collection of scientific research, production and sales of high-tech enterprises, with a reliable quality assurance system and a clear business philosophy, advanced production Testing equipment, strong technical force and product development capabilities, as well as reliable after-sales service and technical support.

The company's outdoor lighting LED power supply is widely used in street lamps, high bay lighting, floodlights, tunnel lights, explosion-proof lights, etc., with high efficiency, high PFC, overvoltage, overload, over temperature, surge protection. Product quality tends to be stable, quality assurance, by domestic and foreign customers trust and support. Products have passed the CE ROHS, SAA, FCC, TUV, CCC certification, exported to Europe, the Americas.

Zhongfu will always uphold the "integrity, innovation and enterprising" business philosophy, and constantly innovate to meet the needs of different markets, our products will be more intelligent, innovative and diversified functions. Your needs is our pursuit, we look forward to working with you to create brilliant and contribute to the world energy-saving lighting.

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Certifications

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Trade Shows

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Packaging & Shipping

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

Led Lighting 100w Led Power Supply , Round Led Driver Short Circuit Protection

FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, please advise the size and Pantone Code of the logo.

3. What's the lead time for regular order?

3-5 days for order quantity lower than 100pc; For more quantity, usually 10 days.

4. Can I get a discount?

Yes, for the order quantity more than 500 pcs, please contact us to get the best price.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
