Black Dimmable Constant Current Led Driver Led Power Supply 36v Dual Aluminum
Black Dimmable Constant Current Led Driver Led Power Supply 36v Dual Aluminum
Black Dimmable Constant Current Led Driver Led Power Supply 36v Dual Aluminum
Black Dimmable Constant Current Led Driver Led Power Supply 36v Dual Aluminum
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-400
Certification :
CE ROHS FCC TUV SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
Small box + carton box
MOQ :
1 pcs
Price :
Negotiable
Delivery Time :
5-10 work days
Output Power :
400W
Output Voltage :
28-36V/36-48V/48-60V/60-72V
Output Frequency :
47-63HZ
Output Current :
11A
Warranty :
5 years warranty
Type :
constant current
Protection :
OVP/OTP/SCP/OCP
Efficiency :
88%
PFC :
95%
Size :
246.8*89*43.8mm
Description

400W Dimmable Constant Current Led Driver Power Supply 36v Dual Aluminum

Features

1. Universal AC input voltage 90-277V (up to 305V)

2. mode type:constant current

3. Function:1-10V dimmable led driver,also with current adjustable.

4. Protection desig:SCP/SVP/SOP,over-temperature

5. high PFC>0.98,high efficiency>90%

6. we assure 5 years warranty

Specification

Model ZF-HLB-400-36 ZF-HLB-400W-48 ZF-HLB-400-60 ZF-HLB-400-72 customized

output

 DC voltage 27-36v 36-48v 48-60v 60-72v customized
Rated current 15-11A 11-8.3A 8.3-6.7A 6.7-5.6A customized
Rated power 400W 400W 400W 400W 400W
Ripple&noise 150Mvp-p 150Mvp-p 200Mvp-p 100Mvp-p 100Mvp-p
voltage tolerance ±3% ±3% ±3% ±3% ±3%
Line regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Setup,rise time 300ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time 30ms / 115VAC, 230VAC

Input

 Input voltage 90-277V
Frequency range 47-63HZ
Power factory PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortion THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
Efficiency 90% 92% 92% 93% Hold
AC current 3.86A / 115VAC 1.93A / 230VAC 1.6A / 277VAC
Inrush current COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Leakage current <0.75mA / 277VAC

Protection

 Over current Constant current limiting, recovers automatically after fault condition is removed
Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over temperature Shut down o/p voltage, re-power on to recover

Environment

 Working Temp. T case= -40 ~ +60℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp. T case= +80℃
Working Humidity 20 ~ 95% RH non-condensing
Temp.coefficient ±0.03%/℃(0 ~ 60℃)
Vibration 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Safety and standards

 Safety standards EN 61347-1:2008+A1:2011+A2:2013 ,EN 61347-2-13:2006, EN 62493:2010
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emission Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1
EMC immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)

Others

 MTBF 1132K hrs min. Telcordia SR-332 (Bellcore) ; 338K hrs min. MIL-HDBK-217F (25℃)
Dimension L228*W70*H40mm
Packing 1.8kg/pcs 10pcs/15kg

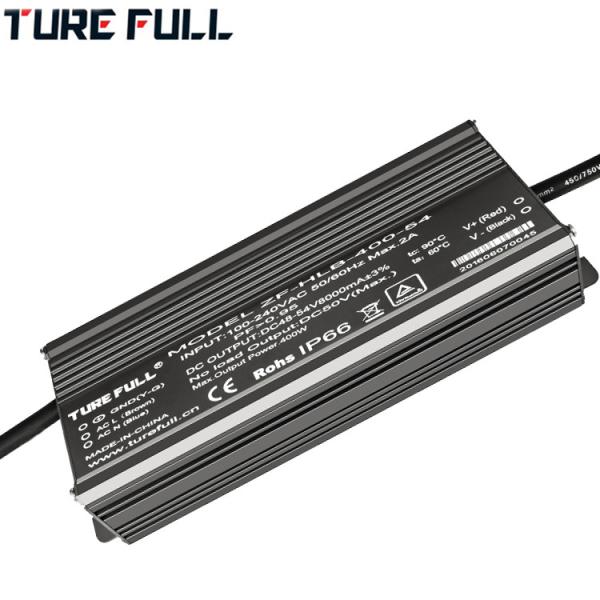

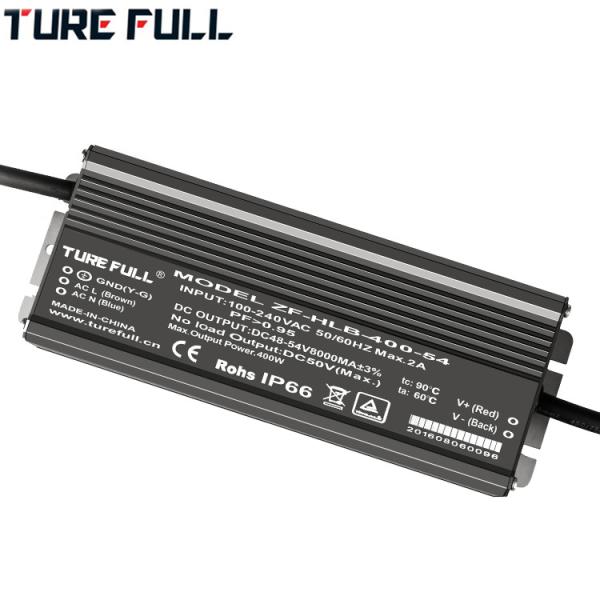

Picture for Reference

Black Dimmable Constant Current Led Driver Led Power Supply 36v Dual Aluminum

FAQ

1.What is the MOQ for each model?

For regular model,we have no MOQ

2.What's the delivery time for order

Sample order for 3-5 days,batch order for 7-10 days according to the quantity.

3.What's the certificate for the led driver?

CE,SAA,TUV,FCC........

4.What's the warranty guarranty?

We assure 3-5 years warranty,if the quality problem occuried,we will try our best to help to solve the problem,in cluding replacement.

5.What's the delivery and payment method

Delivery method:DHL,Fedex,UPS,by air,by sea....depend on your requirements.

Payment Method:T/T or Ali Escrow
