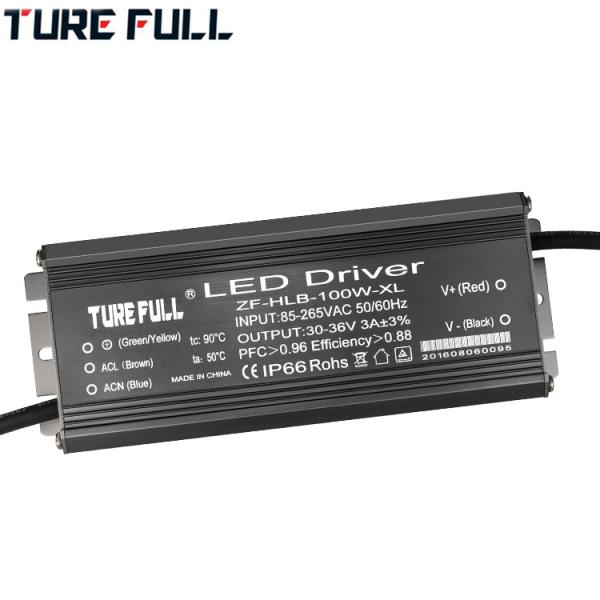

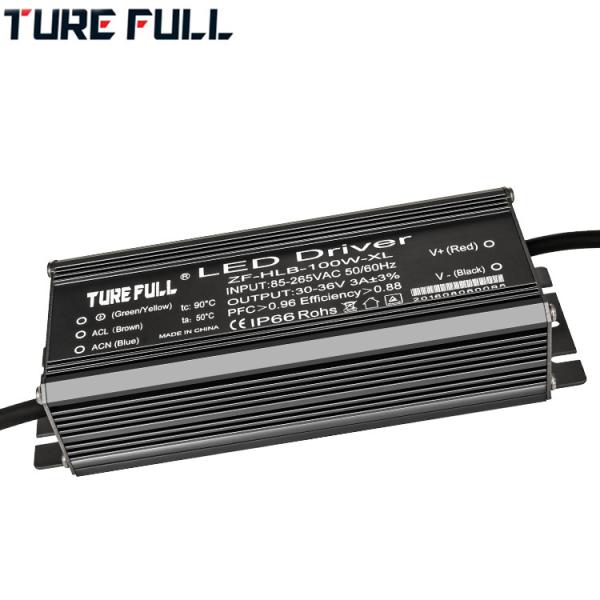

High Power Ip65 Cob 150w Street Light Led Driver 100w led power supply
High Power Ip65 Cob 150w Street Light Led Driver 100w led power supply
High Power Ip65 Cob 150w Street Light Led Driver 100w led power supply
High Power Ip65 Cob 150w Street Light Led Driver 100w led power supply
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-100W-XL
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 work days
Input Voltage :
90-277V
Output Current :
3 A
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Capacitor :
Rubycon/king-box
Size :
158*70*40mm
Port :
shenzhen
Description
High power outdoor waterproof ip65 cob 100w 150w led street light 36V led driver
The parameter can be customized, welcome to call me for inquiry, more information will be sent to you within 24 hours.
Welcome to visit our factory.
Looking forward to have a chance to cooperate with you.
Let's win the market!!!!!!
Features
1. Universal input voltage 100-277V

2. constant current type with current adjustable and 1-10V dimmable led driver
3. protection design:SCP/OVP/OCP
4. PFC >0.98,efficiency>88%
5. IP67 waterproof fill in with silicon gel
6. we assure 5 years warranty,any problem,we will provide technical support.

Parameter

Model-No.
ZF-HLB-100W-36
ZF-HLB-100W-48
ZF-HLB-100W-60
ZF-HLB-100W-72
output
DC voltage
27-36V
36-48V
48-60V
60-72V
Rated current
3.5-2.8A
2.8-2.0A
2.0-1.7A
2.0-1.4A
Rated power
100W
100W
100W
100W
Ripple
150mVp-p
150mVp-p
200mVp-p
200mVp-p
Current Accuracy
+/-3%
Input
input voltage
90-277V
Frequency Range
47-63HZ
PFC(typical value)
PF >0.99 at 100-277V ac @ Full load
Efficiency(typical value)
88%
89%
90%
91%
input current
0.8A Max@100-277V ac & full load
input surge current
277V ac input ,the MAX 40A
Protection design
output over-voltage protection
>42V
>56V
>68V
>80V
output short-circuit protection
Hiccup, short circuit removal can be recovered by itself
over-Temp.
85℃+/-10℃,start
environment
working Temp.
-40---+70℃
working humidity
20-95%RH
storage Temp. Hunidity
-40-+80℃,10-95%RH
IP grade
IP67
Vibration
10-500HZ,5G 12min/period,X,Y,Z Every 72 minutes
MTBF
MTBF
≥150Khrs MIL-HDBK-218F(25℃)
Safety and EMC
Safty standard
EN 61347-1:2008+A1:2011+A2:2013 , EN 61347-2-13:2006 , EN 62493:2010
pressurization
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
leakage current
0.75mA max @ 277V ac 50HZ input
Surge
Differential Mode:4KV common mode:6KV
Insulation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH
EMC radiation design
EN55015(CISPR15),EN61000-3-2;EN61000-3-3,GB17743,GB17625.1
EMC anti-interference design
EN61547 ,EN550452,EN61000-4-2,3,4,5,6,8,11,GB/T18595,GB17626
size
Size
218*70*40mm
Product Dimension
High Power Ip65 Cob 150w Street Light Led Driver 100w led power supply
FAQ

Q1. Can I have a sample order for led driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led driver order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led driver?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for the formal order.
Fourthly We arrange the production.
Q6: Do you offer a guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send a new driver with a new order for a small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including recall according to a real situation.
