Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-240W-XL-7901
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
Carton Box
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 work days
Output Power :
201 - 300W
Output Voltage :
36V
Output Current :
5A
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Housing :
Full Aluminum
Size :
208*70*40mm
Port :
shenzhen
Description

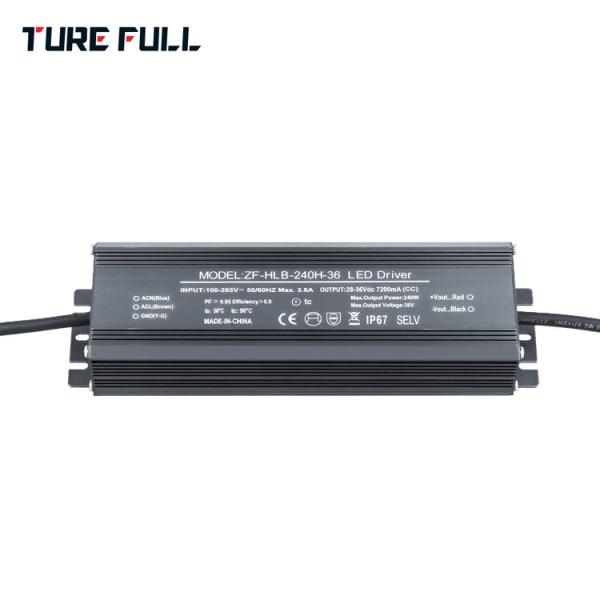

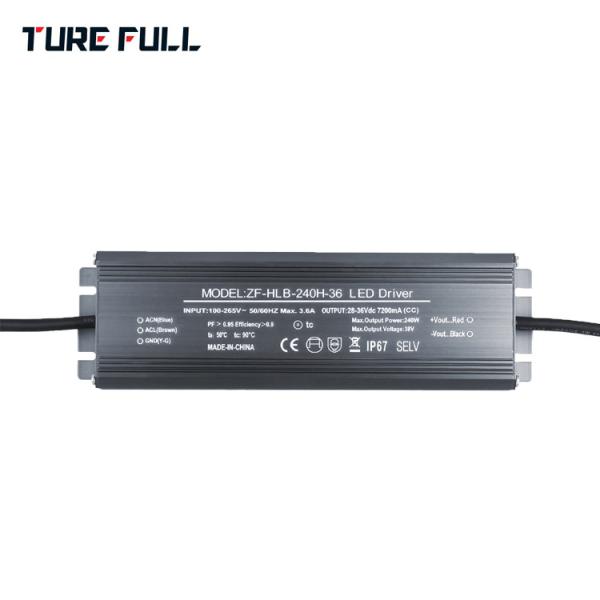

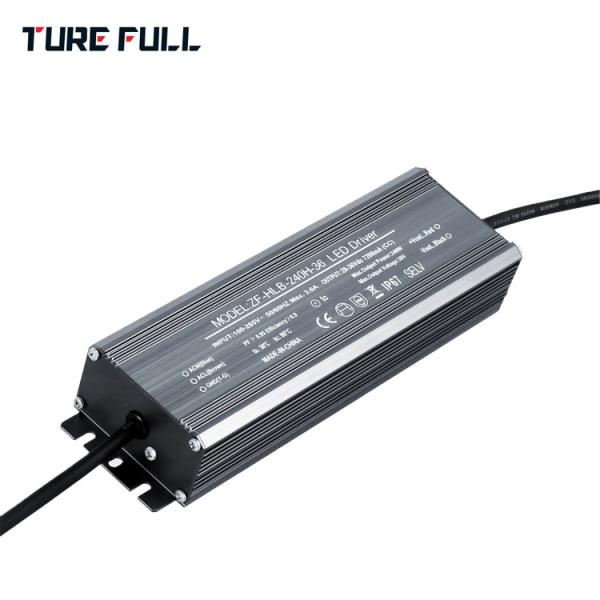

Aluminum case 240W 36V power supply waterproof led driver for led strip light

Features

  • Universal AC input (90-277V)

  • high PFC,high efficiency,low ripple

  • output current and voltage can be customized

  • protection design；OCP/OTP/OVP/SCP

  • IP67 grade

  • Three-in-one dimming function

  • 5 years warranty

Parameters

Model ZF-HLB-240-36 ZF-HLB-240-42 ZF-HLB-240-48 ZF-HLB-240-54 Customized

output

 No load voltage 37VDC 43VDC 49VDC 55VDC /
output current 6.6A 5.7A 5A 4.5A /
output power 243W 243W 243W 243W 243W
Ripple&noise 300mV 300mV 300mV 300mV 300mV
Output voltage range 25-36VDC 25-42VDC 25-48VDC 38-54VDC /
Efficiency ≥91% ≥92% ≥92% ≥92% ≥92%
Current Error ±2% ±2% ±2% ±2% ±2%
Line regulation ±2% ±2% ±2% ±2% ±2%
Load regulation ±2% ±2% ±2% ±2% ±2%
Setup,rise time 200ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time 10ms / 115VAC, 230VAC

Input

 Input voltage 90-277V
Frequency range 47-63HZ
Power factory PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortion THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
AC current 3.4A / 115VAC 2A / 230VAC 1.5A / 277VAC
Inrush current COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Leakage current <0.75mA / 277VAC

Dimension and inner Picture

Aluminum Case Black 240w Power Supply , Led Strip Light 36v Led DriverAluminum Case Black 240w Power Supply , Led Strip Light 36v Led Driver

Production process

Aluminum Case Black 240w Power Supply , Led Strip Light 36v Led Driver

Packaging & Shipping

Aluminum Case Black 240w Power Supply , Led Strip Light 36v Led Driver

Aluminum Case Black 240w Power Supply , Led Strip Light 36v Led Driver

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different
