60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-60W-XL
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 - 499 Pieces
Price :
Negotiable
Output Power :
60W
Output Type :
Single
Output Current :
1.6
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
88%
Size :
188*70*40mm
Description
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power

Features

1. Universal input voltage(90-277V)

2. Output current and voltage can be customized

3. Support(1-10V/Pwm/resistance three-in-one online dimming

4. high PFC,low ripple

5. high efficiency(up to 93%)

6. protection design:OVP/OCP/SCP/OTP)

7. 5 years warranty

Parameters

ModelZF-HLB-60-36ZF-HLB-60-42ZF-HLB-60-48ZF-HLB-60-54Customized





output

No load voltage37VDC43VDC49VDC55VDC/
output current1.68A1.45A1.28A1.12A/
output power62W62W62W62W62W
Ripple&noise300mV300mV300mV300mV300mV
Output voltage range25-36VDC25-42VDC25-48VDC38-54VDC/
Efficiency≥86%≥86%≥87%≥88%≥88%
Current Error±2%±2%±2%±2%±2%
Line regulation±2%±2%±2%±2%±2%
Load regulation±2%±2%±2%±2%±2%
Setup,rise time500ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time16ms / 115VAC, 230VAC





Input

Input voltage90-277V
Frequency range47-63HZ
Power factoryPF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortionTHD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
AC current0.8A / 115VAC 0.45A / 230VAC 0.35A / 277VAC
Inrush currentCOLD START 55A(t width=265μs measured at 50% I peak) at 230VAC; Per NEMA 410
Leakage current<0.75mA / 277VAC


Protection

Over currentConstant current limiting, recovers automatically after fault condition is removed
Short circuitHiccup mode, recovers automatically after fault condition is removed
Over temperatureShut down o/p voltage, re-power on to recover




Environmental

Working Temp.T case= -40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp.T case= +80℃
Working Humidity20 ~ 95% RH non-condensing
Temp.coefficient±0.03%/℃(0 ~ 60℃)
Vibration10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes




Safety and standards

Safety standardsEN 61347-1:2008+A1:2011+A2:2013 ,EN 61347-2-13:2006, EN 62493:2010
Isolation resistanceI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Withstand voltageI/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emissionCompliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1
EMC immunityCompliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Lightning SurgeL/N-FG±6KV
L-N±5KV


Cables

Rubber cableInput 3*1.0 m2
Rubber cableOutput 2*1.0 m2
CaseFull AluminumSilicone filled filling


Others

MTBF≥150Khrs MIL-HDBK-217F(25℃)
DimensionL130*W44*H32mm
Packing0.24kg/pcs 20pcs/4.8kg

Product Category

60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power
60w 70w 80w Led Driver 36v Constant Current IP67 Electronic 2100mA Ac to Dc Power

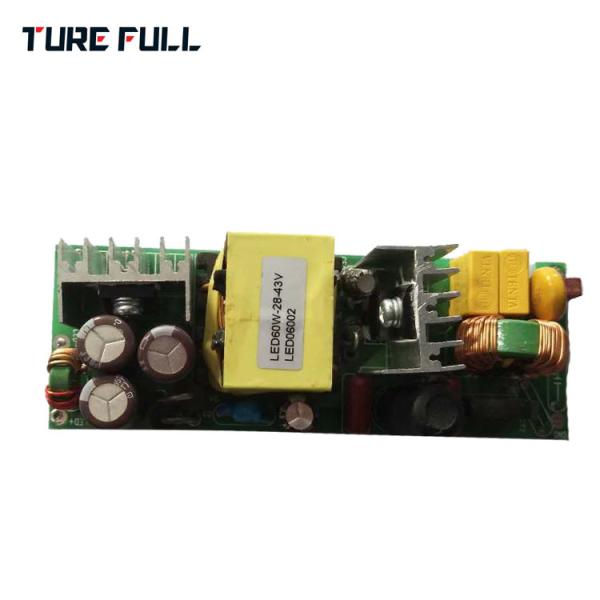

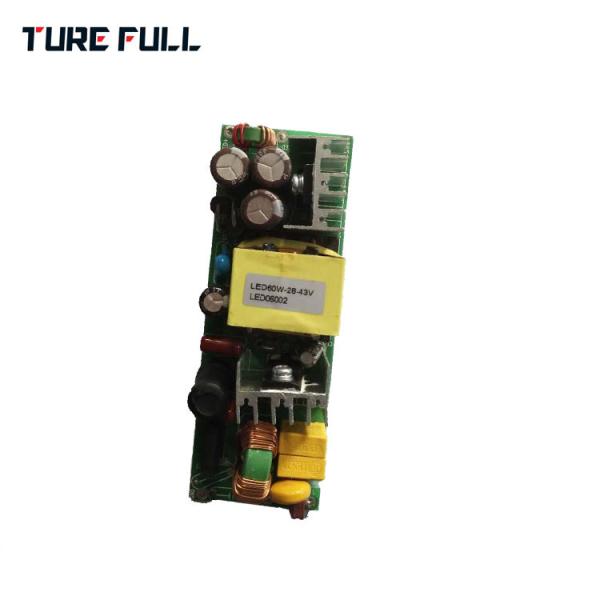

production processing
