Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-60W-XL
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 - 499 Pieces
Price :
Negotiable
Output Power :
60W
Output Type :
Single
Input Voltage :
Other
Output Voltage :
42V
Output Current :
1.5
Protection :
OVP/OCP/SCP/OTP
Efficiency :
88%
Housing :
Full Aluminum
Size :
130*45*33
Description
LED Flood light led driver 60W 42V 1500mA constant current waterproof Led driver

Features

1. Universal input voltage(90-277V)

2. Output current and voltage can be customized

3. Support(1-10V/Pwm/resistance three-in-one online dimming

4. high PFC,low ripple

5. high efficiency(up to 93%)

6. protection design:OVP/OCP/SCP/OTP)

7. 5 years warranty

Parameters

Model ZF-HLB-60-36 ZF-HLB-60-42 ZF-HLB-60-48 ZF-HLB-60-54 Customized

output

 No load voltage 37VDC 43VDC 49VDC 55VDC /
output current 1.68A 1.45A 1.28A 1.12A /
output power 62W 62W 62W 62W 62W
Ripple&noise 300mV 300mV 300mV 300mV 300mV
Output voltage range 25-36VDC 25-42VDC 25-48VDC 38-54VDC /
Efficiency ≥86% ≥86% ≥87% ≥88% ≥88%
Current Error ±2% ±2% ±2% ±2% ±2%
Line regulation ±2% ±2% ±2% ±2% ±2%
Load regulation ±2% ±2% ±2% ±2% ±2%
Setup,rise time 500ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time 16ms / 115VAC, 230VAC

Input

 Input voltage 90-277V
Frequency range 47-63HZ
Power factory PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortion THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
AC current 0.8A / 115VAC 0.45A / 230VAC 0.35A / 277VAC
Inrush current COLD START 55A(t width=265μs measured at 50% I peak) at 230VAC; Per NEMA 410
Leakage current <0.75mA / 277VAC

Protection

 Over current Constant current limiting, recovers automatically after fault condition is removed
Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over temperature Shut down o/p voltage, re-power on to recover

Environmental

 Working Temp. T case= -40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp. T case= +80℃
Working Humidity 20 ~ 95% RH non-condensing
Temp.coefficient ±0.03%/℃(0 ~ 60℃)
Vibration 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Safety and standards

 Safety standards EN 61347-1:2008+A1:2011+A2:2013 ,EN 61347-2-13:2006, EN 62493:2010
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emission Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1
EMC immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Lightning Surge L/N-FG ±6KV
L-N ±5KV

Cables

 Rubber cable Input 3*1.0 m2
Rubber cable Output 2*1.0 m2
Case Full Aluminum Silicone filled filling

Others

 MTBF ≥150Khrs MIL-HDBK-217F(25℃)
Dimension L130*W44*H32mm
Packing 0.24kg/pcs 20pcs/4.8kg

Product Dimensions

42V 1500mA Waterproof Electronic LED Driver , Flood Light Led Driver 60W

42V 1500mA Waterproof Electronic LED Driver , Flood Light Led Driver 60W

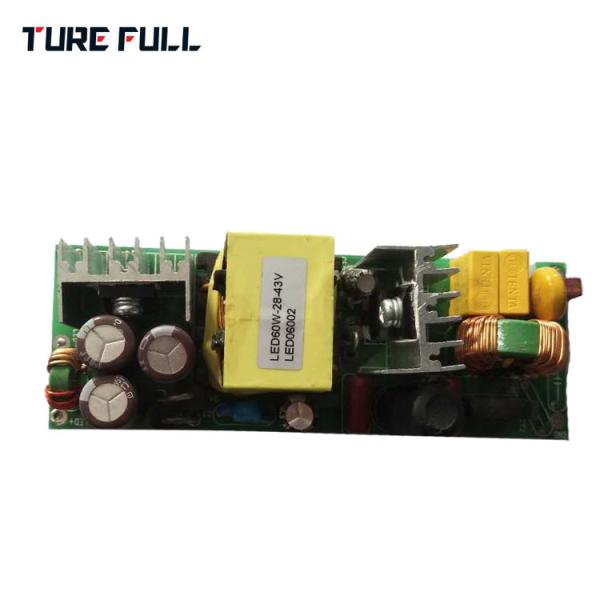

production processing

42V 1500mA Waterproof Electronic LED Driver , Flood Light Led Driver 60W

RFQ

1. What's the MOQ

We have no MOQ,except customized product.

2. What's the delivery time?

3-5 days for sample order,7-10 days for batch order.

3. what's the delivery method?

DHL.Fedex,UPS,by air,by sea...

4. How many staff in your company?

We have about 50 people in our company.

5. What's the guarranty years for your LED drivers.

We assure 3-5 years,if the quality problem occured at the period time of guarranty years.We will ask our engineer to analysis the problem,then we will make the solution to deal with the problem,including make replacement.
