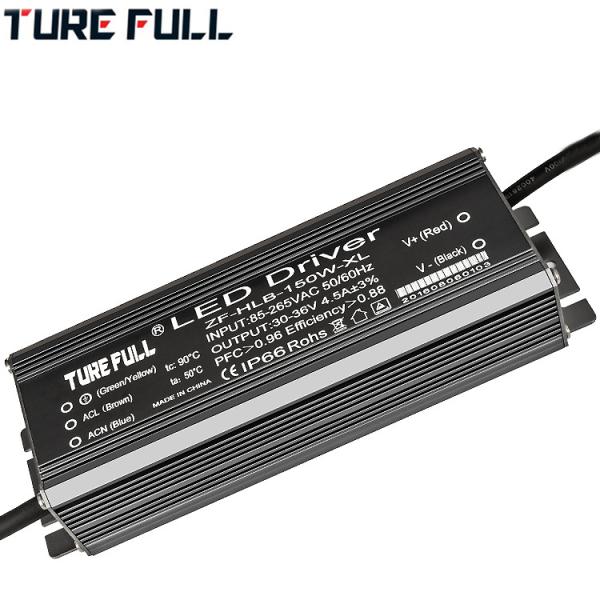

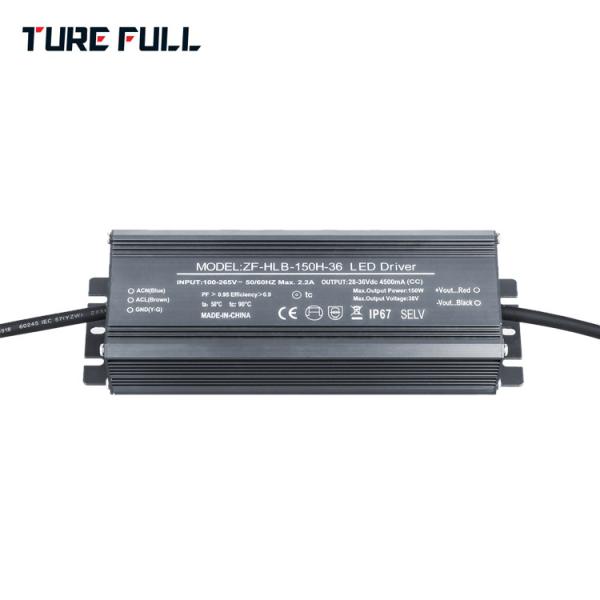

Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
Turefull
Model Number :
ZF-HLB-150W-36
Certification :
CE/ROHS/FCC/TUV/SAA
Supply Ability :
10000 Piece/Pieces per Month
Packaging Details :
one piece in small box,20-50 piece in one carton box
MOQ :
1 - 499 Pieces
Price :
Negotiable
Output Power :
101 - 200W
Output Type :
Single
Input Voltage :
Other
Output Voltage :
36V
Output Frequency :
47-63HZ
Output Current :
5A
Application :
LED Lighting
Warranty :
5 Years
Type :
Consant Current
Protection :
OVP/OCP/SCP/OTP
Efficiency :
88%
Housing :
Full Aluminum
Capacitor :
Rubycon/king-box
Size :
208*70*40mm
Product Name :
Open frame 36V 150W led driver for led street lighting
Port :
shenzhen
Description
5A 36V quality guarantee 150W waterproof 0-10v dimming LED power supply

Features

1. Universal input voltage design(90Vac～305Vac)

2. Output voltage and current parameters support the client settings

3. High power factor, low harmonics

4. High efficiency design (up to 90%)

5. Protection Design: Short-circuit, over-voltage, over-temperature

6. suitable for LED Lightin

Parameter

Model ZF-HLB-150-36 ZF-HLB-150-42 ZF-HLB-150-48 ZF-HLB-150-54 Customized

output

 No load voltage 37VDC 43VDC 49VDC 55VDC /
output current 4.2A 3.6A 3.15A 2.8A /
output power 153W 153W 153W 153W 153W
Ripple&noise 300mV 300mV 300mV 300mV 300mV
Output voltage range 25-36VDC 25-42VDC 25-48VDC 38-54VDC /
Efficiency ≥91% ≥92% ≥92% ≥92% ≥88%
Current Error ±2% ±2% ±2% ±2% ±2%
Line regulation ±2% ±2% ±2% ±2% ±2%
Load regulation ±2% ±2% ±2% ±2% ±2%
Setup,rise time 200ms,80ms/115VAC 500ms,80ms/230VAC
Hold up time 10ms / 115VAC, 230VAC

Input

 Input voltage 90-277V
Frequency range 47-63HZ
Power factory PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
Total Harmonic distortion THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
AC current 2.2A / 115VAC 1.2A / 230VAC 0.9A / 277VAC
Inrush current COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Leakage current <0.75mA / 277VAC

Protection

 Over current Constant current limiting, recovers automatically after fault condition is removed
Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over temperature Shut down o/p voltage, re-power on to recover

Environmental

 Working Temp. T case= -40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Max.Case Temp. T case= +80℃
Working Humidity 20 ~ 95% RH non-condensing
Temp.coefficient ±0.03%/℃(0 ~ 60℃)
Vibration 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Safety and standards

 Safety standards EN 61347-1:2008+A1:2011+A2:2013 ,EN 61347-2-13:2006, EN 62493:2010
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
EMC emission Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1
EMC immunity Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Lightning Surge L/N-FG 6KV
L-N 5KV

Cables

 Rubber cable Input 3*1.0 m2
Rubber cable Output 2*1.0 m2
Case Full Aluminum Silicone filled filling

Product Dimensions

Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection

Inner accessories

Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection

Exhibition

Packaging & Shipping

Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection

Shipping

INTERNATIONAL AIR MAIL

Payment

Fast Delivery

Different amount of time will be required for different

Safety 5a Led Driver 208* 70 * 40 Mm Ovp / Ocp / Scp / Otp Protection
