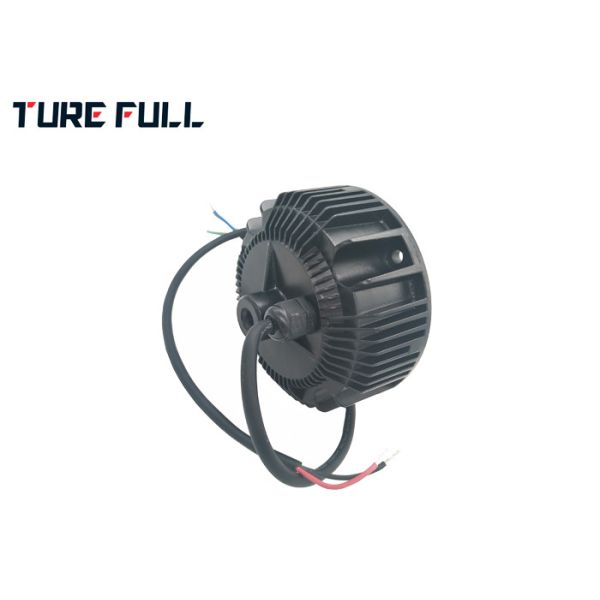

Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty
Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty
Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty
Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty
Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty
Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty
Specifications
Brand Name :
Turefull
Model Number :
ZF-HBG-100F130
Certification :
SAA,CE
Place of Origin :
Shenzhen
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
7-10 days
Packaging Details :
Carton Box
Model NO. :
ZF-HBG-150F130
output voltage :
90-130V
Current :
1.15A
PFC :
0.98
Efficiency :
94%
Warranty :
5 years
Function :
1-10V dimmable
input voltage :
90-277V
Case :
Aluminum
Description

150w led high bay light driver waterproof non isolated 1800ma IP67

Features:

1. Wide input range 90-277VAC with active PFC function

2. Efficiency can be 93%

3. non-isolated type

4. IP67 rated constant power supply

5. 3 years warranty

Tehnical parameter

ModelZF-HBG-150F130ZF-HBG-150F200









Output


output voltage90-130VDC220-300VDC
Output current(Typ)1.0-1.5A0.5-0.68A
Output power(MAX)150W150W
Ripple and Noise Re.250mA Max30mA Max
Efficiency(Typ)≥94%≥94%
Current error(MAX)±3%±3%
Line regulation±0.5%±0.5%
Load regulation±0.5%±0.5%
Start time Re.31s Max.@220Vac input&full load,2S Max.@100Vac input&full load
output current rise time300mS Max.@full load

Input

Input voltage range90-277Vac
Frequency range47-63HZ
Power factor(Typ)PF≥0.97 at 100Vac&full load,PF>0.97 at 230Vac&full load
AC current(Typ)1.5A Max@100-277Vac&full load
Surge current(Typ)277Vac input,Max 100A

Protection

Short-circuitProtect mode:Hi-cup,It can be recovered by itself after short-circuit removal
EnvironmetOperating Temp.-40---+60℃
Operating Humidity0-95%RH
Storage temperature, humidity-40-+80℃,0-95%RH
IP gradeIP65/IP67
vibration resistance10-500HZ,5G 12 Min/Cycle,72 minutes each for the XMY Z axis
Safety and EMC Safety specification note 5EN 61347-1:2008+A1:2011+A2:2013 , EN 61347-2-13:2006 , EN 62493:2010
EMIEN55015 (CISPR15),EN61000-3-2 ;EN610003-3,GB17743,GB17625.1
EMCEN61547;EN55042,EN61000-4-2,3,4,5,6,8,11,GB/T18596,GB17626
Lightning surge
L/N-GL/N-FG,±6KV
L-NL-N,±4KV
Cables
rubber covered wireInput line 3*1²
rubber covered wireOutput line 2*1²
caseFull aluminum caseSilica gel filling

Others

MTBF≥150Khrs MIL-HDBK-217F(25℃)
Main body sizeD151.68*H66.5mm
weight


Dimension Size

Durable Non Isolated LED Driver , High Power Led Driver 5 Years Warranty

FAQ

1. Are you trading company or manufacturer ?
A: We are manufacturer.

2. Do you have your own R&D team?
A: Yes, we can customize products as your requirements.

3.Do you provide free samples ?
A: Yes, We can send free sampls if you can be responsible for freight cost.

4.How about the quality?
A: We have the best professional engineer and strict QA and QC system.
We have CE, UL, ROHS, ISO9001 certificate.

5. Can we be your distributor?
A: We are looking for distributor and agent all over the world.

6. How’s the package?
A: Normally are cartons, but also we can pack it according to your requirements.

7. What’s the payment term?
A: We accept T/T, Paypal.

9. How’s the delivery time?
A: It depends on the quantity you need, 1-15 days usually.

10. Where is your shipping port?
A: Normally shenzhen.
