Specifications
Brand Name :
benwei
Model Number :
BW-T8
Certification :
CE,ROHS,TUV
Place of Origin :
CN
MOQ :
2pcs
Price :
USD 8.5-19.8 per unit
Payment Terms :
L/C, T/T,PayPal
Supply Ability :
10000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
25pcs/carton
Tube Materials :
Aluminum Body+ PC cover
PF :
>0.90
Beam angle :
120-180 degree
Working lifetime(hour) :
50000 hours
Input voltage :
85-265V AC, 100-277 AC, 12V DC, 24V DC, 48V DC
Led chip :
SMD 2835, Epistar , Samsung
Flicker free :
No Flicker
Wavelength :
No wavelength below 500nm
Colour temperature :
Yellow 500nm
Lamp base :
G13
Description

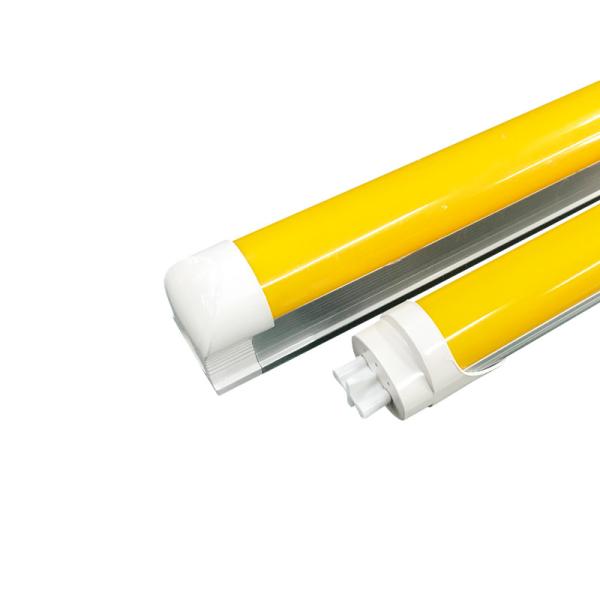

18W 20W Yellow Cover Filter Light Tube T8 0-10V dimmable No wavelength below 500nm

Feature of Yellow cover filter light tube T8:

1. Low cost with higher ratio of function and price

2. Energy efficient and environment friendly

3. Better heat-sink design, lights temperature won't be higher than 45 ℃

4. Swivel base to adjust angle you need

5. Isolated driver, reach international security standard, which is developed by R&D center

6. Use LumenMax, directly from Taiwan

Specifications of Yellow cover filter light tube T8:

Power 9W / 10W / 18W / 20W / 23W / 25W
Size 60cm/2FT, 120cm/4FT, 150cm/5FT, 240cm/8FT
Beam angle 120-180 degree
Wavelength No wavelength below 500nm
Color Rendering Index(Ra) >83 or >90
Colour temperature Yellow 580nm
PF >0.90
Support Dimmer Triac dimmable or 0-10V dimmable
Flicker free No Flicker
Material Aluminum Body+ PC cover
Input Voltage(V) 85-265V AC,100-277 AC,12V DC, 24V DC, 48V DC
Lifespan (hours) 50000 hours
warranty 5years
Led chip SMD 2835 LED, Epistar , Samsung
Cover Yellow Cover
Lamp base G13


More pictures of Yellow cover filter light tube T8:


18W 20W Yellow Cover Filter Light Tube T8 0-10V dimmable No wavelength below 500nm

18W 20W Yellow Cover Filter Light Tube T8 0-10V dimmable No wavelength below 500nm

18W 20W Yellow Cover Filter Light Tube T8 0-10V dimmable No wavelength below 500nm

18W 20W Yellow Cover Filter Light Tube T8 0-10V dimmable No wavelength below 500nm

1. Yellow cover filter light tube T8 is a somewhat unique tube. It is typically used in circuit board factories, film studios, lens manufacturers, and other locations with stringent lighting requirements. Conventional bulbs cannot be used directly because they will be subjected to blue or ultraviolet light. the color white.

2. In the semiconductor industry, photoresistors are needed to install integrated circuit modules. Any light with a wavelength lower than 500 nm is not permitted to be used in the operating room's lighting during this procedure. The yellow cover filter light tube T8 is the ideal fluorescent bulb for this usage. Fluorescent light was then painted on top of a yellow filter layer that was built into the inner layer of the glass tube and can block any light with wavelengths below 500 nm. powder able to block light of a 500 nm or shorter wavelength.

3. One more name for yellow cover filter light tube T8 is anti-ultraviolet tubes. Its main purpose is to filter harmful UV rays. Since the visible light spectrum falls inside the yellow light spectrum, the displayed color temperature spectrum appears yellow after filtering. There are a few exceptions though, and in those circumstances the lamp tube's color after filtering is brown. In any case, the lamp is certified and is capable of performing the intended function as long as there are no UV photons left in the spectrum after the test.

Application of Yellow cover filter light tube T8:

18W 20W Yellow Cover Filter Light Tube T8 0-10V dimmable No wavelength below 500nm

Yellow cover filter light tube T8 is commonly found in museums, jewelry, gold jewelry, diamond watch shops, art galleries, photo studios, galleries, high-end boutique clothing, hospitals, clinics, antique cultural relics and art collections, IC semiconductor electronics factories, exposure rooms, clean rooms, film workshops, lighting rooms, TFT LCD panel factories, famous brand clothing stores, photo studios, and color inspection places for ink printing

FAQs:
1. Can I have a led light sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


2. How long will it take?
A:Sample needs 2-4 working days, mass production time needs 12-18 working days


3. How are the goods shipped, and how long does it take for them to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
