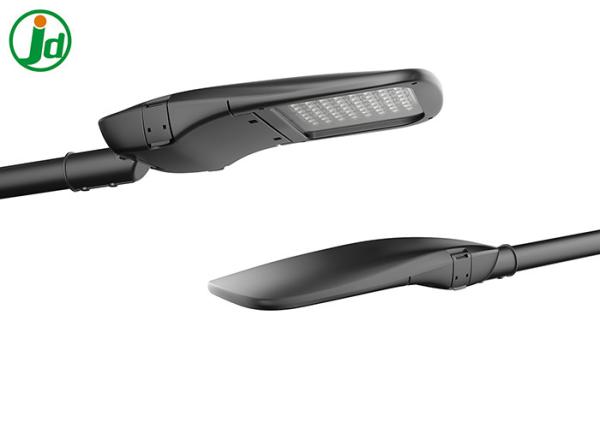

2019 Modern design aluminum yard pathway post top led garden lights
2019 Modern design aluminum yard pathway post top led garden lights
Specifications
Brand Name :
JD
Model Number :
JD-1047
Certification :
EMC.LVD.CE.CB
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000pcs/Month
Delivery Time :
15-30days
Packaging Details :
5 layer cartons
Material :
ADC12 die cast aluminum
Color :
grey/dark grey/black
Ip rating :
IP66
Working temperature(℃) :
-45-50
Cri (ra>) :
75
Input voltage(v) :
100-277VAC
Application :
Roadway,outdoor,garden
Lamp luminous efficiency(lm/w) :
100
Warranty(year) :
5
Working lifetime(hour) :
50008
Description

2019 Modern design aluminum yard pathway post top led garden lights

Materials

Housing:ADC12 die-cast aluminum

Cover:Toughened cambered/flat glass
Screws:304 stainless screws

Electrial (upon request)

Class I or Class Ⅱ(upon request)

Input voltage:90-305VAC/50-60Hz,170-3055VAC/50-60Hz

10KV/20KV SPD(upon request)

Power automatically switch off when opening

Dimming(upon request)

Dali
1-10V
PWM
Astro DIM for autonomous dimming with five independent levels
Smart control management system

Features :

* Suitable to diameter 76mm pole
* IES files are available
* 5 years warranty

* IP66 waterproof rating
* Different type lens for choice
* Working environment in -40℃to 55℃
* High brightness LED chips 100lm/w
* Dusk to dawn Photocell function available
* 0-10V Dimmable/DALI/PMMA available
* CE/ROHS/LM79/LM80 for quality assurance and safety operation


Specification :

Model JD-1047A 30W JD-1047B 40W JD-1047C 50W JD-1047D 60W JD-1047E 70W JD-1047F 100W JD-1047G 120W JD-1047H 150W JD-1047I 200W
Wattage 30W 40W 50W 60W 70W 100W 120W 150W 200W
Beam Angle 150*50/120*120
Luminous Flux 3900lm 4800lm 6500lm 7800lm 9100lm 13000 15600lm 19500lm 26000lm
Color Temperature 2700K~6500K
Input Voltage AC100-277V, 50-60Hz
Life Hours 50,000
LED Chip led/CREE XTE
CRI Ra>80
PF >0.92
Surge Voltage 10V/20KV
IP Rating IP66
Dimension 573*245*120MM 717*320*130MM 867*392*159MM

Product Details :
2019 Modern design aluminum yard pathway post top led garden lights
2019 Modern design aluminum yard pathway post top led garden lights
2019 Modern design aluminum yard pathway post top led garden lights
Product dimension:

2019 Modern design aluminum yard pathway post top led garden lights

2019 Modern design aluminum yard pathway post top led garden lights

Product distribution curve :

2019 Modern design aluminum yard pathway post top led garden lights

2019 Modern design aluminum yard pathway post top led garden lights

2019 Modern design aluminum yard pathway post top led garden lights

2019 Modern design aluminum yard pathway post top led garden lights



2019 Modern design aluminum yard pathway post top led garden lights

​
