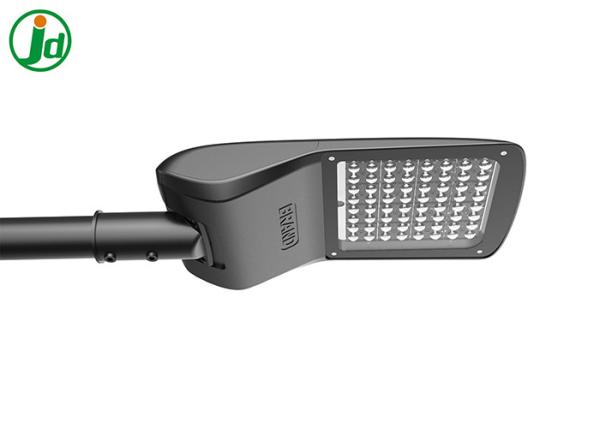

High CRI Aluminum Street Light Built In Integrated LED Module Lighting
High CRI Aluminum Street Light Built In Integrated LED Module Lighting
Specifications
Brand Name :
JD
Model Number :
JD-1053F
Certification :
EMC.LVD.CE.ENEC
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
12days
Packaging Details :
5 layer cartons
Material :
ADC12 casting aluminum
Color :
dark grey/black/white color
Ip rating :
IP67
Cri (ra>) :
80
Input voltage(v) :
100-278VAC
Application :
Roadway,outdoor,
Lamp luminous efficiency(lm/w) :
125
Warranty(year) :
5
Working lifetime(hour) :
50020
Power :
100w
Description

CB CE ENEC TUV pass and Aluminium Die-casting Shell Led Street Light Manufacturers 100w Street Lighting Fixture


NEW types of streetlights, LED streetlights actually offer the potential to control the amount of short-wavelength light that they emit. with benefits ranging from aesthetics to safety. White light sources that contain short wavelengths, for example, can show the colors of objects more naturally, aid in identification of people and objects, improve the contrast between an object and its background, of illuminance that typically characterize street lighting.

Features :

  • Built-in integrated LED module lighting, no need to replace lamp
  • Slip fitter mount, easy to be installed on the light pole
  • Dual stage built-in surge protector 6KV and 10KV
  • Aesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment system
  • IP66 ingress protection to both optical and control gear compartment
  • Tool free mounting with level gradienter, NEMA interface reserved
  • Long maintenace free life, 50,000 hours for whole luminare


Specification :

Model JD-1053A 30W JD-1053B 40W JD-1053C 50W JD-1053D 60W JD-1053E 70W JD-1053F 100W
Wattage 30W 40W 50W 60W 70W 100W
Beam Angle 150*75 140*90 148*60 145*45 145*55 130*90 60*60 90*90 / 150*80 150*50 147*90 158*60 145*60 130*60 120*120 145*30
Luminous Flux 3900lm 4800lm 6500lm 7800lm 9100lm 13000
Color Temperature 2700K~6500K
Input Voltage AC100-277V, 50-60Hz
Life Hours 50,000
LED Chip led/CREE XTE
CRI Ra>80
PF >0.92
Surge Voltage 10V/20KV
IP Rating IP66
Dimension 573*245*120MM 717*320*130MM

Certificate :
CE
CB
ROHS
EMC
LVD
LM79-08
TM-21-11

Product Details :
High CRI Aluminum Street Light Built In Integrated LED Module Lighting
High CRI Aluminum Street Light Built In Integrated LED Module Lighting
Product dimension:
High CRI Aluminum Street Light Built In Integrated LED Module Lighting




Product distribution curve :
High CRI Aluminum Street Light Built In Integrated LED Module Lighting

High CRI Aluminum Street Light Built In Integrated LED Module Lighting

High CRI Aluminum Street Light Built In Integrated LED Module Lighting
High CRI Aluminum Street Light Built In Integrated LED Module Lighting
High CRI Aluminum Street Light Built In Integrated LED Module Lighting
​
