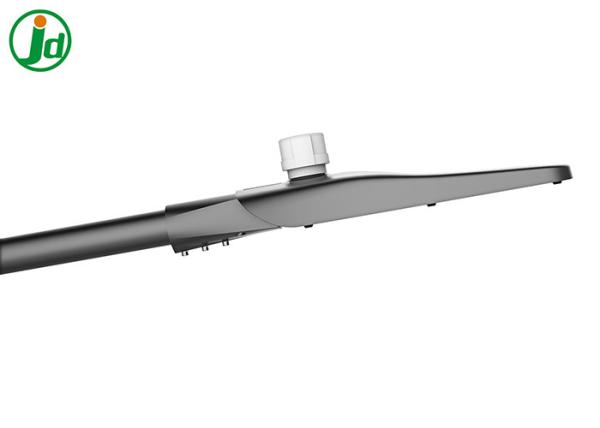

Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector
Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector
Specifications
Brand Name :
JD
Model Number :
JD-1058F
Certification :
EMC.LVD.CE.
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
5000pcs/Month
Delivery Time :
20days
Packaging Details :
5 layer cartons
Ip rating :
IP67
Cri (ra>) :
80
Input voltage(v) :
AC85-265V
Lamp luminous efficiency(lm/w) :
135
Warranty(year) :
7
Working lifetime(hour) :
50010
Power :
60w
Glass :
Toughened Glass
Description

SMD modular LED street lamp 100w 50w street light sensor photocell NEMA connector


We based manufacturer of premium quality LED fixtures, fittings, lamps and direct retrofits. We have over 15 experience in the field of commercial, domestic and industrial lighting.

Certificate :
ISO9001:2015
ISO14001:2015
ISO18001:2007
ISO9227
CE
CB
ROHS
EMC
LVD
LM79-08
TM-21-11

Features :

High quality: Use MeanWell driver, 3030/ CREE XTE leds.
High brightness: 130Lm/W.
Dust and snow proof: Adopt smooth die-cast aluminum housing,successfully prevent
the dust and snow from acumulating on the housing,thus better heat dissipation and
longer life span.

FIXTURE DATA:
CREE LED Street Light
Power: 100Watt
Photocell Sensor
Natural White 4000K 5000k 6000K
5 Year Warranty
Pole & Wall Mounted
More function available: Photocell,NEMA smart control system,Lora smart control system.

Specification :

Model JD-1058A 30W JD-1058B 40W JD-1058C 50W JD-1058D 60W JD-1058E 70W JD-1058F 100W
Wattage 30W 40W 50W 60W 70W 100W
Beam Angle 150*75 140*90 148*60 145*45 145*55 130*90 60*60 90*90 / 150*80 150*50 147*90 158*60 145*60 130*60 120*120 145*30
Luminous Flux 3900lm 4800lm 6500lm 7800lm 9100lm 13000
Color Temperature 2700K~6500K
Input Voltage AC100-277V, 50-60Hz
Life Hours 50,000
LED Chip led/CREE XTE
CRI Ra>80
PF >0.92
Surge Voltage 10V/20KV
IP Rating IP66
Dimension 580*246*90MM 656*290*90MM

Product Details :
Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector
Product dimension:

Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector


Product distribution curve :

Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector


Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector

Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector
Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector
Surface Mount Modular LED Street Light 100W 50W Photocell Sensor NEMA Connector
​
