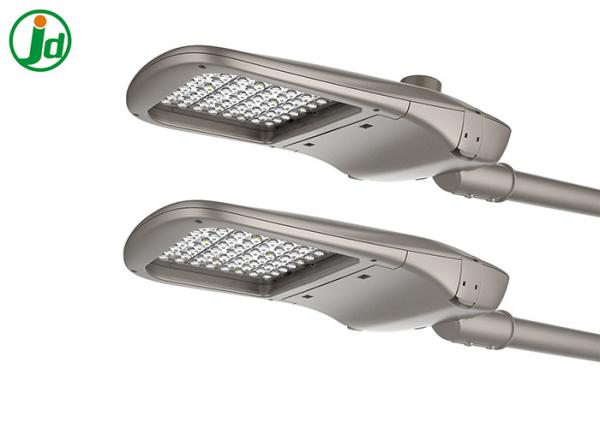

Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Specifications
Brand Name :
JD
Model Number :
JD-1047G
Certification :
EMC.LVD.CE.CB
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000pcs/Month
Delivery Time :
15-30days
Packaging Details :
5 layer cartons
Material :
ADC12 die cast aluminum
Color :
grey/dark grey/black
Ip rating :
IP66
Working temperature(℃) :
-45-55
Cri (ra>) :
75
Input voltage(v) :
100-240VAC
Application :
Roadway,outdoor,garden
Lamp luminous efficiency(lm/w) :
130
Warranty(year) :
5
Working lifetime(hour) :
50010
Description

IP66 high quality SMD 120W 150W 200W waterproof led street lights

Materials
Housing:ADC12 die-cast aluminum
Cover:Toughened cambered/flat glass
Screws:304 stainless screws

Electrial (upon request)
Class I or Class Ⅱ(upon request)
Input voltage:90-305VAC/50-60Hz,170-3055VAC/50-60Hz
10KV/20KV SPD(upon request)
Power automatically switch off when opening

Dimming(upon request)
Dali
1-10V
PWM
Astro DIM for autonomous dimming with five independent levels
Smart control management system

Certificate :
ISO9001:2015
ISO14001:2015
ISO18001:2007
ISO9227

CE CB ROHS EMC LVD LM79-08 TM-21-11

Features :

1. Super bright: >130 lm/w.
2. Long working life: >50000hours.
3. Energy saving: save 75% energy than the traditional street light.
4. Enviromental Protection:No IR or UV.
5. Excellent heat Dissipation, No Flashing, No Noise.
6. Long warranty time: 5 Years Guarantee.

Specification :

ModelJD-1047A 30WJD-1047B 40WJD-1047C 50WJD-1047D 60WJD-1047E 70WJD-1047F 100WJD-1047G 120WJD-1047H 150WJD-1047I 200W
Wattage30W40W50W60W70W100W120W150W200W
Beam Angle150*50/120*120
Luminous Flux3900lm4800lm6500lm7800lm9100lm1300015600lm19500lm26000lm
Color Temperature2700K~6500K
Input VoltageAC100-277V, 50-60Hz
Life Hours50,000
LED Chip led/CREE XTE
CRIRa>80
PF>0.92
Surge Voltage10V/20KV
IP RatingIP66
Dimension573*245*120MM717*320*130MM867*392*159MM

Product Details :
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Product dimension:

Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life

Product distribution curve :

Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life

Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
Surface Mount IP66 LED Street Light 120W 150W 200W Long Working Life
​
