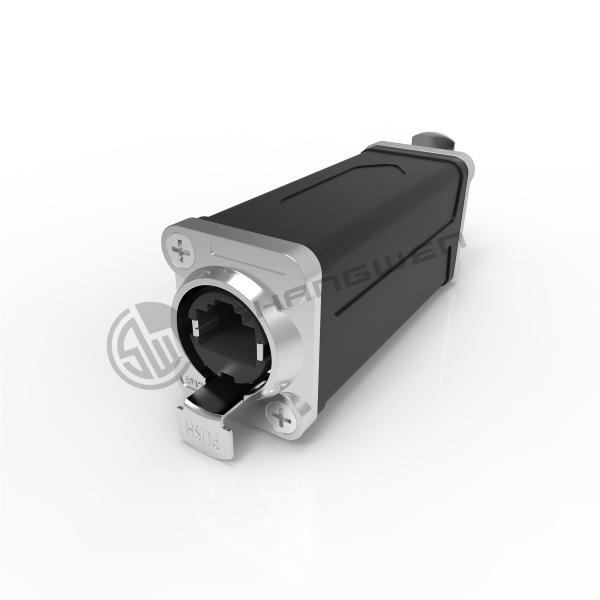

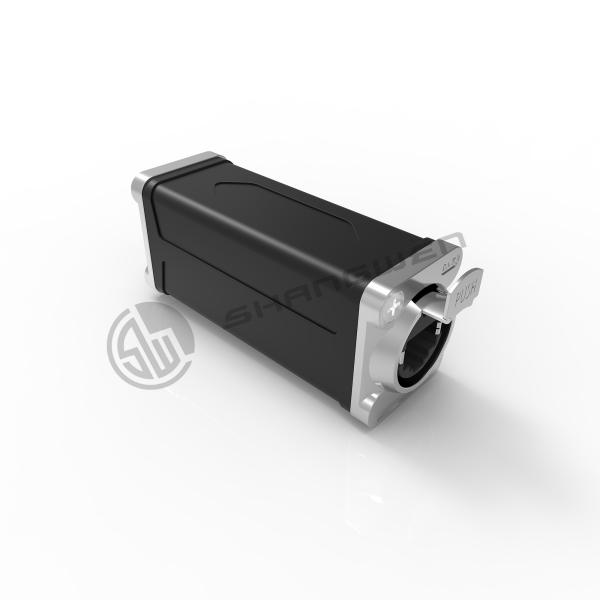

Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
Indoor signal adapter
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$3.20/pieces 2-99 pieces
Name :
Signal Connector Accessories
Type :
Adapter
Industrial electronics :
accessories
Dielectric strength :
1 kVdc
Gender :
Female
Rated voltage :
< 50 V
Description

Indoor Latch Lock System Rj45 Plug Adapter Female Signal Connector For Cable

1. Product parameters
Connection Type
Coupler (adapter)
Gender
Female
2. Electrical parameters
Contact resistance
< 10 mΩ
Dielectric strength
1 kVdc
Frequency Range
1 - 100 MHz
Insulation resistance
> 0.5 GΩ
Rated current per contact
1,5 A
Rated voltage
< 50 V
Standards compliant
TIA/EIA 586B, IEC11801
3. Mechanical parameters
Insertion force
≤ 20 N
Pull out force
≤ 20 N
Service life
> 1000 mating cycles
Locking device
Latch lock
4. Material and environmental parameters
Contacts
Bronze (CuSn8)
Contact plating
0.2 µm Au over Ni plating
Inner core
PBTP 15 % GR
Shell
AlMgSi 0.5, black plated
Clamping sleeve
CuZn35Pb2, tinned
Flammability
UL 94 HB
Temperature range
-30 °C to +80 °C

Products Description
etherCON feedthrough coupler for cable to cable extensions
Female Power Signal Connector Accessories Rj45 Plug Adapter
Indoor signal adapter connector
☑ Accommodates NE8MC* or any standard RJ45 plug
☑ NE8FF coupler (adapter) for cable to cable mating – use with NE8MC carriers or any standard RJ45 plug
☑ Approved latch lock system
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
5.Assembly reference
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Female Power Signal Connector Accessories Rj45 Plug Adapter
Application area
Shangwen electronics has excellent engineering creation team, market operation team, modem manufacturing workshop, strict qulity supervision system and fast storage and logistics facilities. Over the years, the products have been widely used in LED display, lighting equipment, engineering machinery equipment and etC.We will continue to develop into a world-renowned brand in the connector industry.
Female Power Signal Connector Accessories Rj45 Plug Adapter
Company Information
Female Power Signal Connector Accessories Rj45 Plug Adapter
Patent & Certification
Female Power Signal Connector Accessories Rj45 Plug Adapter
Exhibition activities
Female Power Signal Connector Accessories Rj45 Plug Adapter
Packaging reference
Female Power Signal Connector Accessories Rj45 Plug Adapter
Payment and logistics
Female Power Signal Connector Accessories Rj45 Plug Adapter
