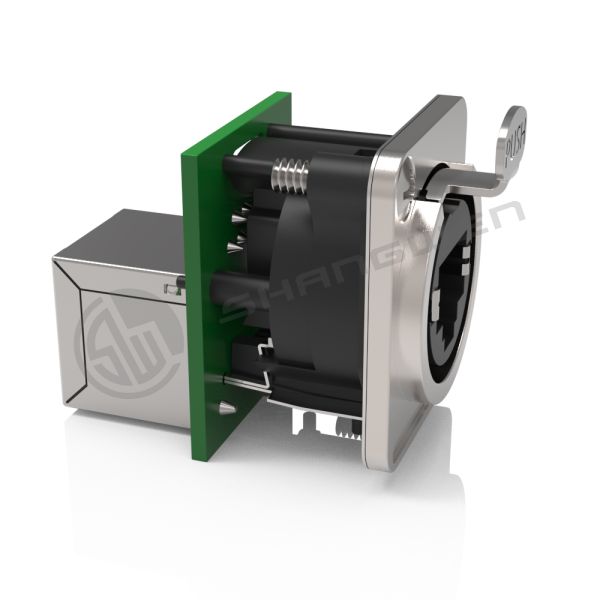

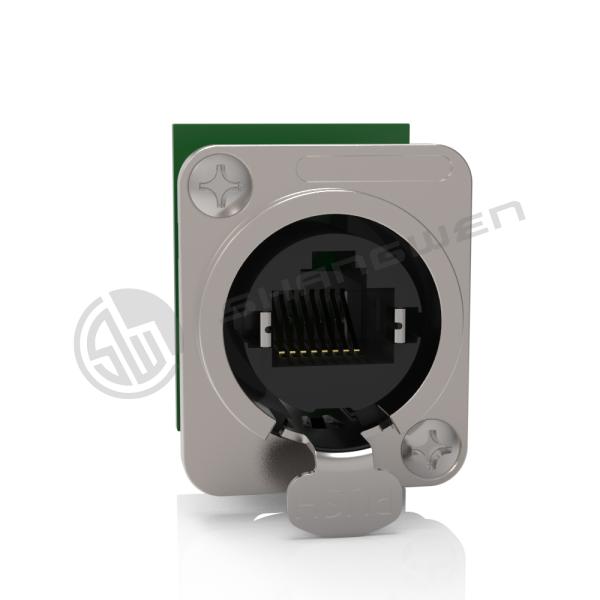

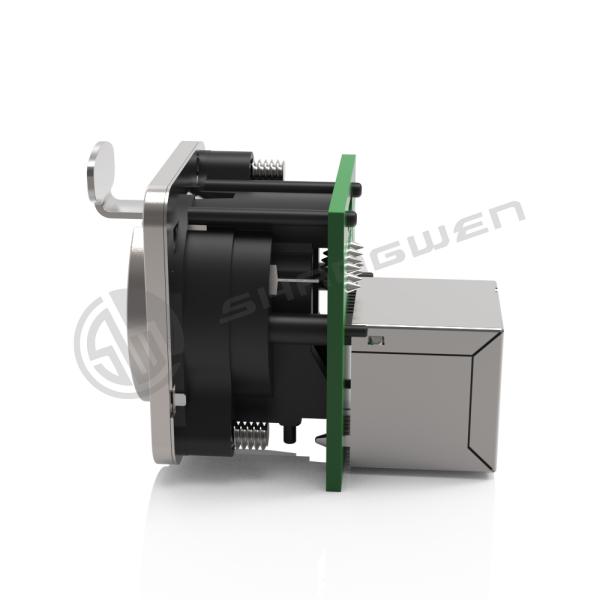

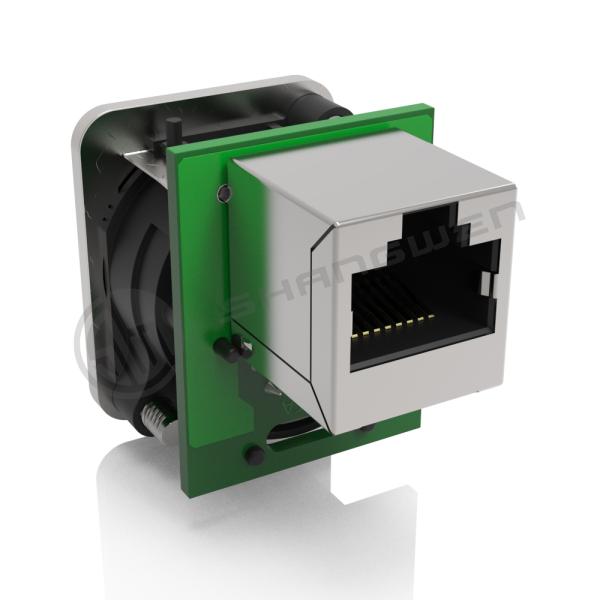

Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW8FD-NGH
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.00/pieces
Name :
Cat 5e Rj45 Ethernet Chassis Connector
Type :
RJ45 socket
Application :
Ethernet
Gender :
Female
Industrial electronics :
accessories
Feature :
Waterproof
Description
China Wholesale Indoor Cat 5e Chassis D Shape Panel Rj45 Signal Connector For Network
Products Description

Signal connector series-RJ45 connector

One of the standout features of this safety lock is its ability to be seamlessly integrated with RJ45 bases, providing a highly convenient and efficient installation process. Unlike traditional locks, which often require specific mounting panels, this lock offers a versatile solution that can be easily incorporated into equipment of varying thicknesses, eliminating any limitations.

Not only does this safety lock excel in its practical functionality, but it also enhances the overall aesthetics of your setup. Its fashionable and stylish design adds a touch of sophistication to your professional equipment, making it stand out in any environment.

Whether you're in the audio, video, lighting, or other network-related industries, this safety lock offers a unique and distinctive solution that sets it apart from conventional locking mechanisms. With its rocket-inspired design, it brings a refreshing and innovative approach to equipment security, providing a reliable and visually striking option for safeguarding your valuable gear.

Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
1. Electrical parameters
Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
＞1000 mating cycles
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D style
3. Material and environmental parameters
Shell
Zinc diecast
Contacts
Bronze
Insert
PBT
Contact surface
Au
Shell surface
Ni
Temperature range
-30℃to +80℃
4. Standard
Standard
TIA/EIA586B,IEC11801

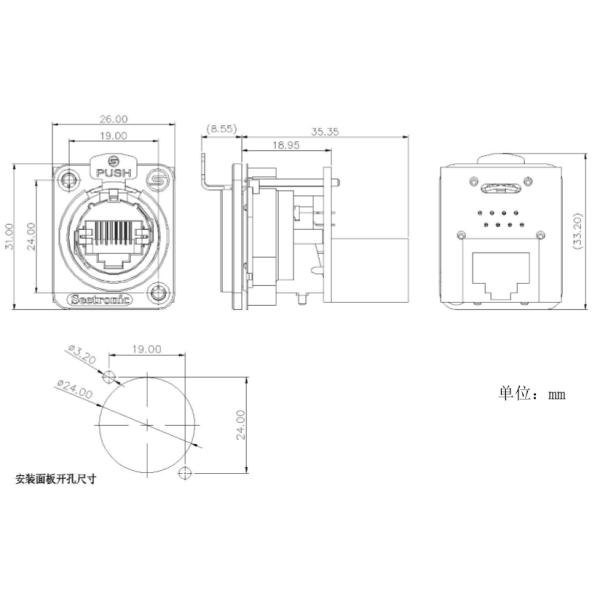

4.Size reference (unit /mm)
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
5.Internal structure reference
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
6. Installation instructions with SW8MC-A plugs
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Application area
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Company Information
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Patent & Certification
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Exhibition activities
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Packaging reference
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
Payment and logistics
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
FAQ
Cat 5e Rj45 Ethernet Chassis Connector D Shape Panel Industrial
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
