Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Indoor Rj45 Ethernet Chassis Connector Socket D Shape Panel CAT5\6
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW8FD-NGX
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.00/pieces
Type :
RJ45 socket
Application :
Ethernet
Gender :
Female
Industrial electronics :
accessories
Name :
Ethernet Chassis Connector
Feature :
Waterproof
Description

Indoor Use D-shape Panel Welding Way Cat 5e Chassis Socket Rj45 Signal Connector

Products Description

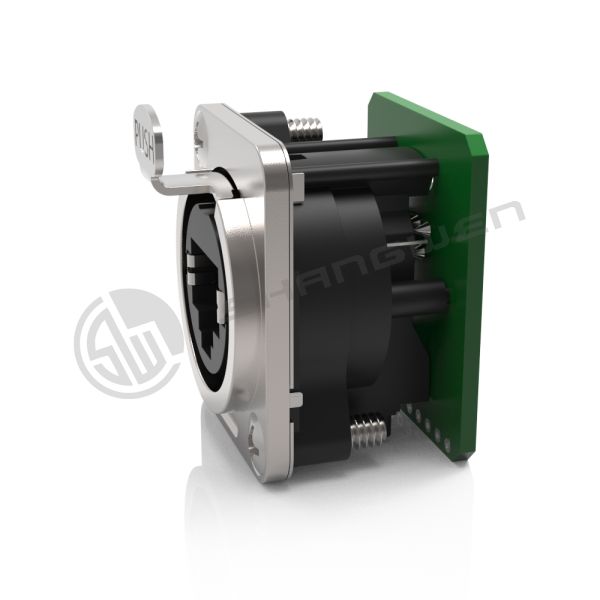

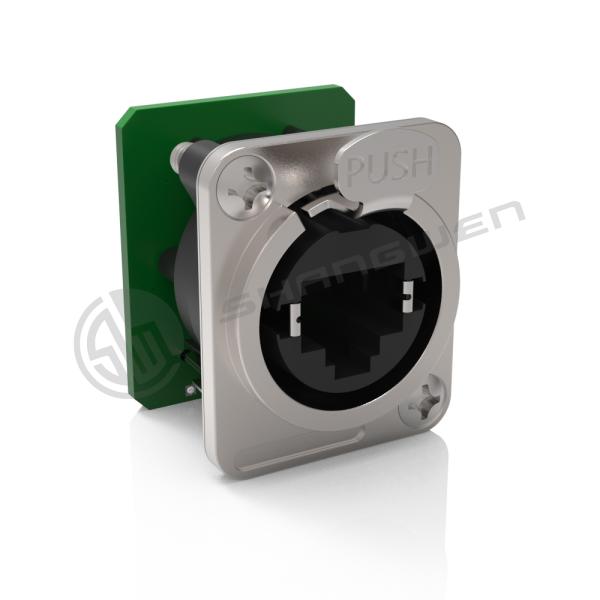

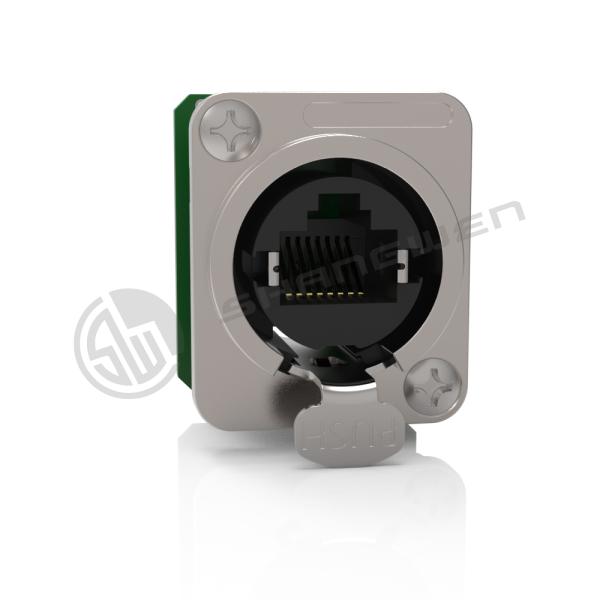

Introducing the SW8FD-NGH (indoor use) model, a high-quality panel connector designed with a D-shape and a uniform metal flange, adhering to standard D-style installation size.

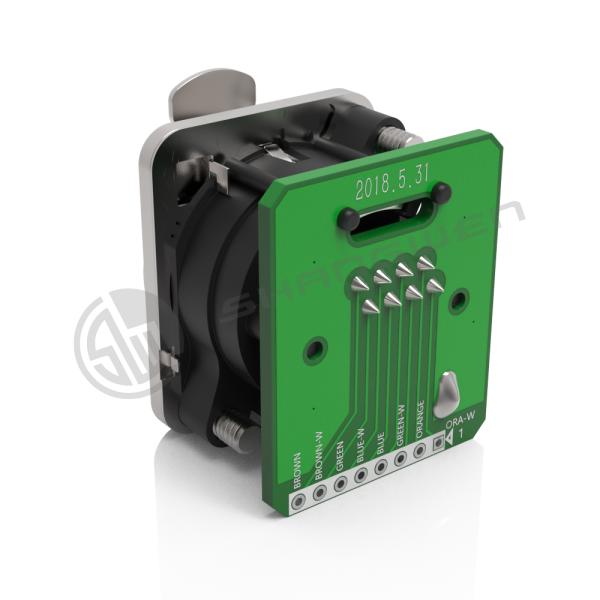

This connector offers a convenient installation process as it can be easily mounted from the rear of the panel. With a feedthrough RJ45 at the rear end, it provides seamless connectivity for your networking needs.
One of the notable features of the SW8FD-NGH model is its versatility. It can be mounted either from the front or rear of the panel, providing flexibility in your installation setup. Additionally, this connector complies with CAT 5e standards according to TIA/EIA568B and ISO/IEC11801, ensuring reliable and efficient data transmission.
With its user-friendly design and adherence to industry standards, the SW8FD-NGH model offers a dependable and efficient solution for your indoor networking requirements. Its D-shape panel connector, uniform metal flange, and compatibility with CAT 5e standards make it a reliable choice for a wide range of applications.
