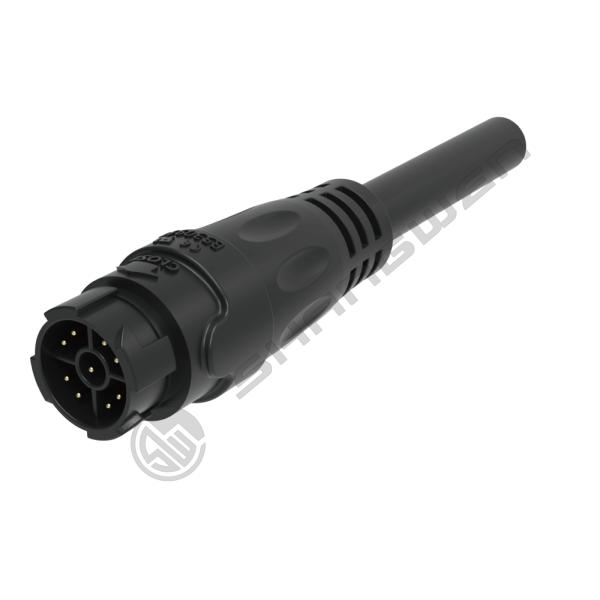

Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW19-9JSZ
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.20/pieces 2-99 pieces
Name :
9 Pin Waterproof Connector
Type :
SW19 Self-locking series
Gender :
Male socket
Industrial electronics :
accessories
Features :
Push-pull Self-locking Connection
Multiple Cores :
2,3,4,5,6,9,3+9 pin support
Application :
Industrial
Description

Factory Sales 9 Pin Male Socket Connector Industrial Ip67 Waterproof Connector

Products Description
1. IP67 M19 connector 2-pin plug fusion cable.
2. You can connect male to female. You can also use 1m or other length of wire to customize the extension cable (one side is a female waterproof plug; the other is a female waterproof plug).
3. Can provide colors and materials, and terminal processing.
4. Professional R & D team can help customize the project.
5. Can provide you with customized solutions.

SW19 Self-locking series-9 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
Model : SW19-9JSZ (9 pin male socket)

☑Connect reliably

☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67

☑Quick, simple self locking system
☑Small size of product

Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
1. Electrical parameters
Contacts NO.
9 pin
Rated current
5A
Rated voltage
60V AC
Withstand voltage
125V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3. Material and environmental parameters
Shell
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ1.0mm
Protection degree
IP67
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃
4. Size reference (unit /mm)
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Waterproof gasket
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
5. Operating reference
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector
