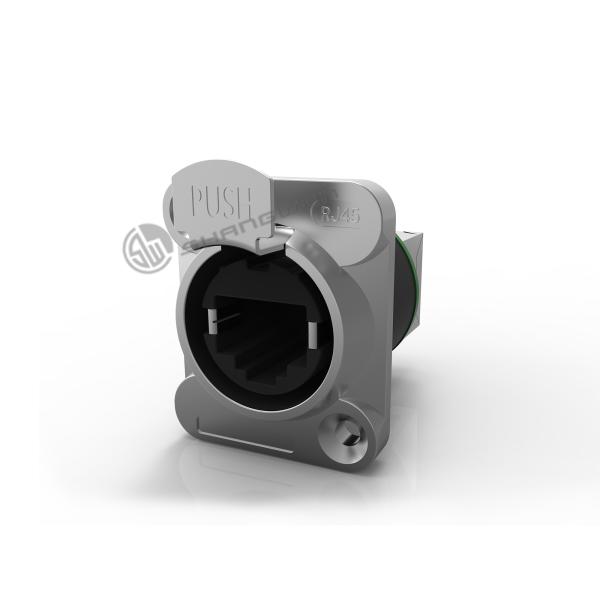

Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW8FDNV
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.00 - $2.90/pieces
Name :
Audio Ethernet Chassis Connector
Type :
RJ45 socket
Gender :
Female
Industrial electronics :
Accessories
Feature :
Waterproof
Application :
Ethernet
Description

Crystal Socket Ethernet Rj45 8 Pin Connector 90 degree Indoor Signal Female Connector For Led Screen IP44

Application

industrial, medical, communication, automation

Model:SW8FDNV(indoor use)

*The rear end has a 90°RJ45 crystal socket, and the mouth direction is opposite to the button direction*

☑The back-end can be flexibly modified according to actual requirements

☑Accommodates SW8MC-A or any standard RJ45 plug

☑D style with uniform metal flanges

☑Complies with Cat5e according to TIA / EIA 568B and ISO / IEC 11801 standard

☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E

☑With shielding function

☑Approved latch lock system

☑Mountable from the front or rear of the panel

Products Description
Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector

Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector

1. Electrical parameters

Contact resistance
＜10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
Cat 5E
2. Mechanical parameters
Service life
＞1000 times
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D style
3. Material and environmental parameters
Shell
Zinc diecast
Contacts
Bronze
Insert
PBT
Contact surface
Au
Shell surface
Pearl Cr
Temperature range
-30℃to +80℃
Level of protection
IP44

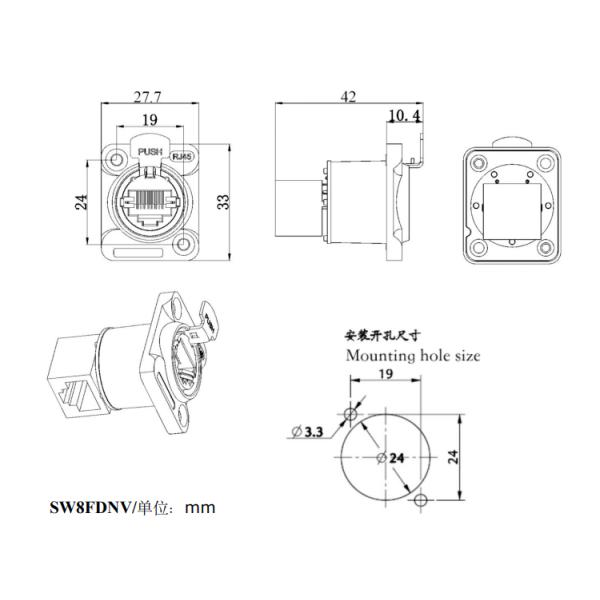

4.Size reference (unit /mm)
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
5.Internal structure reference
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
6. Installation instructions with SW8MC-A plugs
Audio Ethernet Chassis Connector Electrical Rj45 8 Pin Connector
FAQ
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
3. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
4. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
