Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW19-12JSFT
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.20/pieces 2-99 pieces
Name :
Small M19 Connector
Application :
Industrial
Gender :
Male
Industrial electronics :
accessories
Features :
Push-pull Self-locking Connection
Type :
SW19 Self-locking series
Multiple Cores :
2,3,4,5,6,9,3+9 pin support
Description

Environmental M19 Male Plug 3 Holes 9 Pin Industrial Connector With CE FCC

Model : SW19-12JSFT (3+9 pin male plug)

☑Adopt one key press button locking method,plug and play,fast and convenient;

☑Protection level: used in outdoor scenes, protection level up to IP67

☑Precision waterproof design,with high waterproof level,no fear of wading environment;

☑Adopt high-strength structural materials, pressure-resistant structure design,can

withstand greater vibration and shock.

☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal

transmission and electrical conductivity

☑Multi-style inner core design to meet the needs of various industries

☑Precision waterproof design,with high waterproof level,no fear of wading environment;

☑Adopt high-strength structural materials, pressure-resistant structure design,can

M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
1. Electrical parameters
Contacts NO.
3+9 pin
Rated current
5A
Rated voltage
60V AC
Withstand voltage
125V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3. Material and environmental parameters
Shell&insulated parts
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ1.0mm
Protection degree
IP67
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃

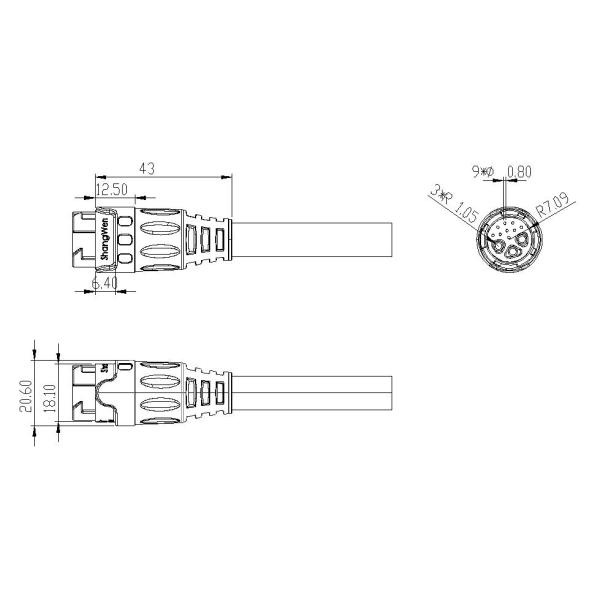

4. Size reference (unit /mm)
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
5. Operating reference
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Application area
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Company Information
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Patent & Certification
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Exhibition activities
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Packaging reference
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Payment and logistics
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
FAQ
M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
