IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW19-4KST
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.20/pieces 2-99 pieces
Name :
Stable 4 Pin IP67 Power Connector
Type :
SW19 Self-locking series
Gender :
Female
Industrial electronics :
accessories
Features :
Quick, simple self locking system
Application :
Industrial
Multiple cores :
2,3,4,5,6,9,3+9 pin support
Description

Factory Sales M19 Series Quick Self Locking System Industrial 4 Pin Female Plug Connector

Products Description

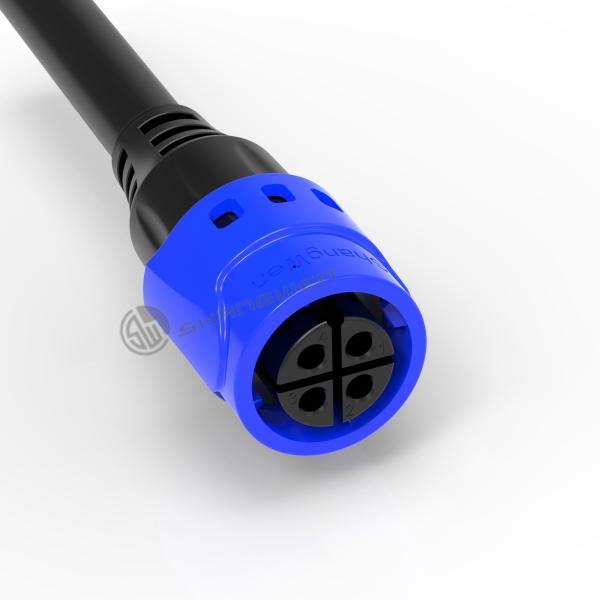

SW19 Self-locking series-4 Pin connector

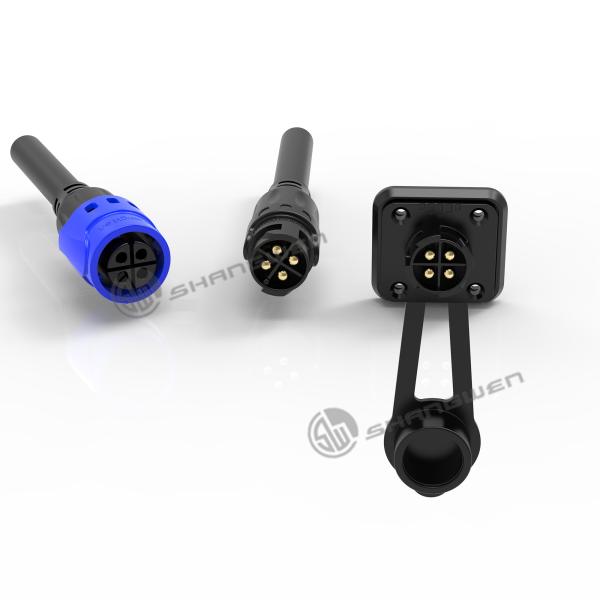

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:

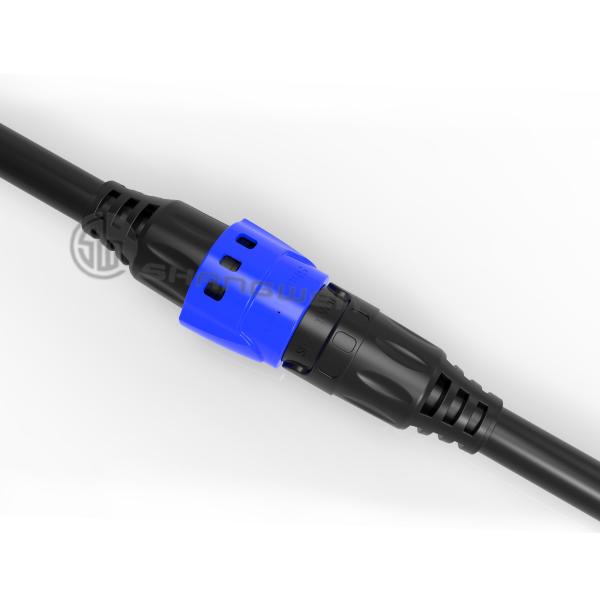

1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

Product features

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 36 pins could be choosed

3) Contact pin: Screw cable,soldering cup and crimp available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Black,blue,white and yellow color supported

6) Different cable length could be customized

1. Electrical parameters
Contacts NO. 2+PE
Rated current 20A
Rated voltage 250V AC
Contact resistance ≤5mΩ
Dielectric strength 4000V DC
Insulation resistance ＞1000MΩ
2. Mechanical parameters
Service life ＞1000 times
Power line 2.5mm²(8mm - 12mm)
Wire stripping length 7-8mm
Type of teminals Screw type clamping units solder termination

3. Material and environmental parameters

Shell PA
Contacts Cu alloy
Contact surface Ag
Flame-retardant grade UL94-V0
Protection grade IP44
Temperature range -30°C to +80°C
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
IP67 M19 Connector 4 Pin Waterproof Female Connector For industrial Solder Cable
