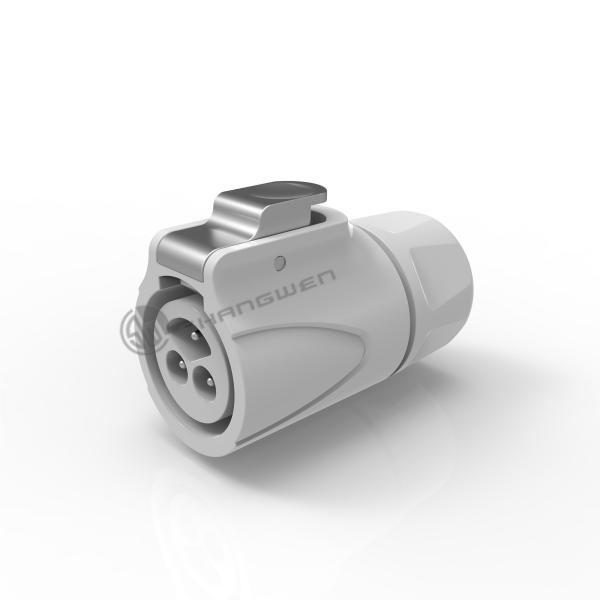

High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3AJ-T
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$1.60 - $2.80/pieces
Name :
High Power Male Female Connector
Application :
Power
Gender :
Male
Industrial electronics :
accessories
Type :
LED Display Connector
Multiple cores :
2,3,4,5,6,9,3+9 pin support
Features :
Quick, simple self locking system
Description

Outdoor Ip65 Ip67 Waterproof Button Locking Method 3 Core Female Male Power Connector

Products Description
Power connector series-3 core male powercon(card buckle type)
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
Model : SW3AJ-T ( outdoor use-white )
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑Black and white in two colors
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Multi-style inner core design to meet the needs of various industries
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor

Size reference (unit /mm)

High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor

Installation reference drawing

High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
Application area
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
Company Information
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
Patent & Certification
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
Exhibition activities
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
Packaging reference
High Power Male Female Connector IP65 IP67 3 Core Waterproof Connector Outdoor
