Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW19-2JL-T
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.20/pieces 2-99 pieces
Name :
2 Pin IP67 Power Connector
Application :
Industrial
Industrial electronics :
accessories
Multiple cores :
2,3,4,5,6,9,3+9 pin support
Features :
Quick, simple self locking system
Gender :
Male
Type :
M19 Screw tooth series
Description

New Industrial Waterproof Screw Tooth Series Plastic Wrap Male Plug M19 Connector

Products Description

SW19 Screw tooth series-2 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.

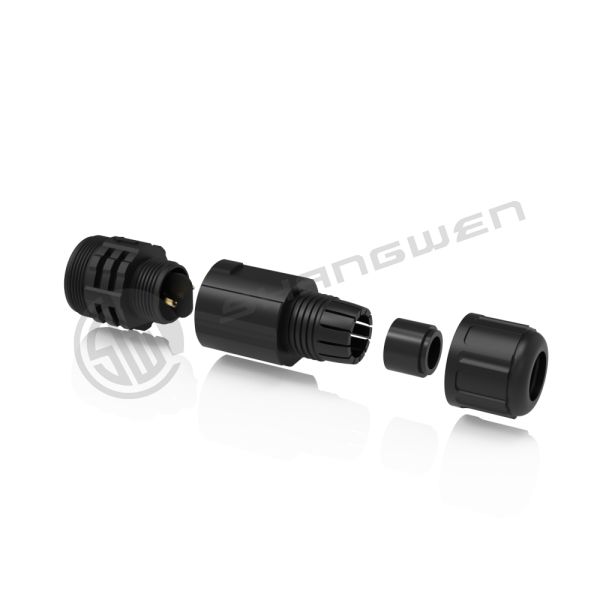

Model : SW19-2JL-T (2 pin male plug)

☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios

☑ Contact pin: Screw cable,soldering cup and crimp available

☑ Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

☑ Black,blue,white and yellow color supported

☑ Different cable length could be customized

☑Quick, simple self locking system
☑Connect reliably
☑Waterproof rating IP67

☑ Advanced structure: Self-locking

Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
1. Electrical parameters
Contacts NO.
2 pin
Rated current
20A
Rated voltage
300V AC
Withstand voltage
1500V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Type of terminals
Screw terminal and soldering terminal available
3. Material and environmental parameters
Shell
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ2.4mm
Protection degree
IP67
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃
4.Size reference (unit /mm)
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
5.Operating reference
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC

FAQ
Small 2 Pin IP67 Power Connector Industrial Screw Tooth Series FCC
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
