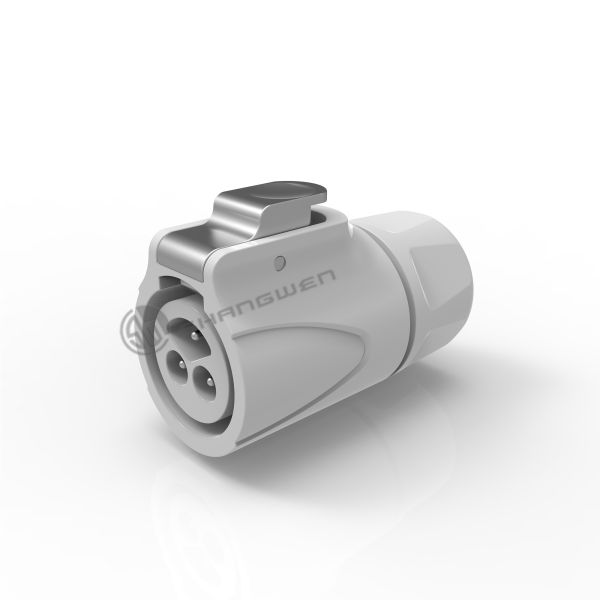

White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3AJ-T
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$1.60 - $2.80/pieces
Name :
IP67 Power Connector Plug
Application :
Power
Gender :
Male
Industrial electronics :
accessories
Multiple cores :
2,3,4,5,6,9,3+9 pin support
Type :
led display connector
Features :
Quick, simple self locking system
Description

High Quality White Shell Moisture Proof Dustproof Waterproof Power Connector Plug

Model : SW3AJ-T ( outdoor use-white )
☑ Adopt one key press button locking method,plug and play,fast and convenient;
☑ Black and white in two colors
☑ Multi-style inner core design to meet the needs of various industries
☑ Connection mode:
☑ Precision waterproof design,with high waterproof level,no fear of wading environment;
☑ Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑ High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
1. Screw clamping and welding
2. Lock the cable with screws
☑ The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑ The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑ Protection level: used in outdoor scenes, protection level up to IP65/IP67

Products Description
Power connector series-3 core male powercon(card buckle type)

This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!

• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

• Protect from dust and water during immersion, resistant to many oils and chemicals.

• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

• Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation

application.

• 100% new material, high-quality parts, strictly QC standard according to international customers.

White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
1. Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²-4mm²
Wire stripping length
7-8mm
Type of terminals
Soldering
3. Material and environmental parameters
Shell&insulated parts
PBT
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4. Size reference (unit /mm)
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
5. Installation reference drawing
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
Application area
White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
