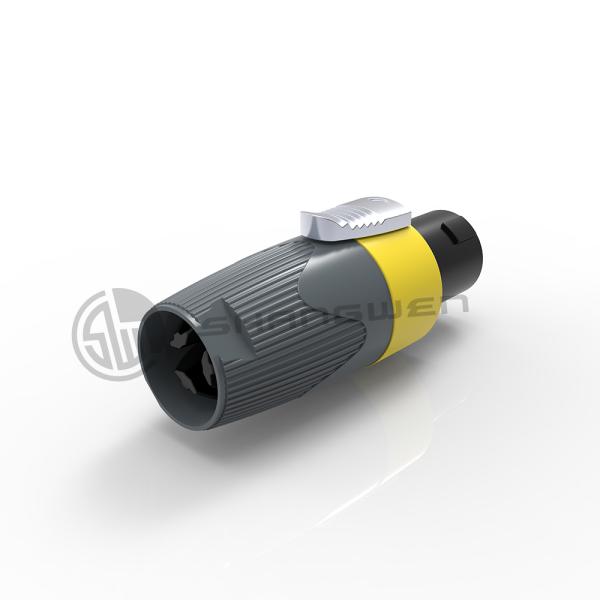

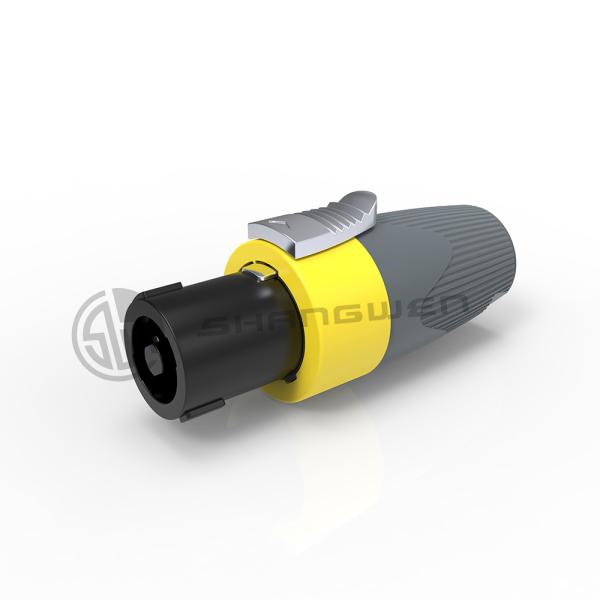

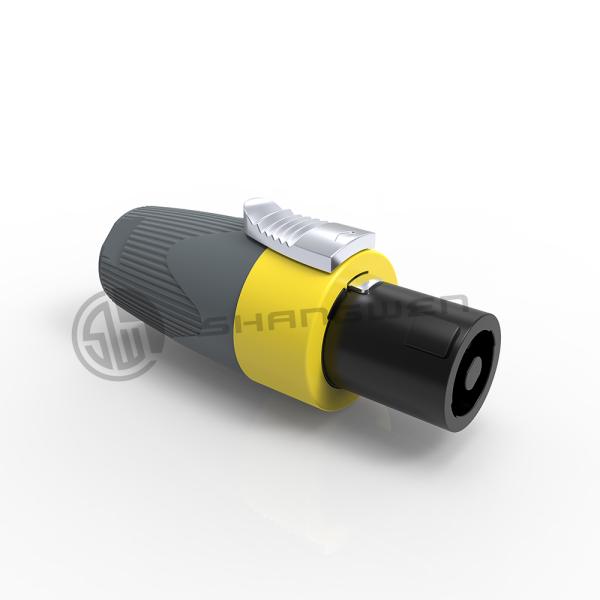

Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW4SFT-J
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$3.00/pieces 2-99 pieces
Type :
Loudspeaker
Application :
Audio & Video
Gender :
Female
Industrial electronics :
accessories
Description

Round Panel 50 A Audio Signal Female Plug Loudspeakers Plastic Connector 4 Pin

Products Description
4Pin Loudspeaker plug -engineering plastics material
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Model:SW4SFT-J
☑Current rating 40 A rms continuous
☑Up to 50 A audio signal, duty cycle 50%
☑Only 3 parts, easy to assemble
☑High impact materials - long-lasting and reliable ☑Easy and extremely precise locking system "Quick Lock ☑Improved grip on latch ☑1 piece strain relief, chuck for 7 to 14.5 mm cable O.D. ☑Improved screw-type termination for highest pull-out force
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
1.Product parameters
Connection Type
Speaker
Gender
Female
2.Electrical parameters
Contact resistance
＜2mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
40A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
7-14.5mm
Cable retention
≥220N
Service life
＞5000 mating cycles
Wire size
4 mm²/6mm²
Wire size
12AWG/10AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Insert
PBTP 20% GR
Shell
PBTP 20% GR
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
6.Assembly reference
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Application area
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Company Information
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Patent & Certification
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Exhibition activities
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Packaging reference
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
Payment and logistics
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
FAQ
Audio Signal Loudspeaker Connector Female Plug 4 Pin Plastic Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
