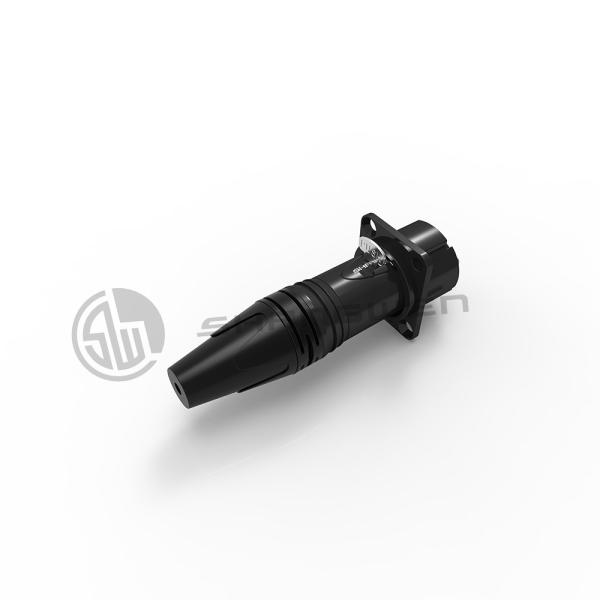

Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
4 pin male plug
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$1.07/pieces 2-99 pieces
Type :
XLR 4 Pin Male Female Connector
Gender :
Male
Industrial electronics :
accessories
Feature :
Waterproof IP65
Wire diameter range :
5-8mm
Application :
Audio & Video
Description

Wholesale Custom Indoor 3.5-8mm Wire Diameter Female Male Plug Socket Xlr 4 Pin Connector

Products Description
XLR connector-4 pin male plug

The 4-pin male XLR connector plug is a commonly used audio connector known for its robustness and versatility. Here are its key features:

Durable Construction: The connector is built with high-quality materials, typically featuring a sturdy metal shell that provides excellent durability and resistance to wear and tear.

Balanced Audio Transmission: The 4-pin XLR connector supports balanced audio signals, ensuring efficient and reliable transmission with reduced noise and interference.

Secure Connection: It features a locking mechanism that securely fastens the connector to the corresponding female socket, preventing accidental disconnections during use.

Versatile Application: This XLR connector is widely utilized in professional audio and sound reinforcement systems, including microphones, mixers, amplifiers, and audio interfaces.

Pin Configuration: The 4-pin male XLR connector has four pins arranged in a circular pattern within the connector body. These pins allow for the transmission of balanced audio signals, typically including two signal pins, a ground pin, and an additional pin that can be used for various purposes such as power supply or control signals.

Compatibility: The 4-pin male XLR connector is designed to be compatible with corresponding 4-pin female XLR connectors, ensuring seamless integration and compatibility within audio systems.

Reliable Signal Transfer: The connector's design and construction minimize signal loss and interference, enabling high-quality audio transmission even over long cable runs.

Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Model:SW4XMT-B (Black)
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated,the shell plating black
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Protection class IP40
☑Wire diameter range: 3.5-8mm
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
4 pin male socket
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
4 pin male socket
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
4 pin female plug
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
4 pin female plug
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
4 pin female socket
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
4 pin female socket
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 1.5GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
3.5-8mm
Insertion force
≤ 40N
Withdrawal force
≤ 40N
Service life
＞1000 mating cycles
Wire size
Max. 1.5 mm²
Wire size
Max. 16 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
TPU
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr Black
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP40
Temperature range
-20℃to +80℃
5.Size reference (unit /mm)
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
6.Assembly reference
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Application area
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Company Information
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Patent & Certification
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Exhibition activities
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Packaging reference
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
Payment and logistics
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
FAQ
Indoor Custom XLR 4 Pin Male Female Connector Plug Socket Zinc Alloy Shell
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
