SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW4SFT-M
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$3.20/pieces 2-99 pieces
Type :
Loudspeaker
Application :
Audio & Video
Gender :
Male
Industrial electronics :
accessories
Description

Ip54 Waterproof Extremely Rugged 4pin Loudspeaker Plug Metal 4 Pin Connector

Products Description

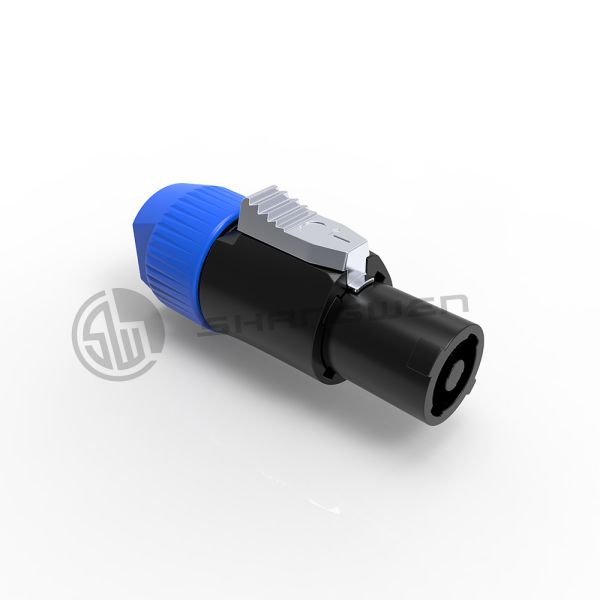

4Pin Loudspeaker plug-Metal material
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Model:SW4SFT-M
☑The extremely rugged metal case and fiberglass reinforced V-0 material inner core are designed for harsh environments
☑Sophisticated "quick lock" system
☑A large welding contact is attached, suitable for lines up to 6mm²(AWG10)
☑Equipped with internal gasket, protection class up to IP54 in connection state
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
1.Product parameters
Connection Type
Speaker
Gender
Female
2.Electrical parameters
Contact resistance
＜2mΩ
Dielectric strength
2.8kVac
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Sign Cable O.D.
9-16mm
Service life
＞5000 mating cycles
Wire size
6 mm²
Wire size
10AWG
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Insert
Polyamide (PA 66 )
Shell
Zinc diecast,Nickel plating
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 V-0
Protection class
IP54
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector

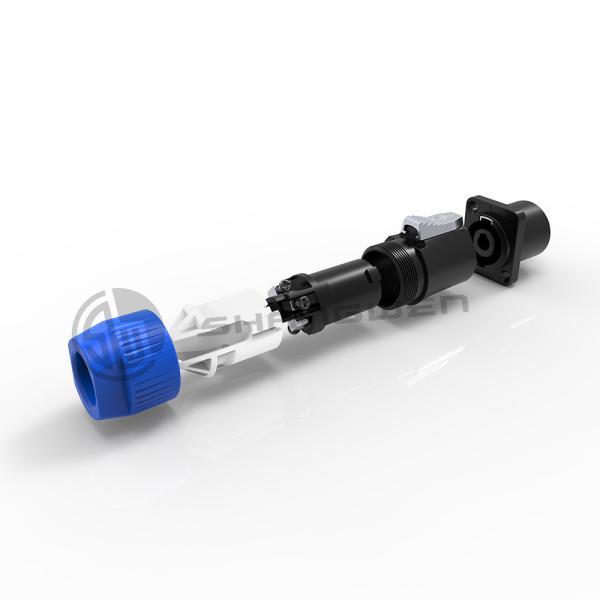

6.Assembly reference
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Application area
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Company Information
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Patent & Certification
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Exhibition activities
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Packaging reference
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
Payment and logistics
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
FAQ
SpeakerON Loudspeaker Connector Ip54 Waterproof 4 Pin Plug Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
