7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
5 pin male plug
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$1.84/pieces 2-99 pieces
Type :
Waterproof XLR connector-5 pin male plug
Application :
Power
Gender :
Male
Industrial electronics :
accessories
Feature :
Waterproof IP65
Wire diameter range :
5-8mm
Description

Outdoor 5-8mm Wire Diameter Ip65 Waterproof Silver Male Plug 5 Pin Xlr Audio Connector

Products Description
Waterproof XLR connector-5 pin male plug

Waterproof 5-pin male XLR connector plug offers a durable, secure, and waterproof solution for audio connections in wet or outdoor environments. Its waterproof design, robust construction, secure locking mechanism, and balanced audio transmission make it an ideal choice for reliable audio connectivity under challenging conditions.

1. Waterproof Design

2. Robust Construction

3. Secure Locking Mechanism

4. Balanced Audio Transmission

5. Versatile Application

6. Pin Configuration

7. Compatibility

8. Reliable Signal Transfer

7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio

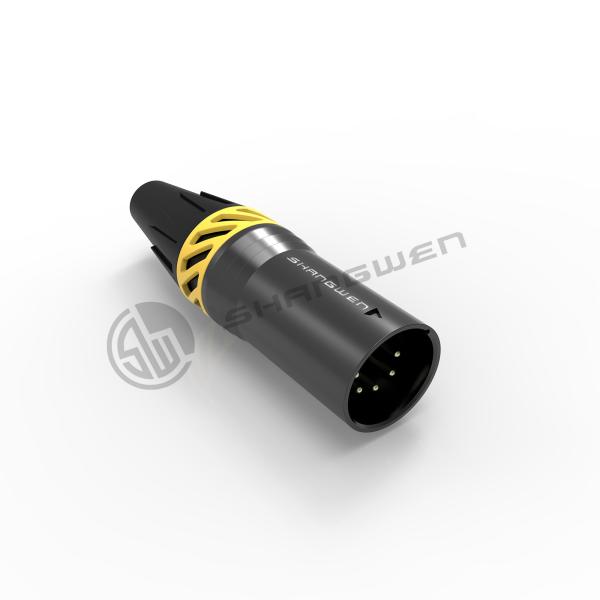

Model:SW5XMT-F-B (Black)

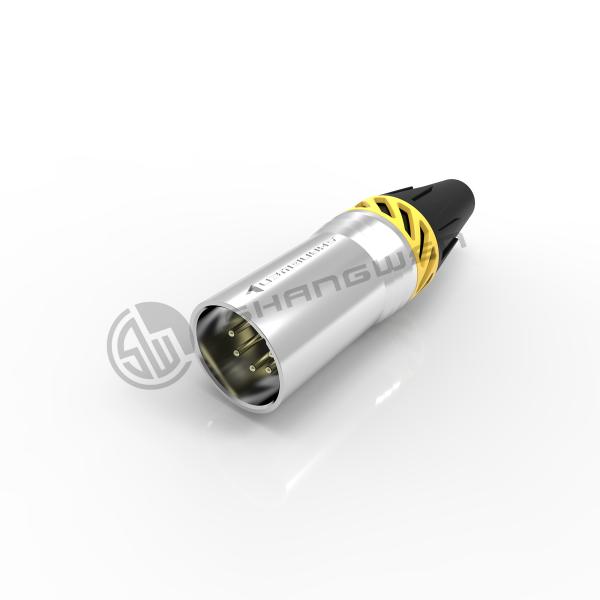

SW5XMT-F(Silver)
☑One hand can operation, push the button to pull it out
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
1.Product parameters
Connection Type
XLR
Gender
Male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤3mΩ
Dielectric strength
1.5kVdc
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Sign Cable O.D.
5-8mm
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Wire size
Max. 1.0 mm²
Wire size
Max. 18 AWG
Locking device
Latch lock
4.Material and environmental parameters
Boot
Polyurethan
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Strain relief
Polyacetal (POM)
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
6.Assembly reference
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Application area
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Company Information
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Patent & Certification
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Exhibition activities
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Packaging reference
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
Payment and logistics
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
FAQ
7.5A XLR Connector 5 Pin Waterproof IP65 Silver Male Plug For Audio
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
