Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3MPB1-W
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$1.40 - $2.60/pieces
Name :
3 Pin Female Connector
Type :
led display connector
Application :
Power
Gender :
Female
Industrial electronics :
accessories
Description

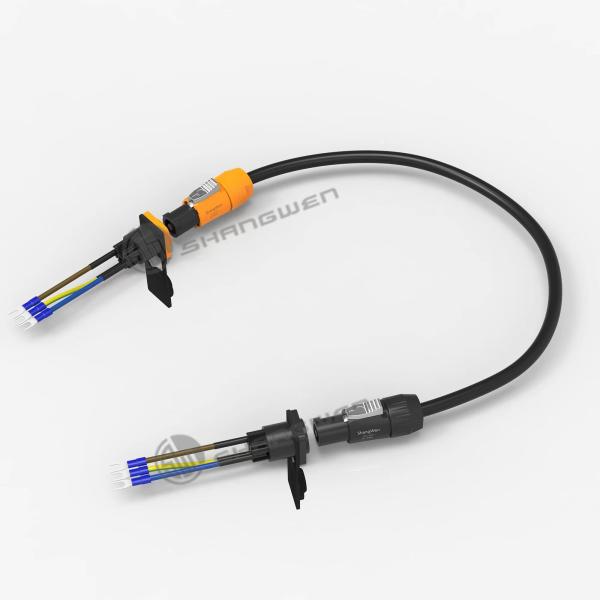

Black Output Powercon Connector Outdoor Use 3 Pin Led Ip65 Female Power Connector

Product Advantage:

Cable to cable connectors could be a good option for outdoor indoor electrical power extension, well protect your equipments or lights fixtures, widely used for landscape lights, wall washer bar, led display, industrial equipment or machine.

Products Description

1. Electrical parameters

Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4. Size reference (unit /mm)
Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
5. Installation reference drawing
Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon

Power connector series-female powercon(output port)

This series is widely used in outdoor rental LED display power connection.

The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature

resistance, explosion resistance and corrosion resistance.

The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

Using rotary locking design, easy to operate, stable and reliable !

Patent & Certification

Ip65 3 Pin Female Waterproof Power Connector Black Output Outdoor Powercon
