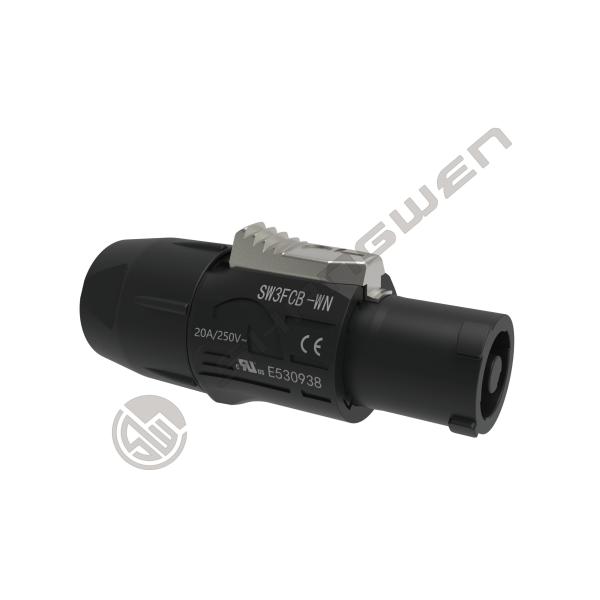

Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3MX-W
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$2.30 - $3.50/pieces
Name :
Waterproof Power Connector
Keywords :
Male And Female Power Connector
Type :
led display connector
Gender :
Female
Application :
Electric vehicle charging / control box
Industrial electronics :
accessories
Description

Yellow Input Black Output Outdoor Ip65 Waterproof Male And Female Power Connector

Model : SW3MX-W ( outdoor use/input port )

☑Use different color design to distinguish signal input and output, yellow input, black output
☑Connect reliably

☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off

☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding

☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug

☑Protection level: used in outdoor scenes, protection level up to IP65
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force

☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws

Products Description
Power connector series-male powercon(input port)

The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
This series is widely used in outdoor rental LED display power connection.
Using rotary locking design, easy to operate, stable and reliable !

1. Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4. Size reference (unit /mm)
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
5. Installation reference drawing
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
Industrial Male And Female Power Connector Waterproof Ip65 Outdoor
