Specifications
Place of Origin :
Guangdong, China
Brand Name :
SHANGWEN
Model Number :
SW3FCB
Packaging Details :
10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)
MOQ :
2 pieces
Price :
$1.10 - $2.00/pieces
Name :
3 Pin Circular Power Connector
Type :
led display connector
Gender :
Male
Industrial electronics :
accessories
Application :
Power
Description

Ip44 Indoor Male Led Display Power Connection Audio Video 3 Pin Power Connectors output port

Products Description
Power connector series-male powercon(output port)
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
This series is widely used in indoor rental LED display power connection.
Using rotary locking design, easy to operate, stable and reliable !
Application
Communications Application
Solar System
Electric power equipment
Outdoor and indoor led lighting
Signal connection
AC electrical power
3 Pin Circular Power Connector Electrical Powercon Male PA6 Material

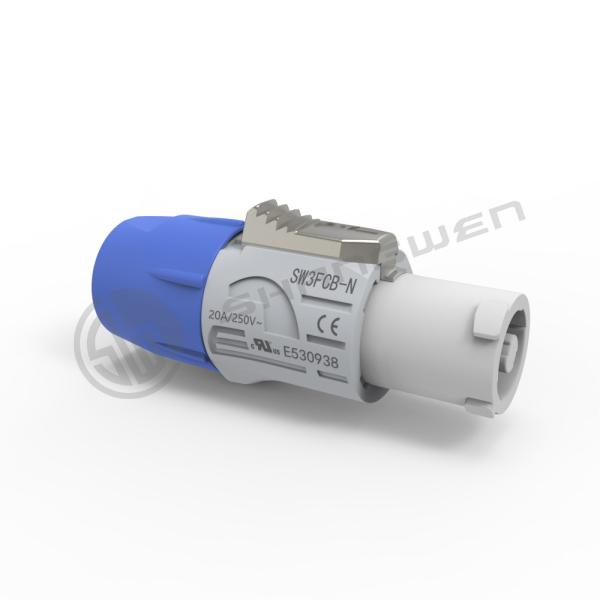

Model:SW3FCB ( indoor use/white output )
☑Use different color design to distinguish signal input and output, blue input, white output
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connect reliably
3 Pin Circular Power Connector Electrical Powercon Male PA6 Material
4. Size reference (unit /mm)
3 Pin Circular Power Connector Electrical Powercon Male PA6 Material
5.Installation reference drawing
3 Pin Circular Power Connector Electrical Powercon Male PA6 Material
