Specifications
Brand Name :
Shang Wen
Model Number :
SW3MPB
Certification :
CQC Rohs UL CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000+pcs+per month
Delivery Time :
5-8 working days
Packaging Details :
Internal blister box 23x23cm External carton 51x26x34cm
Name :
Waterproof Circular Power Connector
Gender :
Male
Connecting Mode :
Fast rotating connection
Feature :
Waterproof
IP Grade :
IP44
Shell Material :
Polyamide
Conductor Material :
Cu Alloy
Type Of Terminals :
3/16" flat tab
Application :
For power connection
Description

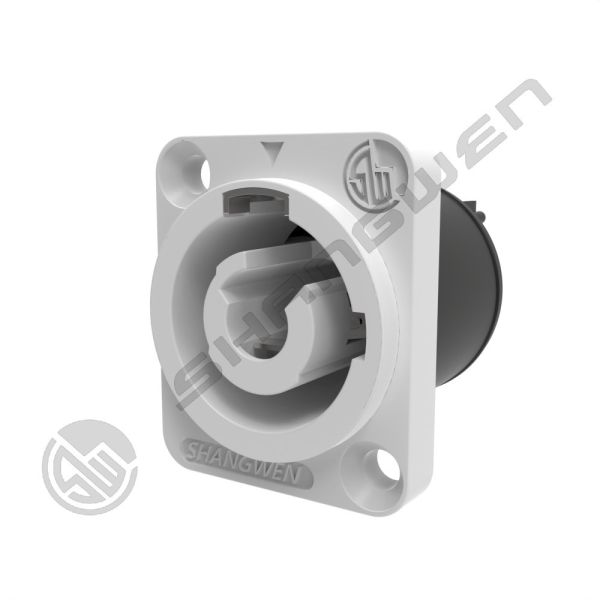

Indoor Use Powercon Chassis 3 Conductor 20A 250V Power-Out 3/16" Flat Tab Terminals White Color For Led Screen Cabinet

Product features


☑ Secure,quick, simple locking system
☑ Connect reliably
☑ Small size of product
☑ Lockable 3 conductor equipment(AC) connector with contacts for line,neutral and pre-mating ground
☑ High current capacity,rated at 20A/250V AC

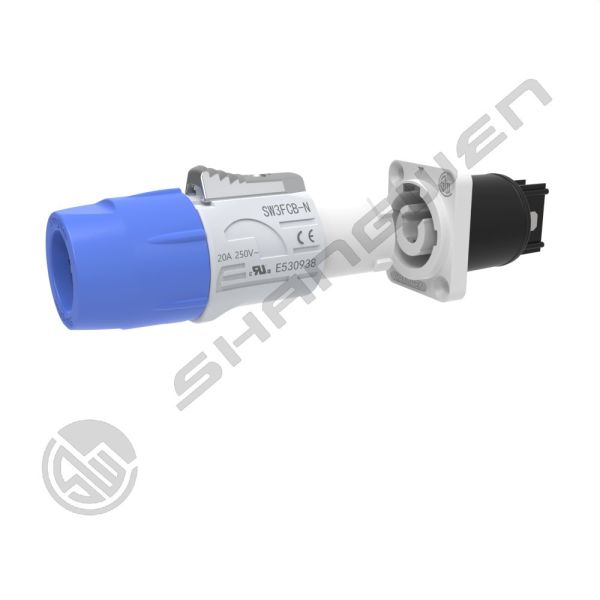

☑ Color coded for easy identification,powercon offers power-in(blue) and power-out(white) versions with different keying to avoid the possibility of intermating

Technical parameters

Electrical parameters

Contacts No. 3
Rated current 20A
Rated voltage 250V AC
Contact resistance ≤5mΩ
Dielectric strength

4000V DC
Insulation resistance

＞1000MΩ


Mechanical parameters

Service life ＞1000 times
Power line 2.5mm²(8mm-12mm)
Wire stripping length 7-8mm
Type of terminals 3/16'' flat tab/solder termination

Material and environmental parameters

Shell PA
Conductor Cu alloy
Conductor surface Ag
Flame-retardant grade UL94-V0
Temperature range -30°C~80°C
IP grade IP44

Product Profile

Industrial Waterproof Circular Power Connector Electrical Powercon
Industrial Waterproof Circular Power Connector Electrical Powercon
Industrial Waterproof Circular Power Connector Electrical Powercon
Industrial Waterproof Circular Power Connector Electrical Powercon
Industrial Waterproof Circular Power Connector Electrical Powercon

Packing
Industrial Waterproof Circular Power Connector Electrical Powercon
