Product Description:

The M19 Connector features solder contact termination, ensuring a secure and reliable connection. This type of termination is commonly used in industrial and commercial applications because it provides a high level of conductivity and ensures a secure, long-lasting connection.

The M19 Connector has a current rating of 15A, which makes it suitable for a range of low to moderate power applications. This rating ensures that the connector can handle a range of electrical loads without any issues.

The M19 Connector is a type of overmolded connector that offers superior protection against environmental factors such as dust, water, and vibration. Overmolding is the process of adding a protective layer of material over the connector body to provide additional protection and durability.

The M19 Connector is a waterproof connector that is designed to prevent water from entering the connector and causing damage to the electrical components. The waterproof feature makes it an ideal choice for applications where water resistance is essential.

The M19 Terminal Connector is widely used in various industrial and commercial applications, including automotive, aerospace, marine, and telecommunications. Its robust design, reliable performance, and waterproof feature make it an ideal choice for harsh environments.

Key Features:

• Protection Level: IP67
• Contact Termination: Solder
• Current Rating: 20A
• Connector Type: Overmolded
• Type: Waterproof Connector

Product Profile

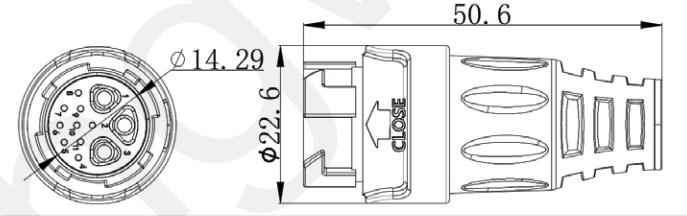

SWM19-12JS-TB 12pin male plug

SWF19-12KS-TBC 12pin female plug

SWM19-12JS-ZB 12pin male socket

Applications:

The M19 Wire Connector is designed to provide a secure and reliable connection for wires. It has a maximum cable OD of 11.5mm and can accommodate up to 12 contacts per connector. The contact resistance of this connector is ≤5mΩ, which ensures a stable and efficient signal transmission.

The M19 Signal Connector is perfect for applications that require a stable and interference-free signal transmission. It has 3 pins per connector and is available in various configurations, making it a versatile choice for different signal applications.

The M19 Cable Connector is commonly used in automotive, industrial, and communications applications. It is designed to withstand extreme temperatures and harsh environments. The connector is easy to install and is suitable for both indoor and outdoor use.

The M19 Connector is available for purchase with a minimum order quantity of 100 pieces. The packaging details include 20pcs per box and 500pcs per carton, with dimensions of 51*26*34cm. The delivery time for this product is 7-10 days, and payment terms are T/T.

Support and Services:

The M19 Connector is a reliable and durable connector solution designed for use in harsh environments. Our technical support and services for this product include:

• Expert technical guidance and consultation to assist with choosing the right connector for your specific application
• Customized connector design and manufacturing services to meet your unique requirements
• Comprehensive testing and quality control measures to ensure the highest levels of performance and reliability
• Timely and efficient delivery of your orders, with flexible shipping and logistics options
• Responsive customer service and support to address any questions or concerns you may have

With our commitment to quality and customer satisfaction, you can trust us to provide the support and services you need to achieve your goals.

Packaging reference

Q: What is the brand name of the M19 Connector product?

A: The brand name of the M19 Connector product is Shangwen.

Q: What is the model number of the M19 Connector product?

A: The model number of the M19 Connector product is SWF19-3XS-TBC.

Q: Where is the M19 Connector product manufactured?

A: The M19 Connector product is manufactured in Shenzhen, China.

Q: What certifications does the M19 Connector product have?

A: The M19 Connector product is certified by CE, UL, CQC, and ROHS.

Q: What is the minimum order quantity for the M19 Connector product?

A: The minimum order quantity for the M19 Connector product is 100.

Q: What is the price of the M19 Connector product?

A: The price of the M19 Connector product is not available.

Q: What are the packaging details for the M19 Connector product?

A: The M19 Connector product is packaged in boxes of 20pcs each, with 500pcs per carton. The carton dimensions are 51*26*34cm.

Q: What is the delivery time for the M19 Connector product?

A: The delivery time for the M19 Connector product is 7-10 days.

Q: What are the payment terms for the M19 Connector product?

A: The payment terms for the M19 Connector product are T/T.
